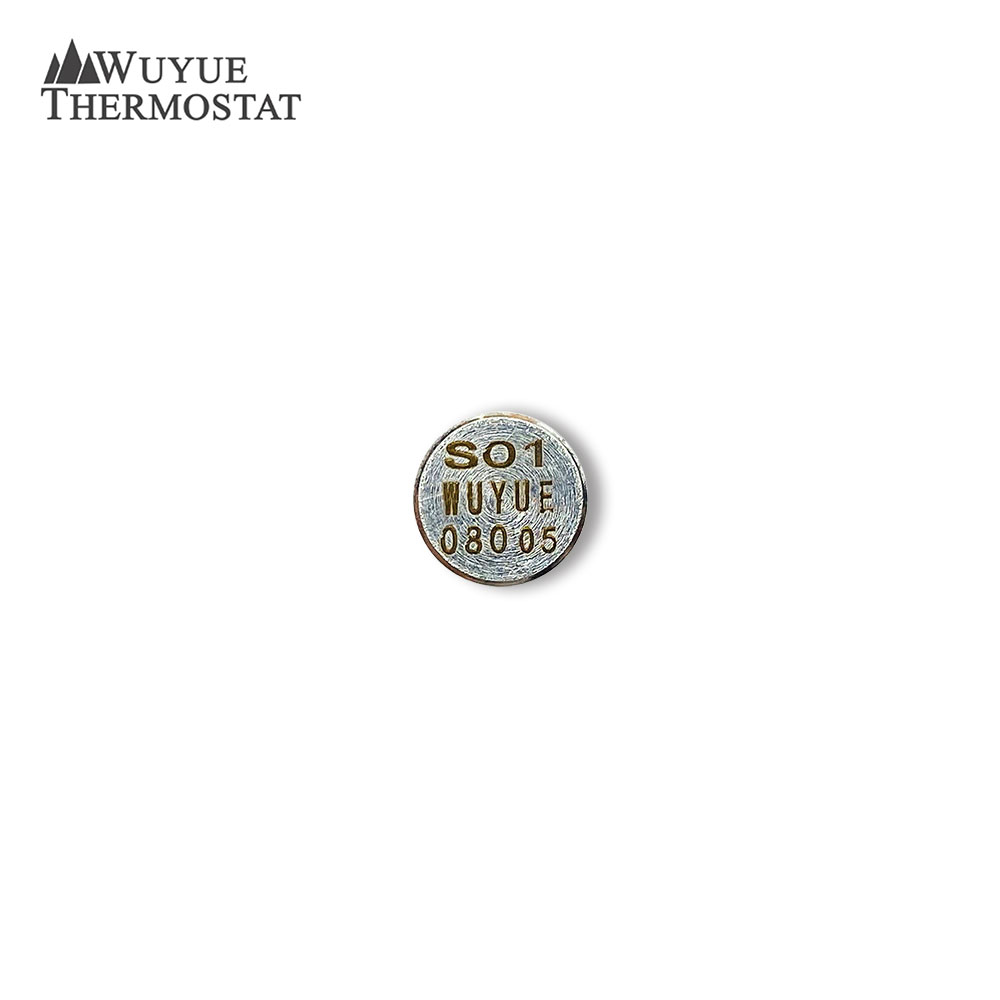

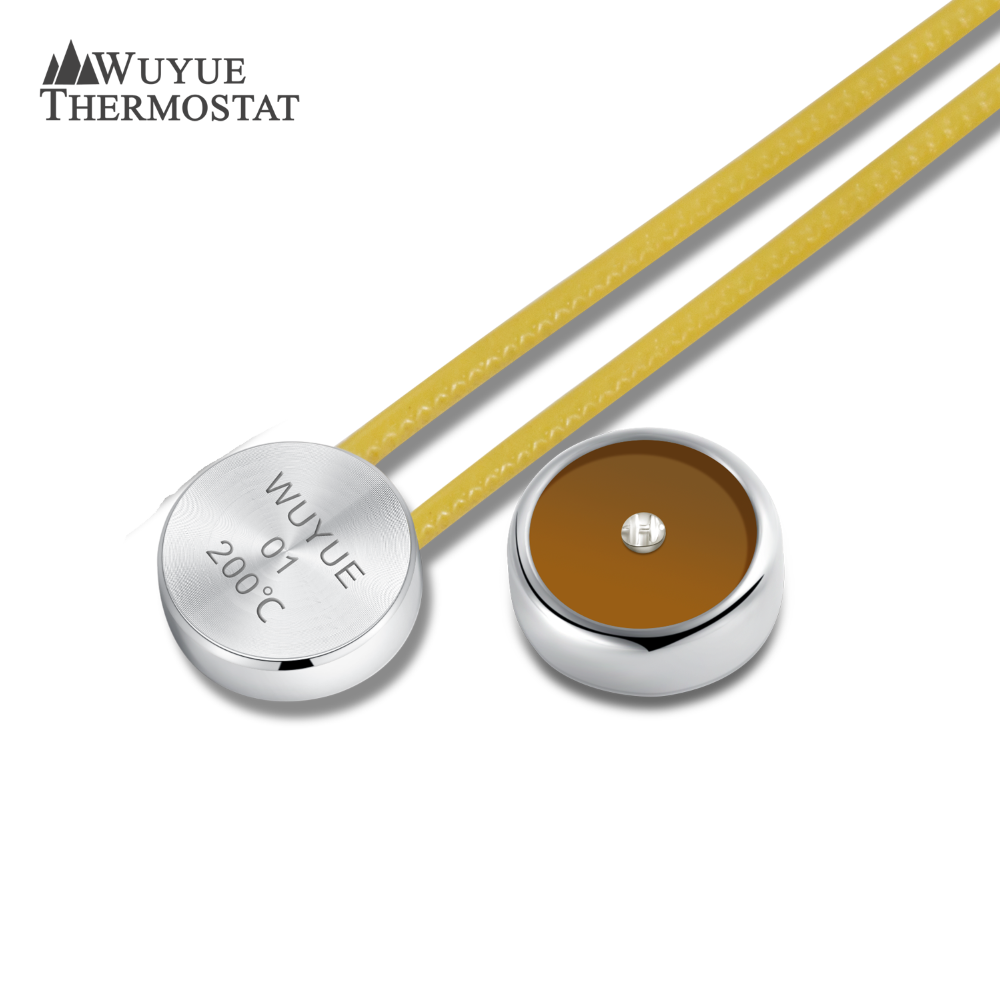

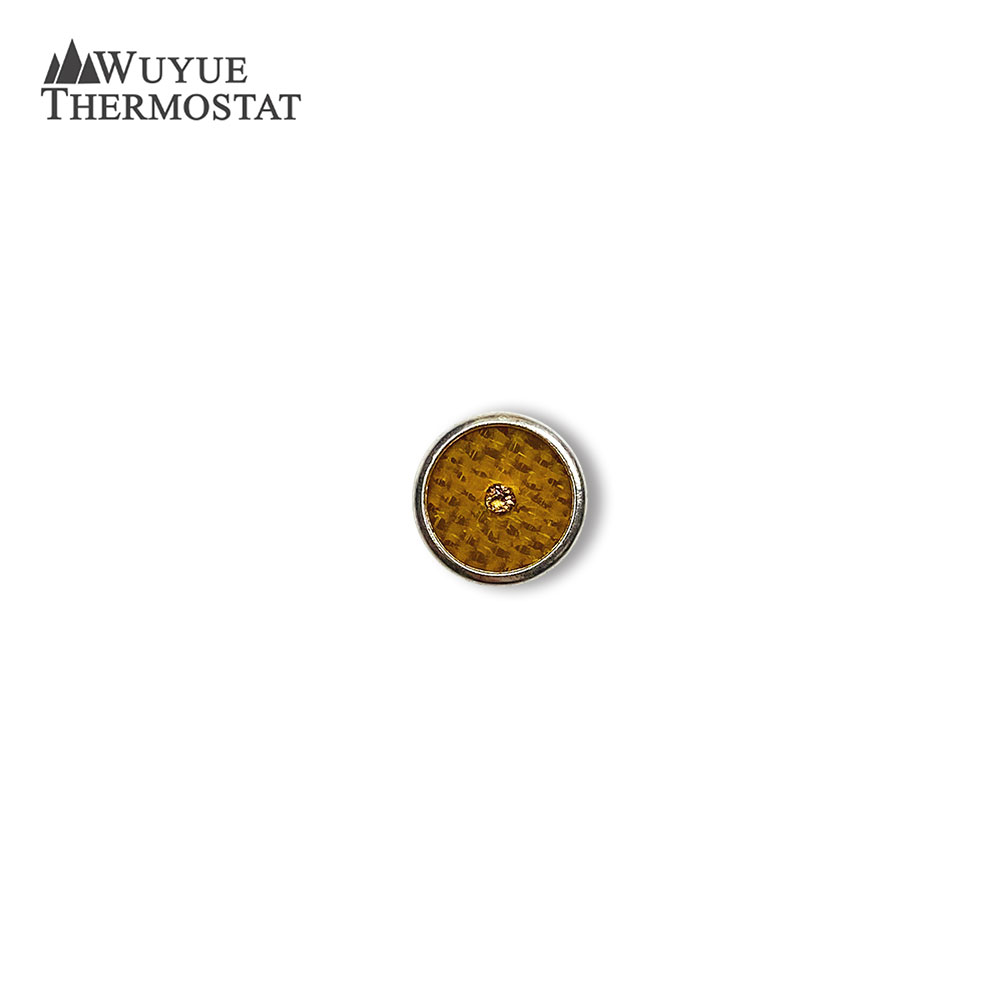

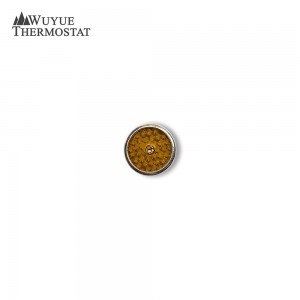

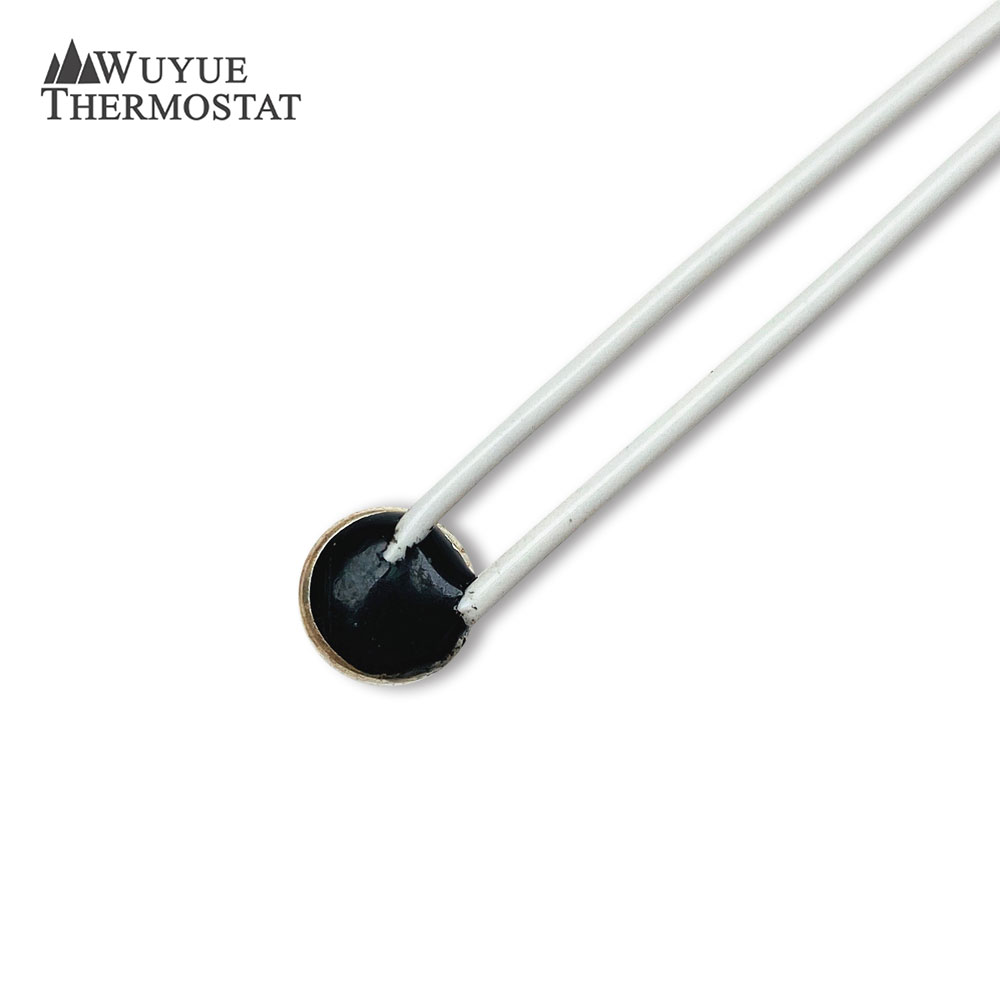

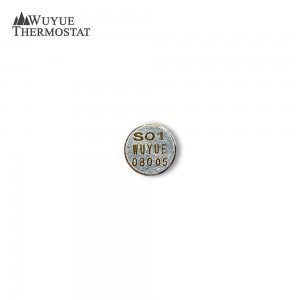

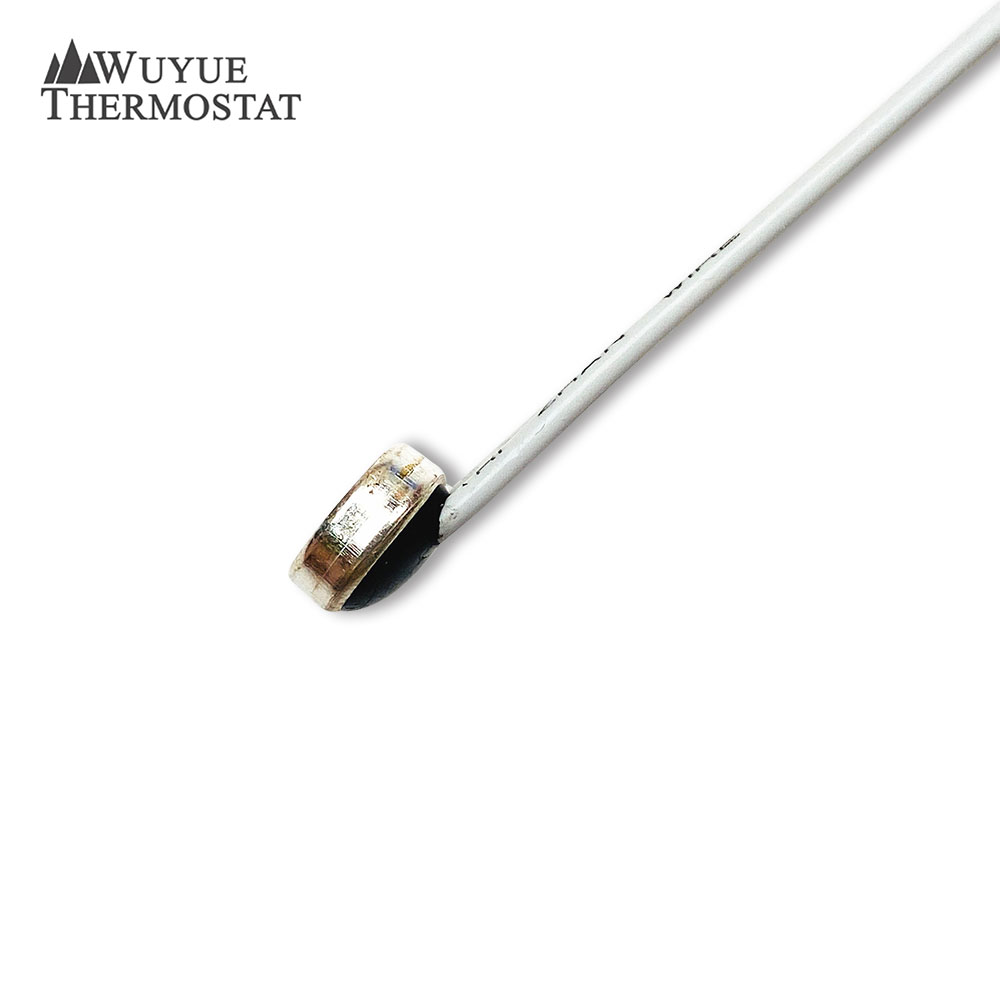

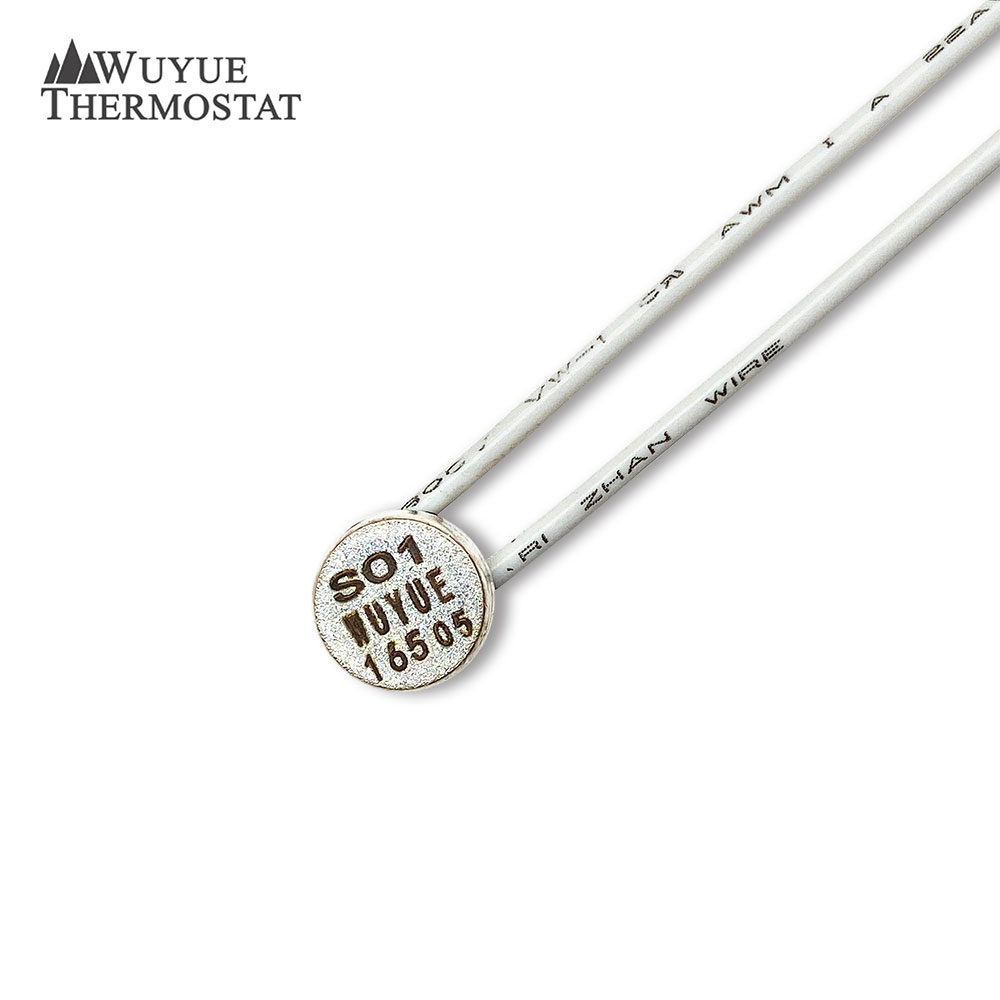

S01 Normal close button type thermostat

Short Description:

TS01 Button type is snap action and bimetallic thermostat, Bimetal trips off or on quickly to open or close the circuit when temperature reaches the prescribed value.




Product Detail

Special Features

Small size and easy for mounting;

Low current sensitivity, no large temperature difference due to over current;

Precise temperature control.

Electrical Specifications

250V AC : 3A          125V AC : 6A          24V DC: 6A

Contact Resistance: <30mΩ

Dielectric Strength: 2KV



Temperature Range and Tolerance

Operating Temperature 60~220℃, A specification for each 5℃
Operating Temperature Tolerance ±5℃
Reset Temperature Less than 1/3 of operating temperature
Reset Temperature Tolerance ±15℃

Application

Transformer            Coil            Curtain Motor            Washing Machine Motor

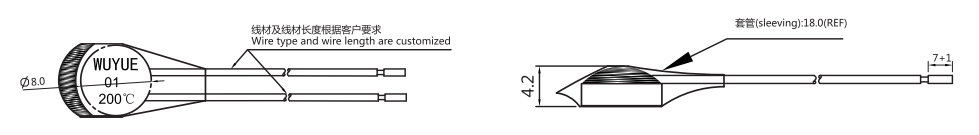

Dimensional Drawing

1628495275(1)

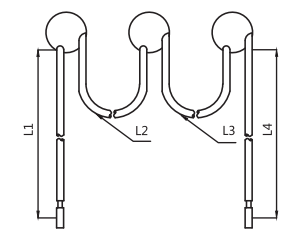

Series Application

1628495360(1)
