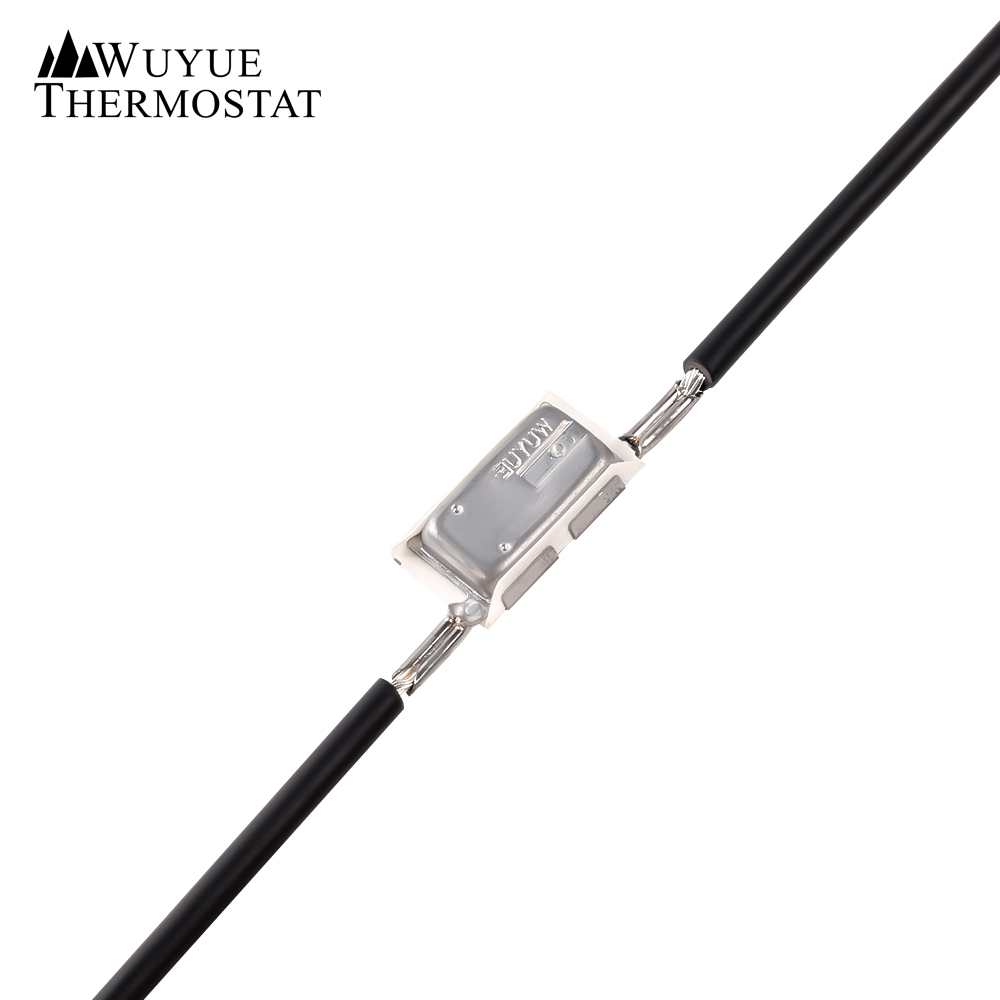

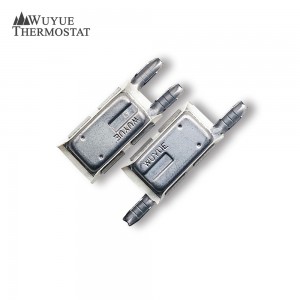

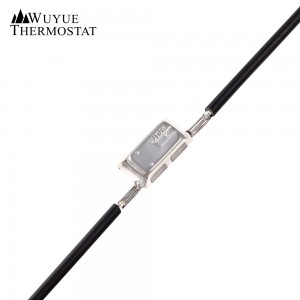

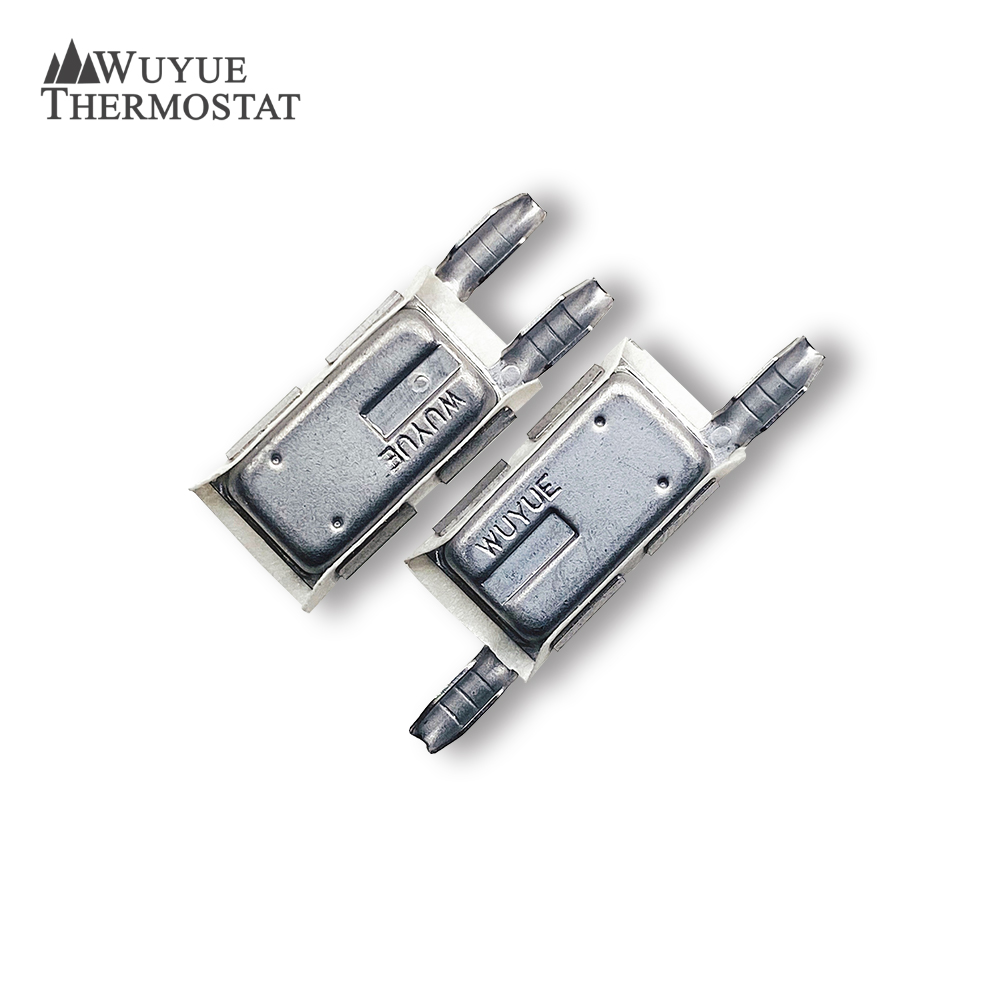

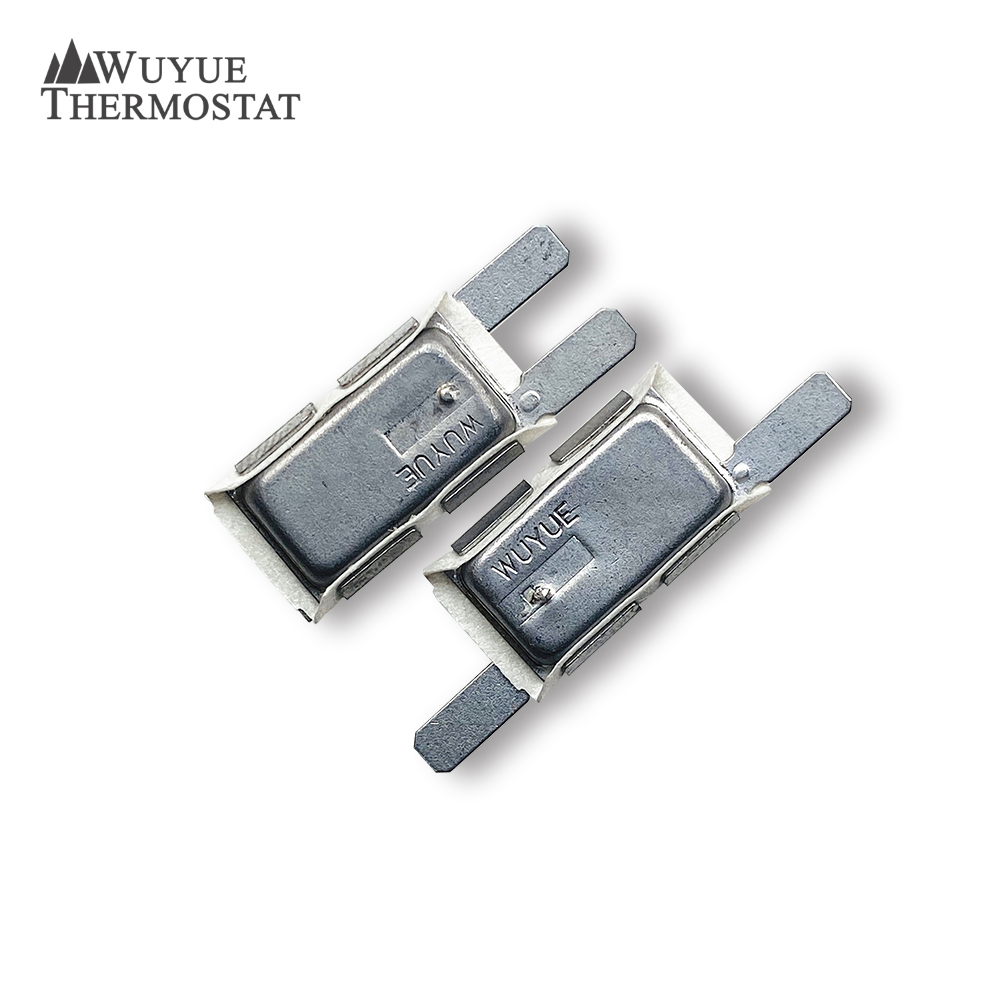

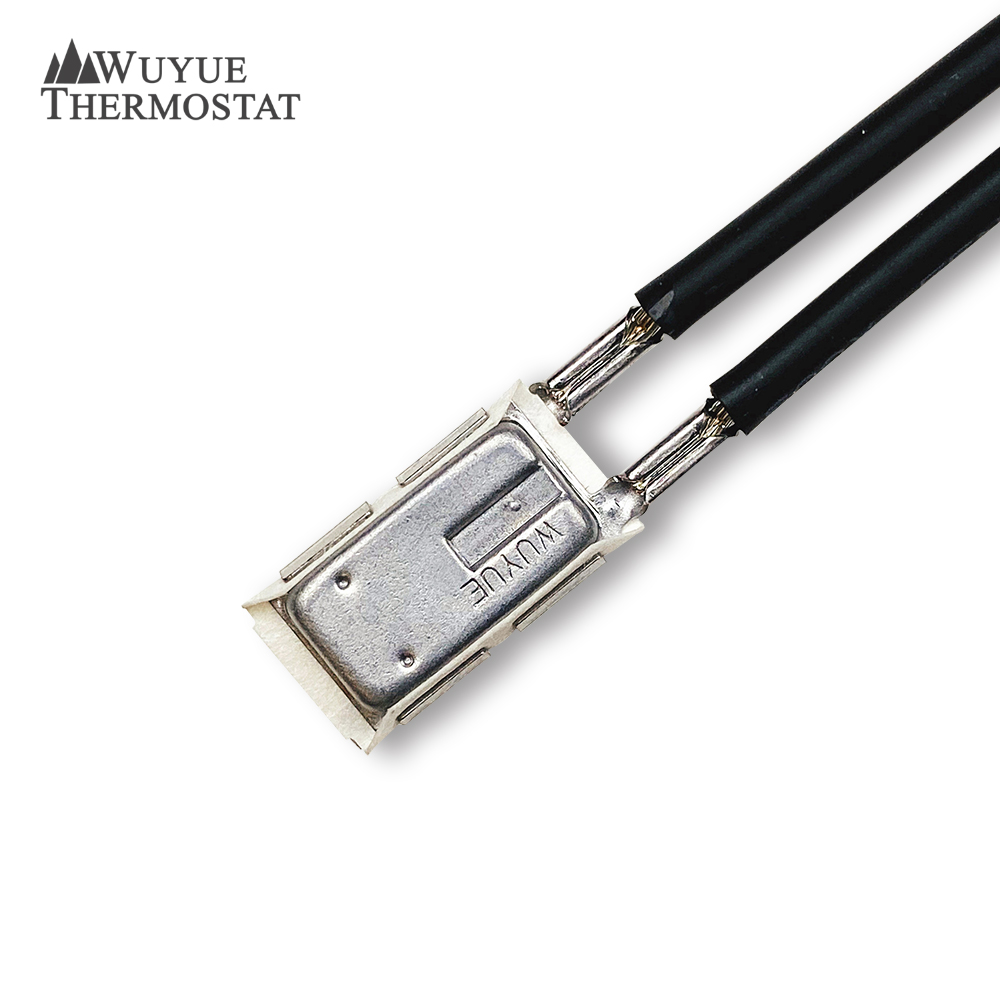

6APE Both current and temperature protector DC

Short Description:

6APE series are both temperature and current sensitive. They can protect motor from overheating or loading.


Product Detail

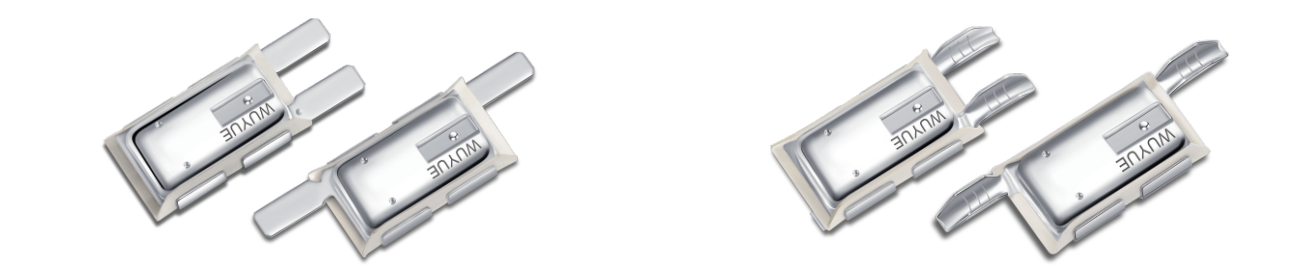

1630043786(1)

Special Features

Small size, Long life and high reliability;

High level bimetal ensures that it can withstand the current of normal circuit;

The combination of bimetal and heater can action snappily;

Accurate trip off time can prevent motor from overheating;

Both temperature and current sensitive;

Each part ROHS environmental standards are strictly enforced;

Terminals are optional and customized;

Wires are optional and customized;

Sealed sleeving can make the protector varnishing proof.

Electrical Specifications

45A / 12V DC          25A / 24V DC          18A / 250V AC          28A / 125V AC

Technical Parameters

Operating Temperature Range 50℃~180℃
Workable Tripping Off Current Range 2~45A
Temperature Tolerance ±5℃,±7℃
R/T 25℃current Testing Standards 4~10S (Or Customized)

Application

Window Motor                      Wiper Motor          Car Seat Motor        Skylight Motor      Washing Machine     Dust Collector

Soybean Milk Machine        Juice Machine        Food Processer        Noodle Machine    Garden Equipment

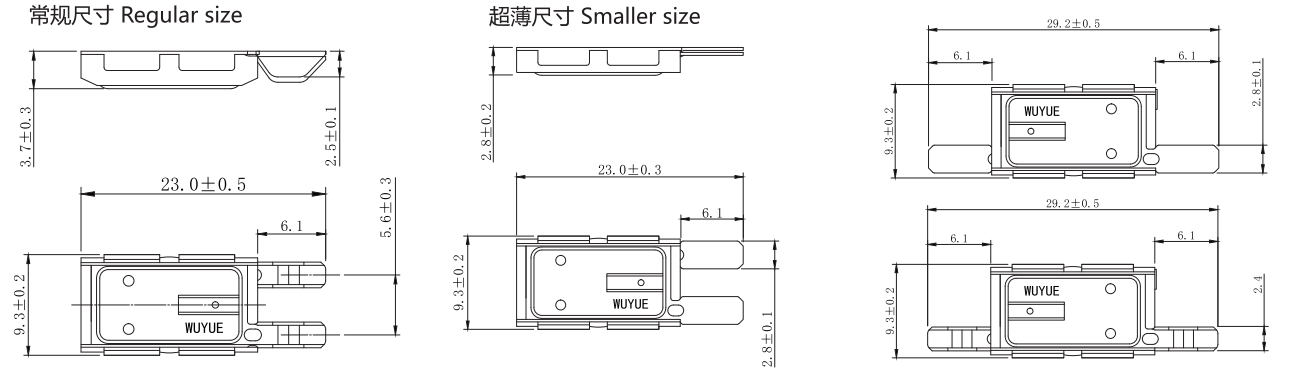

Dimensional Drawings

1628487900(1)
