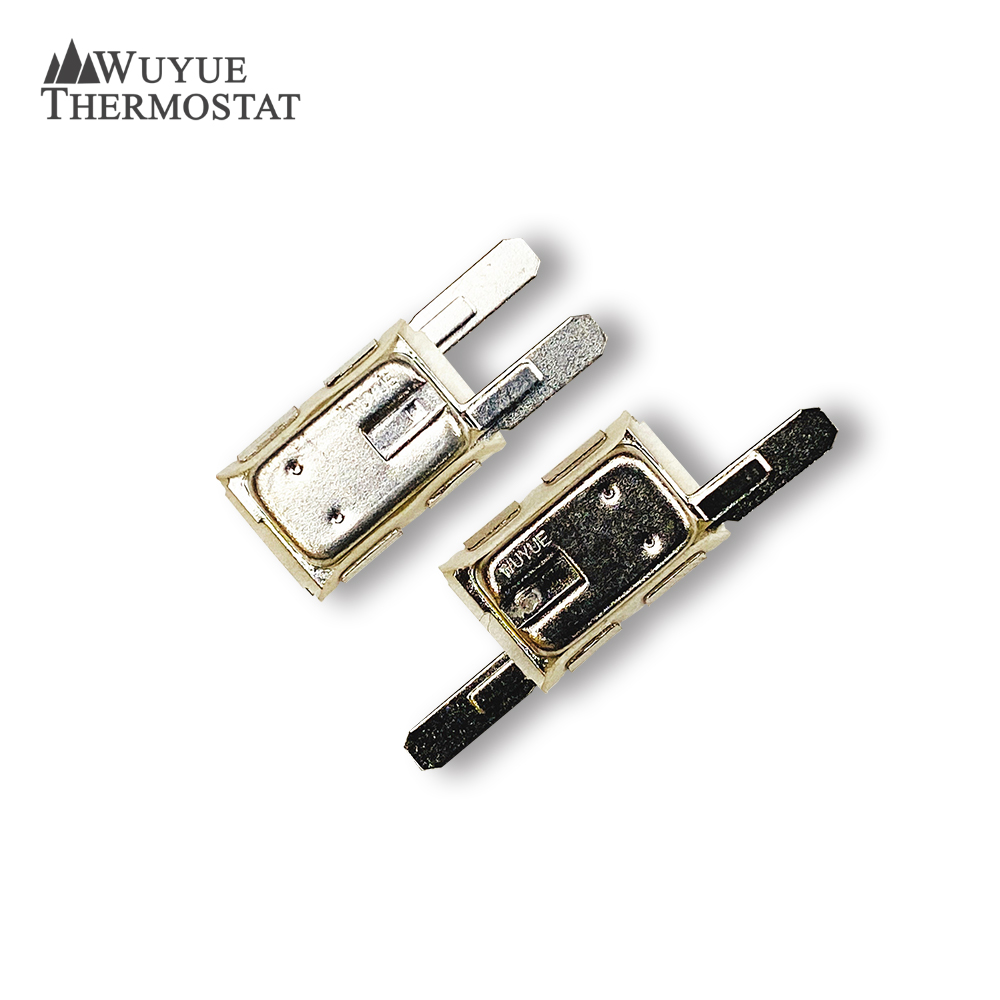

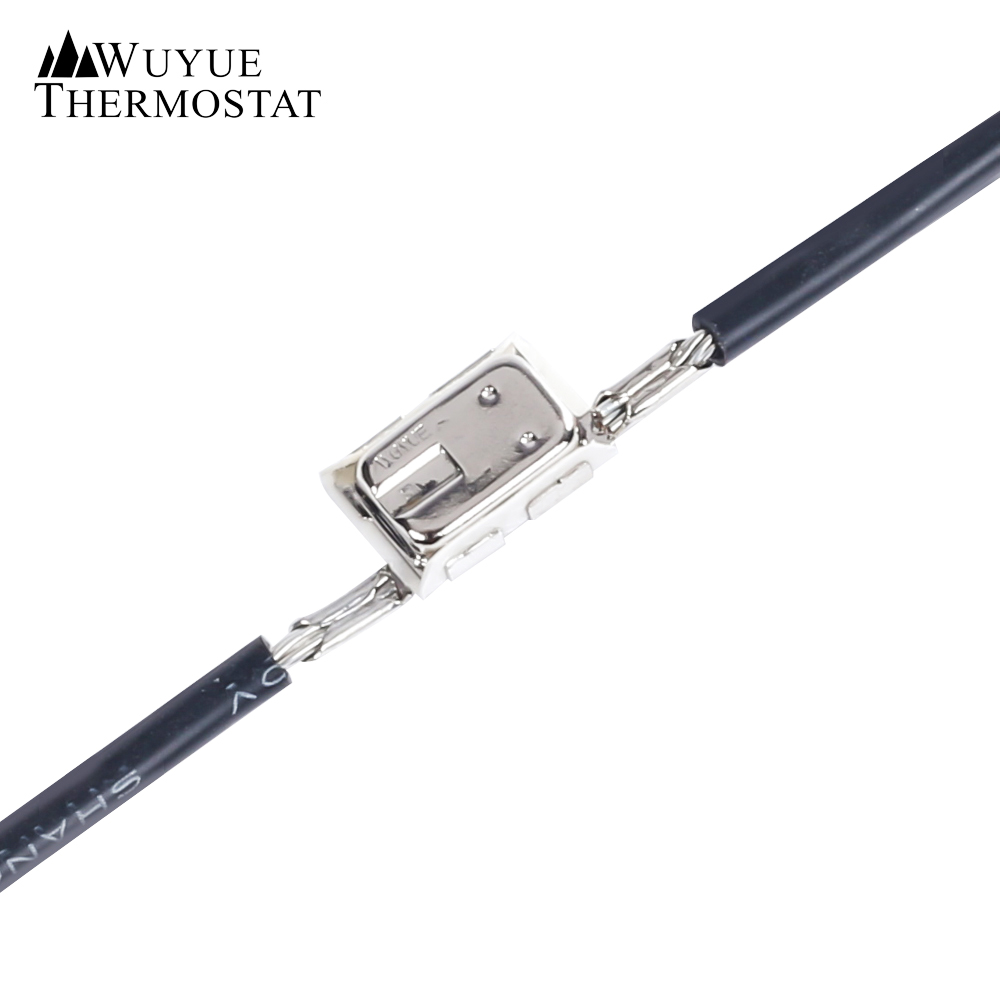

5APE Small size both temperature and current protector DC

Short Description:

5APE series are both temperature and current sensitive. They can protect motor from over heating or loading and the tripping off time can be controlled accurately.


Product Detail

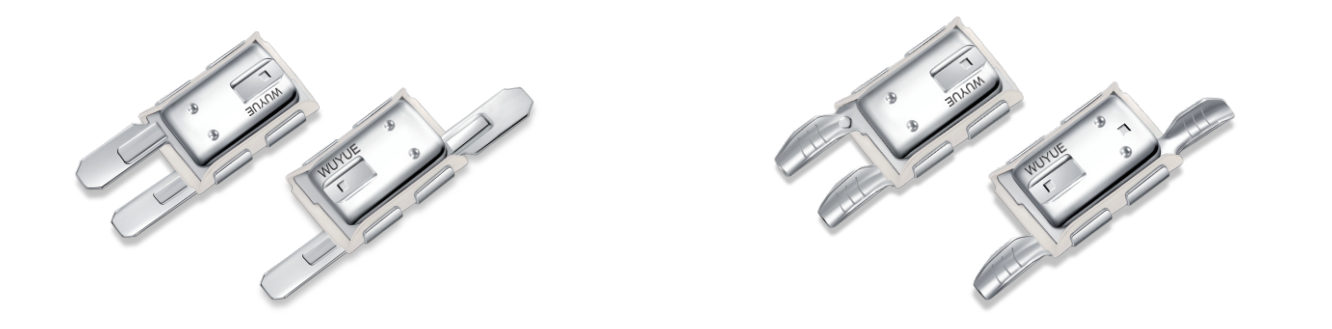

1630043266

Special Features

Small size, long life and high reliability;

High level bimetal ensures that it can withstand the current of normal circuit;

The combination of bimetal and heater can action snappily;

Accurate trip off time can prevent motor from overheating;

Both temperature and current sensitive;

Each part ROHS environmental standards are strictly enforced;

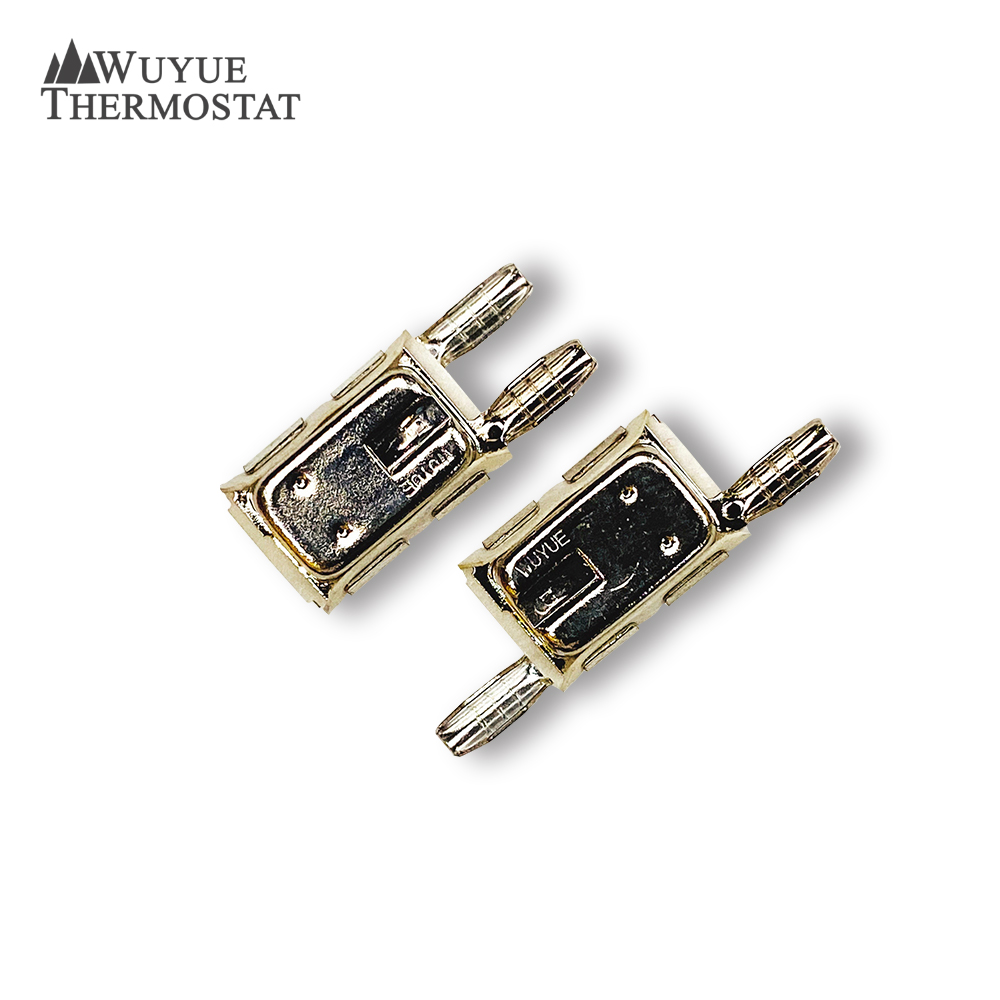

Terminals are optional and customized;

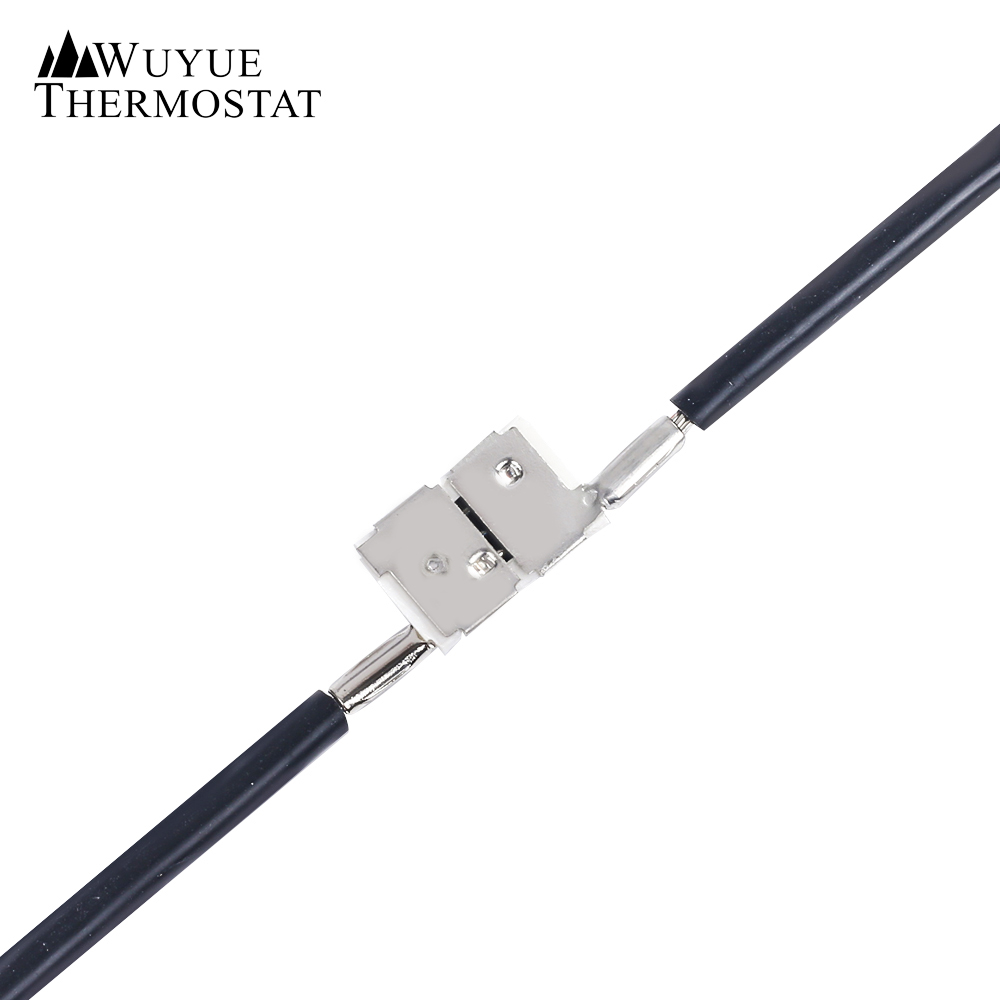

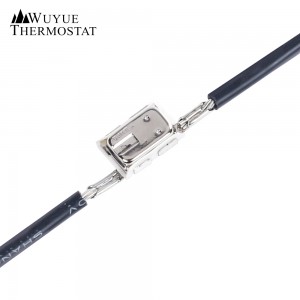

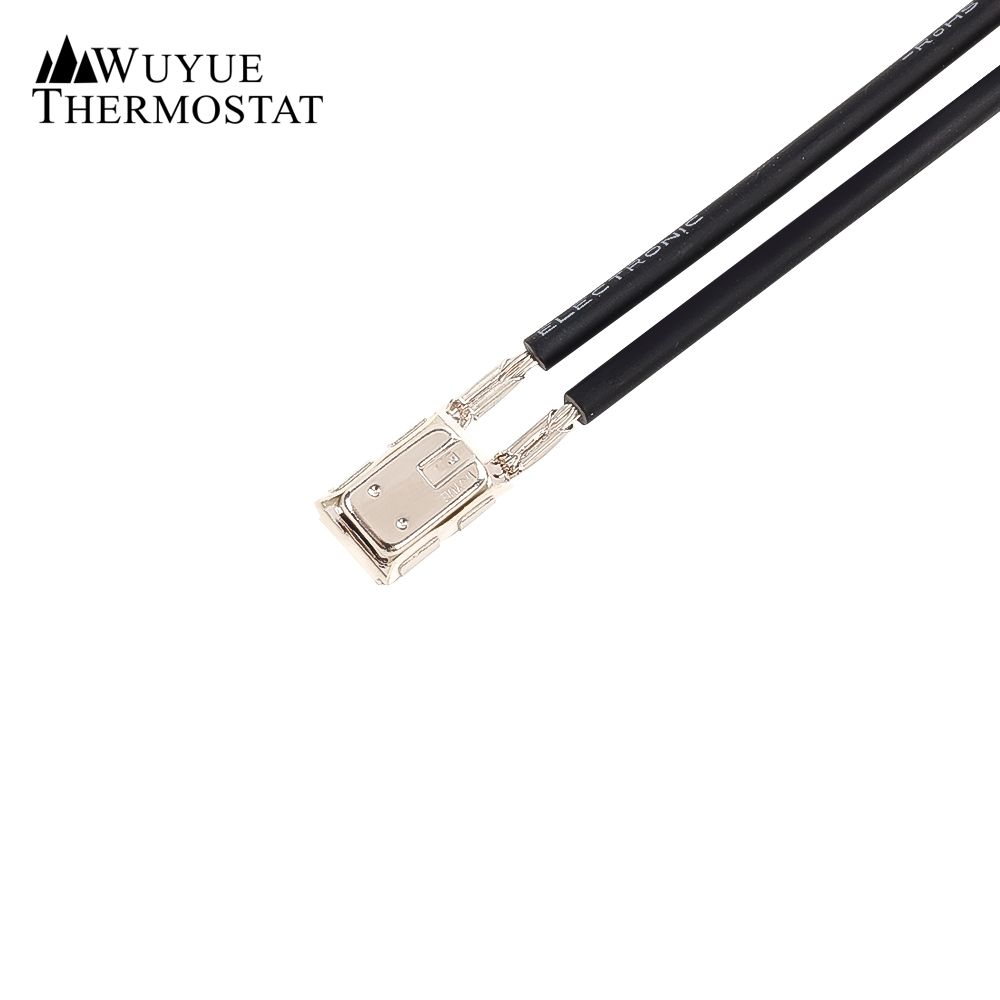

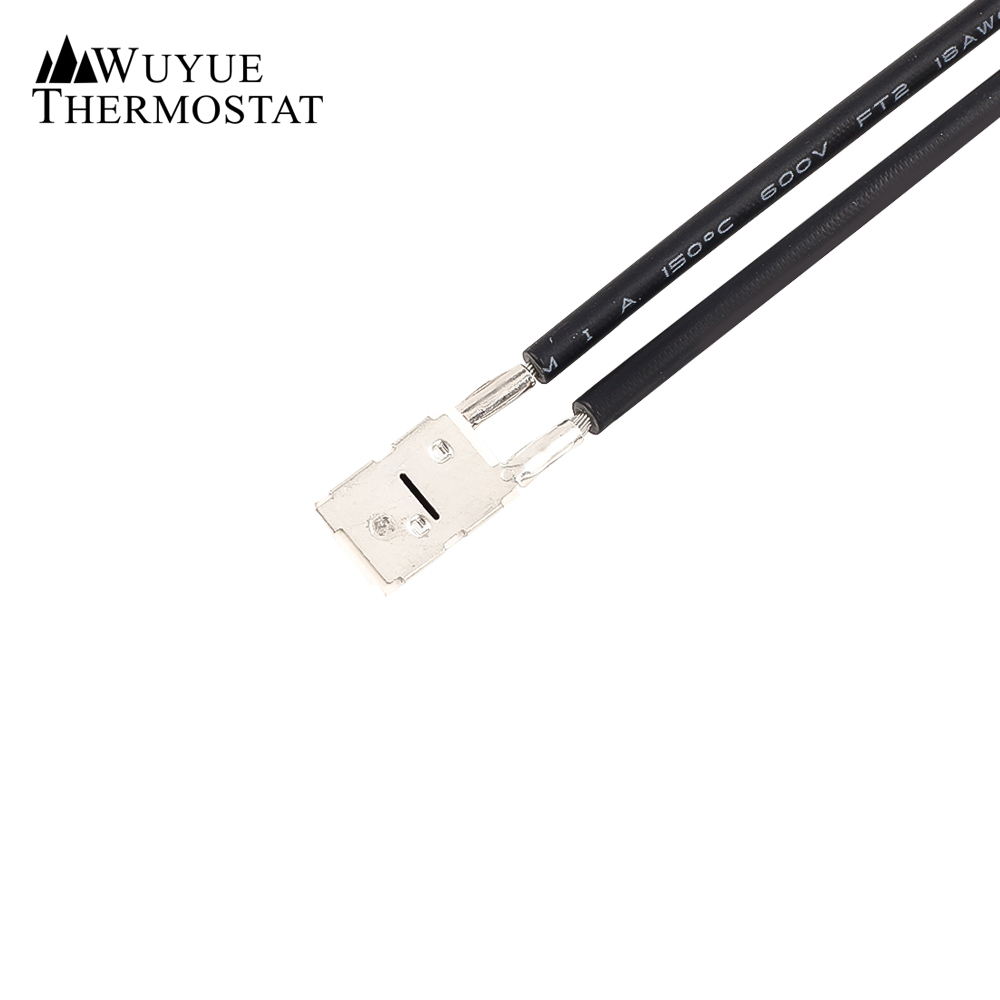

Wires are optional and customized;

Sealed sleeving can make the protector varnishing proof.

Electrical Specifications

20A / 12V DC               10A / 24V DC               10A / 250V AC               18A / 125V AC

Technical Parameters

Operating Temperature Range 50℃~170℃
Workable Tripping Off Current Range 1~30A
Temperature Tolerance ±5℃,±7℃
R/T 25℃ Current Testing Standards 4~10 S (Or Customized)

Application

Window Motor          Noodle Machine                  Wiper Motor          Car Seat Motor

Skylight Motor          Soybean Milk Machine       Juice Machine       Food Processer

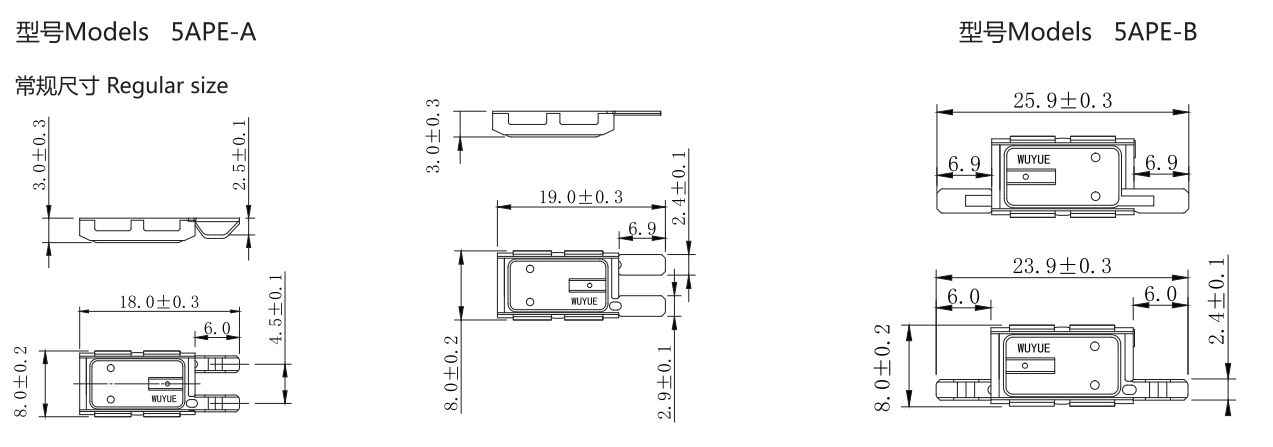

Dimensional Drawings

1628586205(1)
