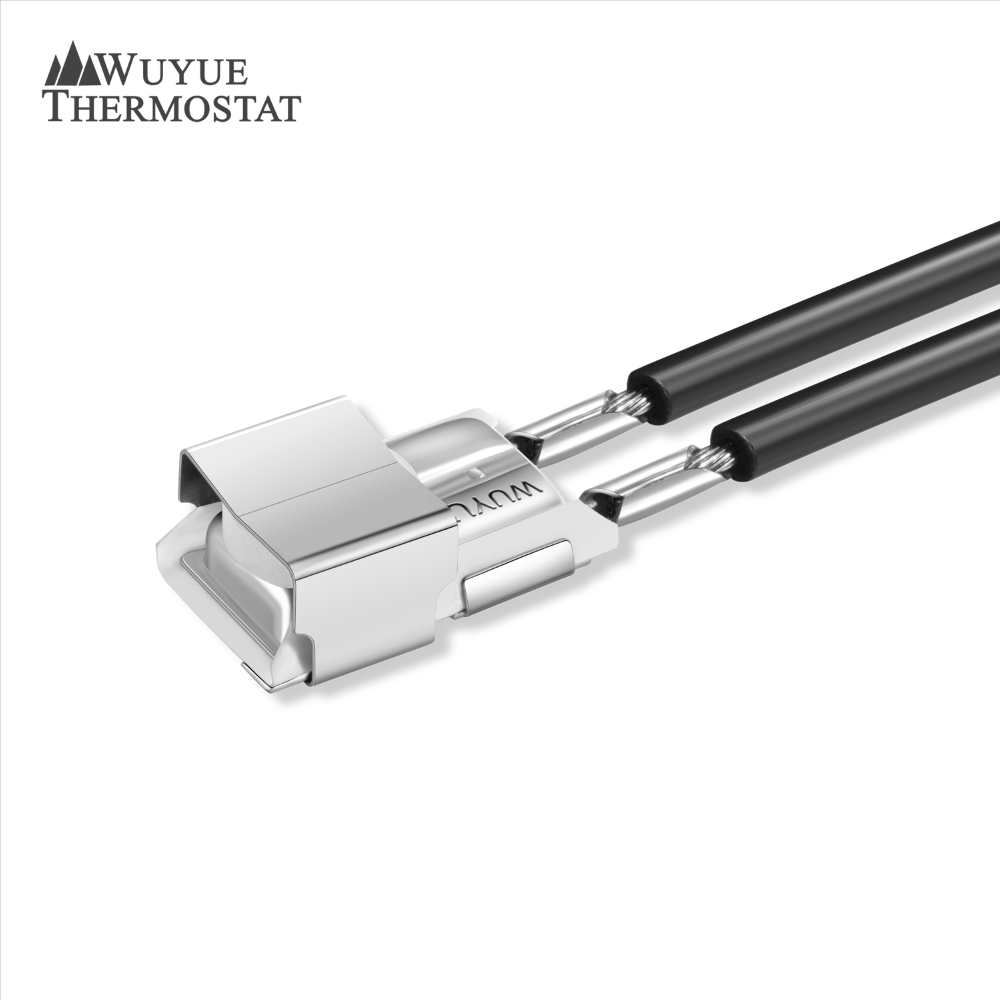

6APE+PTC DC thermal protector with PTC

Short Description:

6APE+PTC is a self hold protector that was development upon our customers’ demands. It can provide higher level safety protection.

Send email to us

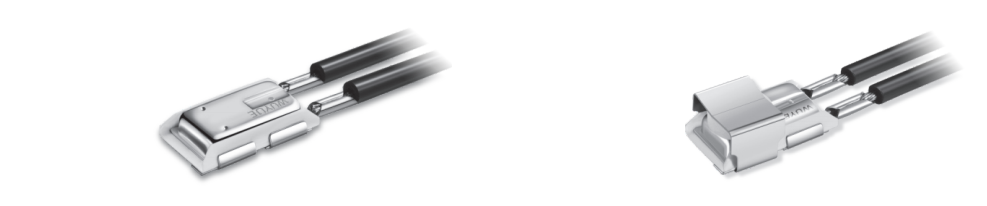

Product Detail

Special Features

Self holding and time-delay protection;

Providing higher safety protection;

Applicable to protect abnormal operation of motor;

Casing seal to prevent substances such as insulation of motor.

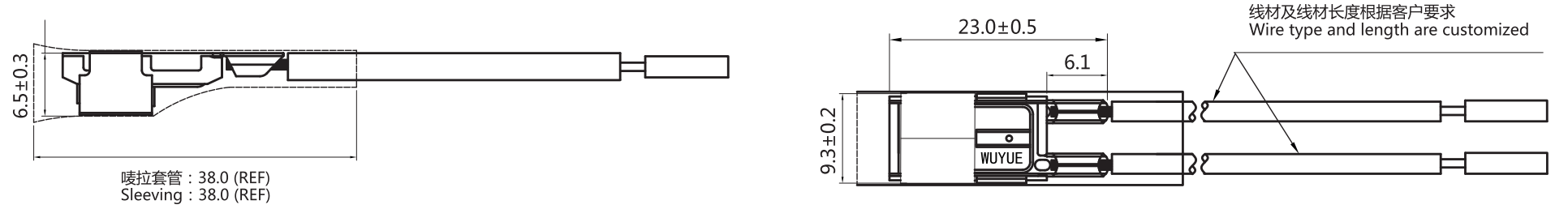

Electrical Specifications

45A / 12V DC 20A / 24V DC 18A / 250V AC 28A / 125V AC

R/T 25 ℃ Current Testing Standards: 4~10S (Or Customized)

Temperature Range and Tolerance

Operating Temperature	50~180℃
Operating Temperature Tolerance	±5℃， ±7℃

Application

Window Motor Wiper Motor Car Seat Motor Skylight Motor

Soybean Milk Machine Juice Machine Food Processer Noodle Machine

Working Principle

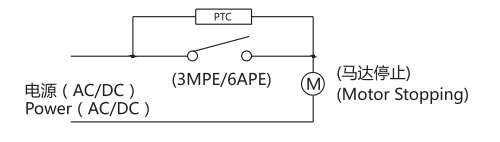

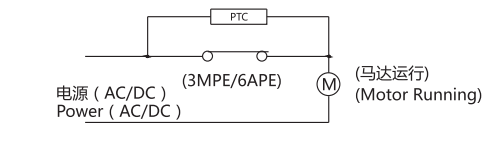

6APE Thermal protector is connected to PTC in parallel, then connecting to application in series. PTC doesn’t general high temperature when the application running normally.

When the application works abnormally, which causes the ambient temperature to exceed the prescribed value, the protector will open. Then, the current flows through PTC. Since PTC has a very high resistance, the current assigned to the application will be too low to start it. Meanwhile, the heat generated by PTC will remain the protector open until the power is unplugged.

After the power is unplugged, the ambient temperature will decrease and then, the protector will closed again.
