3MPE Both temperature and current protector AC

Short Description:

3MPE series are both temperature and current sensitive. They can protect motor from overheating or loading.


Product Detail

1630044572(1)

Special Features

Small size, Long life and high reliability;

High level bimetal ensures that it can withstand the current of normal circuit;

The combination of bimetal and heater can action snappily;

Accurate trip off time can prevent motor from overheating;

Both temperature and current sensitive;

Each part ROHS environmental standards are strictly enforced;

Terminals are optional and customized;

Wires are optional and customized;

Sealed sleeving can make the protector varnishing proof.

Electrical Specifications

45A / 12V DC          25A / 24V DC          18A / 250V AC          28A / 125V AC



Temperature Range and Tolerance

Operating Temperature Range 50℃~180℃
Workable Tripping Off Current Range 2~45A
Temperature Tolerance ±5℃,±7℃
R/T 25℃current Testing Standards 4~10S (Or Customized)

Application

Window Motor                      Wiper Motor          Car Seat Motor        Skylight Motor

Soybean Milk Machine        Juice Machine        Food Processer        Noodle Machine

Washing Machine                Dust Collector        Garden Equipment

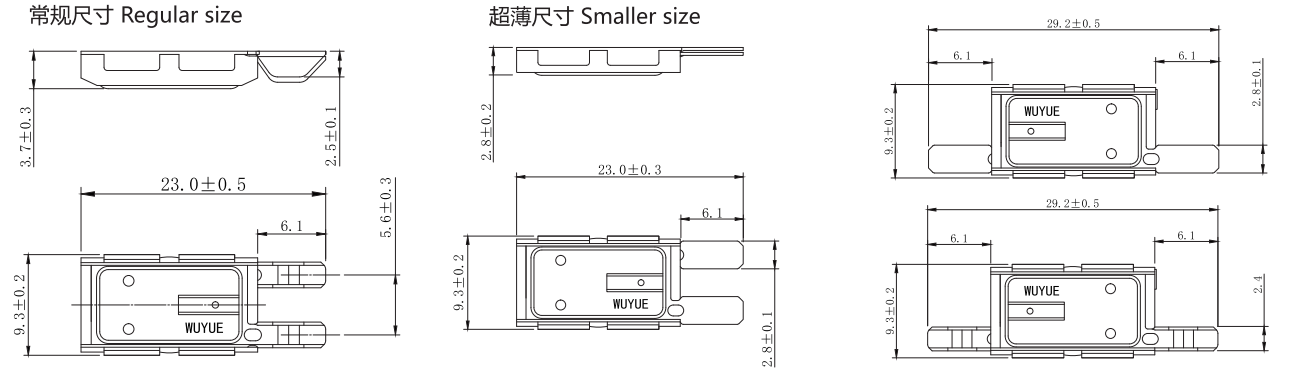

Dimensional Drawing

1628493637(1)
