RB2 Series overload protector for motors / comperssor

Short Description:

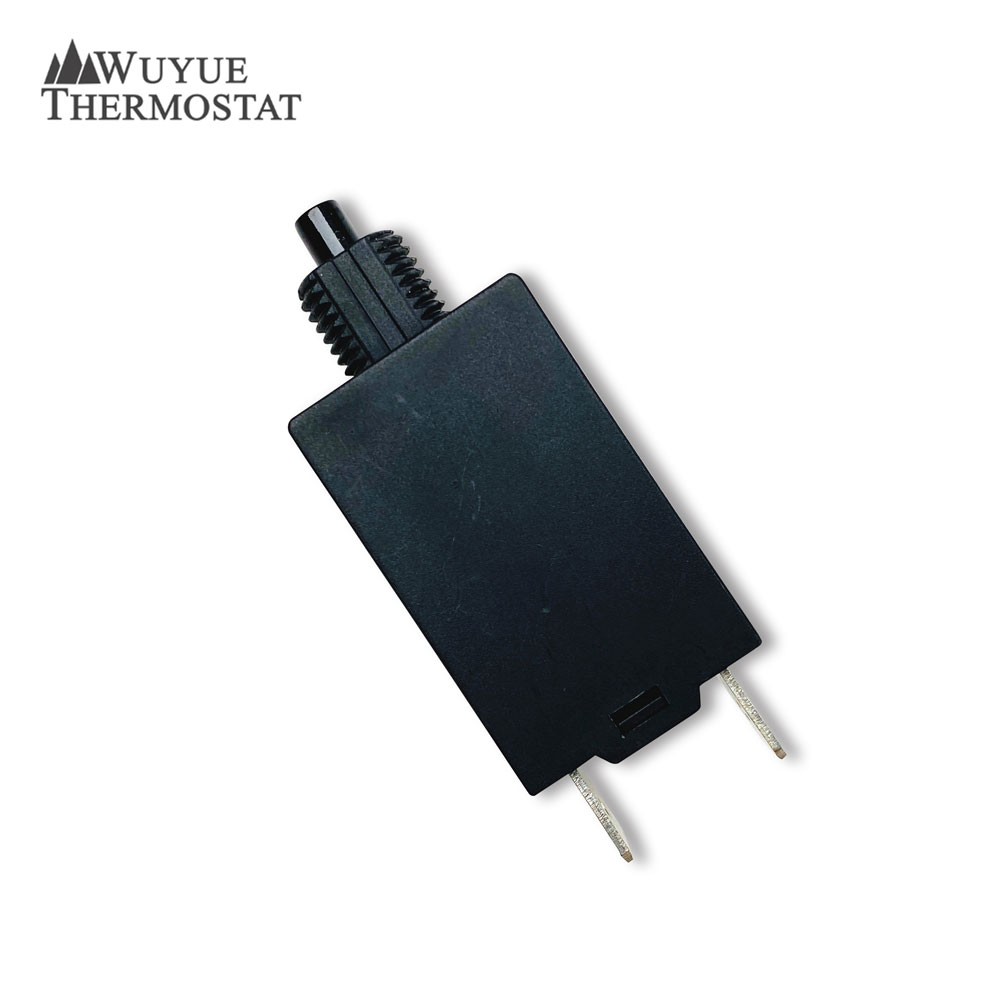

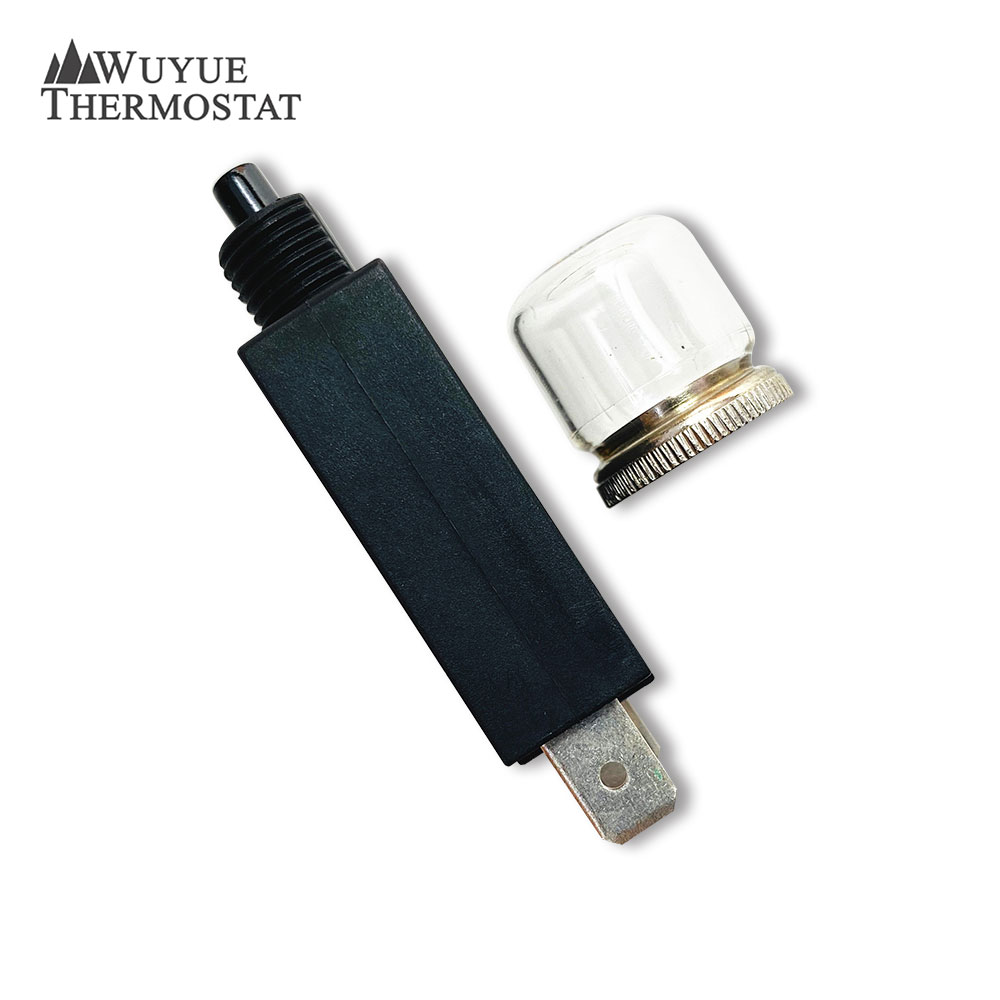

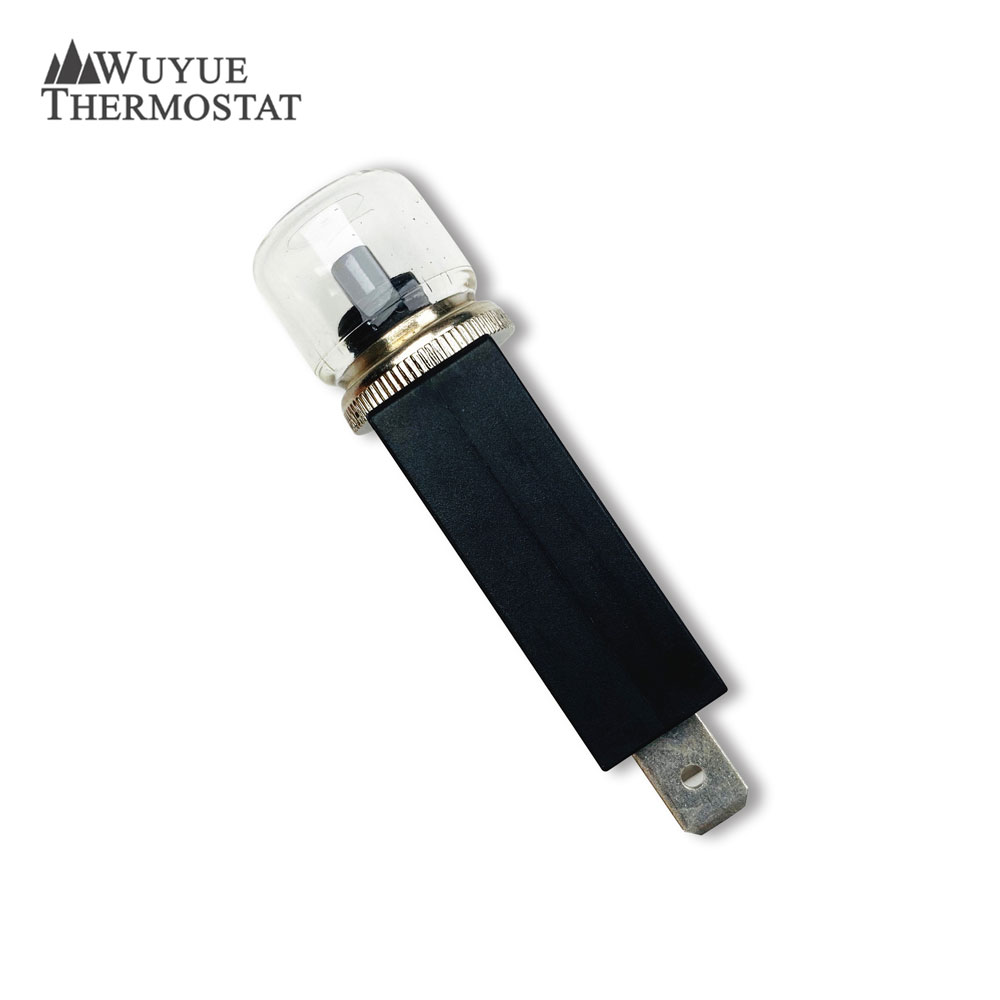

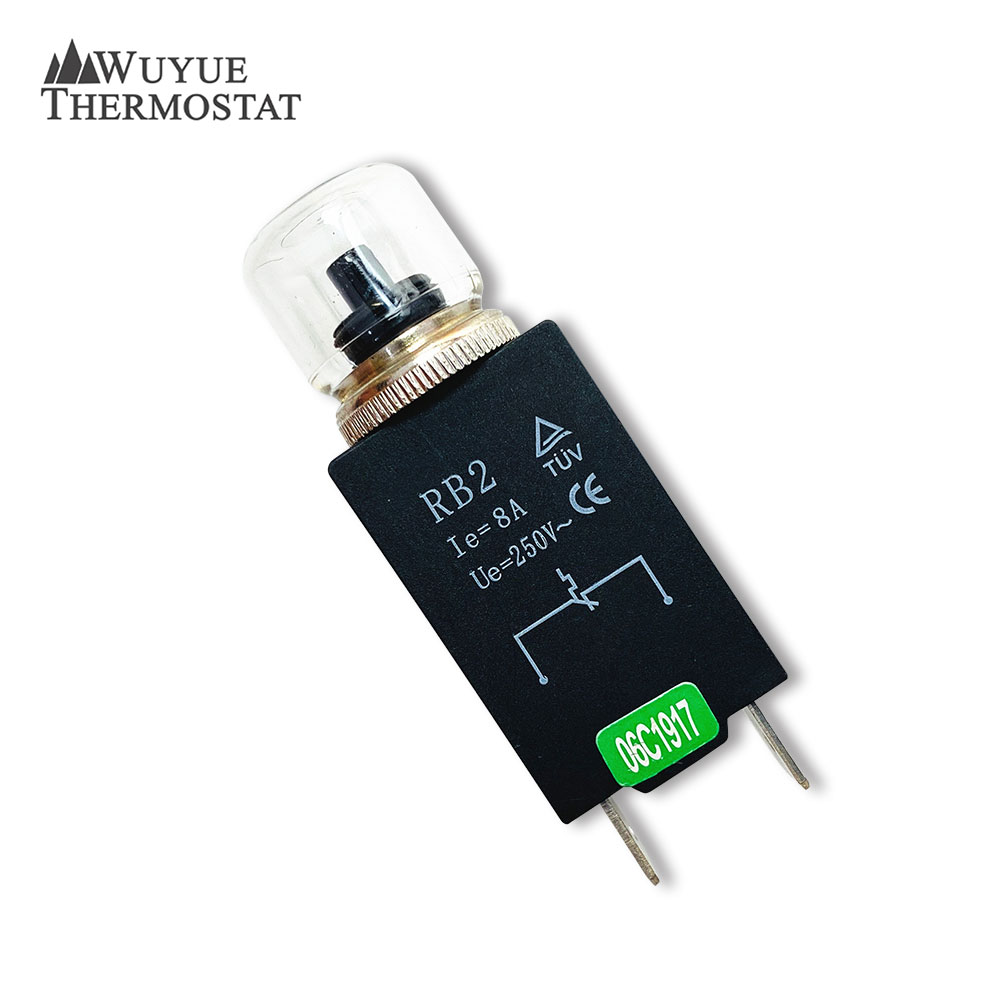

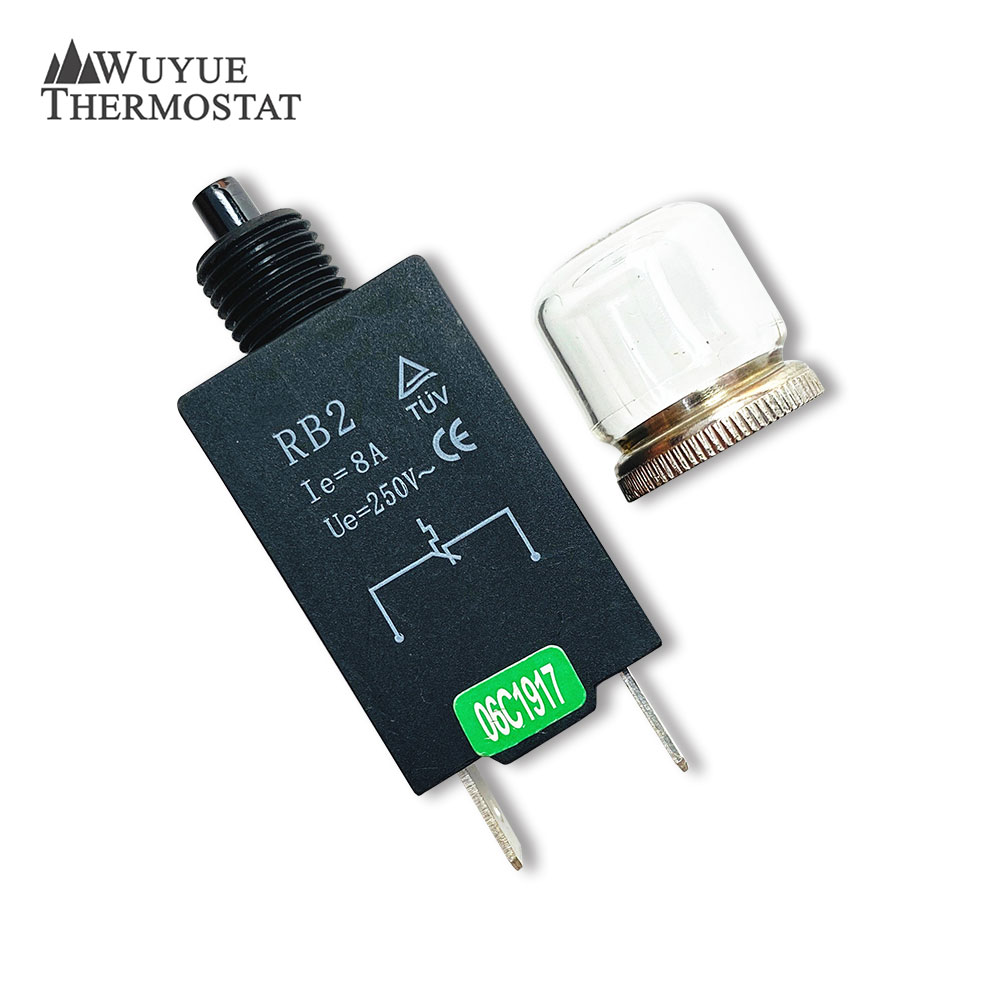

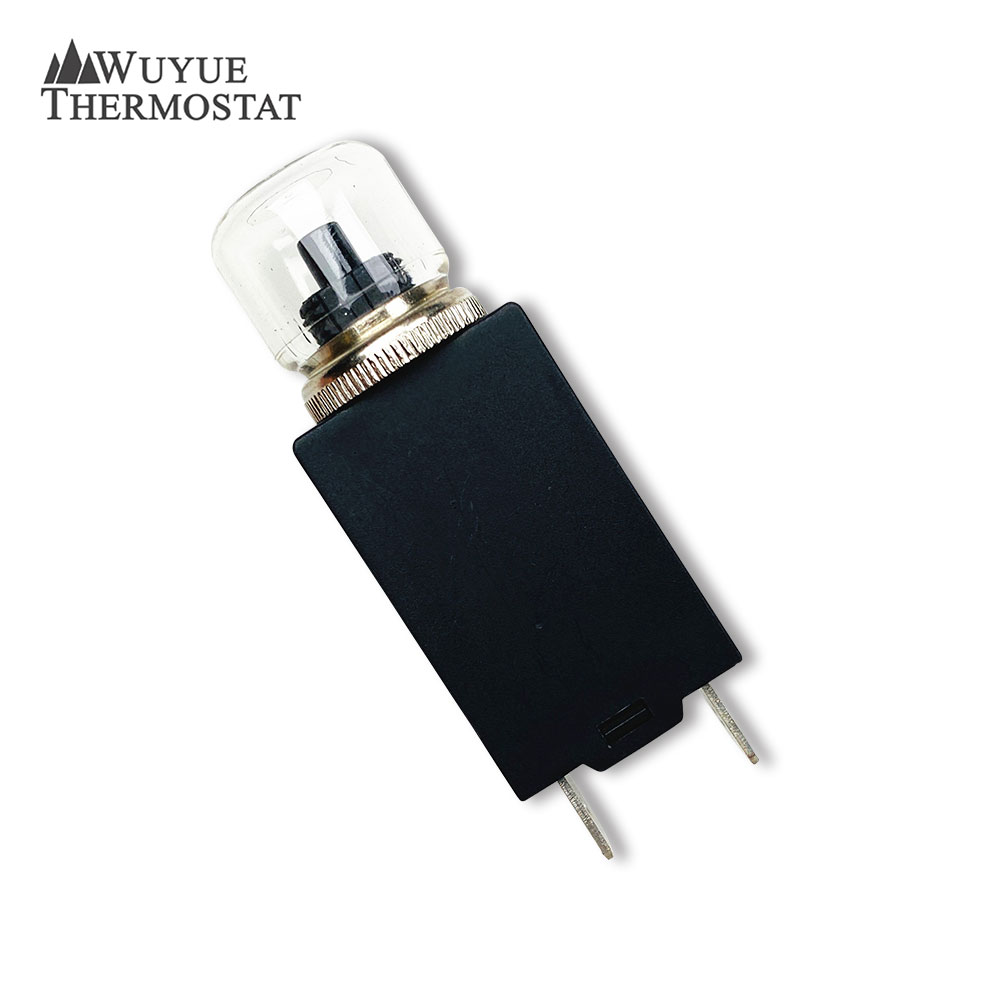

RB2 Series Overload Protector


Product Detail

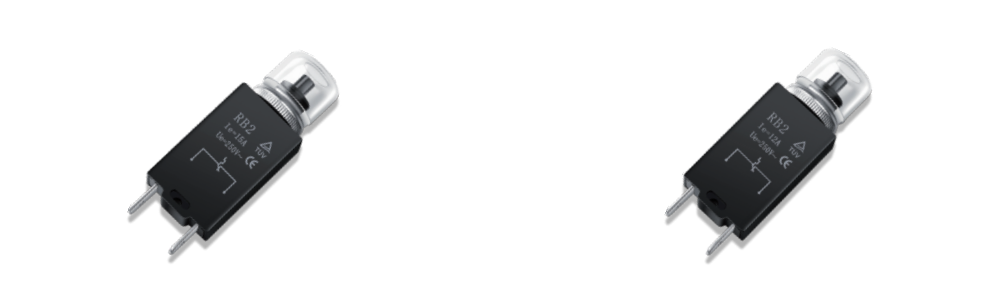

1630050066(1)

Special Features

Rated Current: 0.5A~20A

Rated Voltage: 125/250VAC   50VDC

Short-Circuit Test: 250VAC  1000A

Hi-pot test: 1,500VAC/min

Overload capacity: 10 times rated current

Voltage degradation: Less than 0.25V

Insulation Resistance: More than 500MΩ

Terminal Temperature rise: Stable at 25℃,

    Temperature Rise <65K at 100% rated current

Reset Time: in 60 seconds

Reset Method: Manual

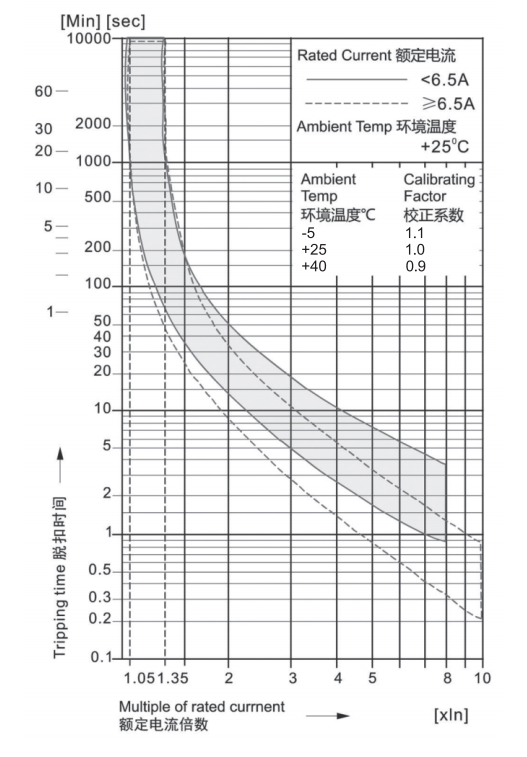

Test Standard(25℃)

100% Rated Current: No trip Off

150% Rated Current: Trip in 1 hour

200% Rated Current: 4~40 seconds trip off

300% Rated Current: 1.2~15 seconds trip off

Application

Lower power generator          Air compressor          Compressor          Electric car

Power tools                               Extension cable          Transformer

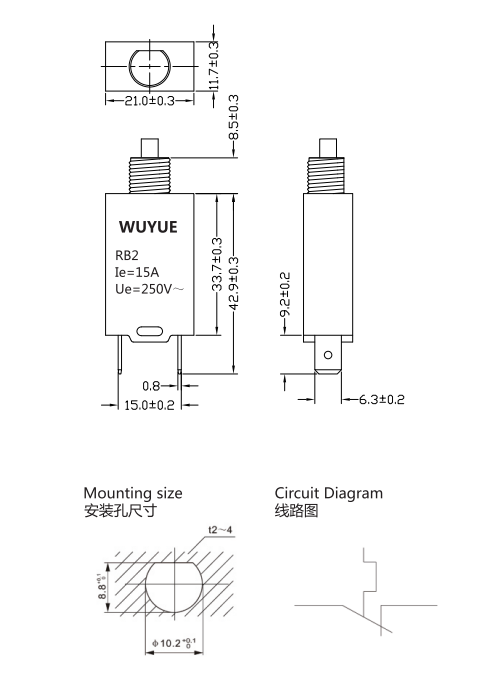

Dimensional Drawings

1628589452(1) 1628589474(1)
