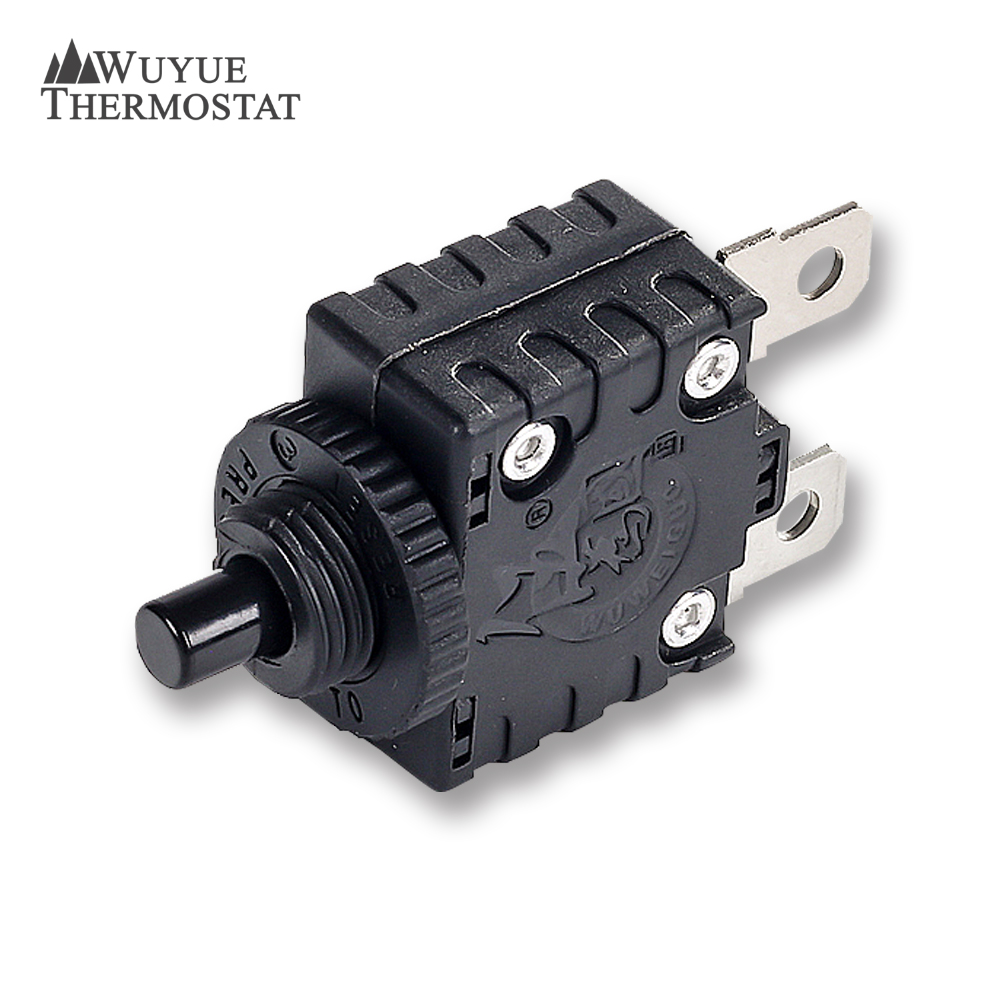

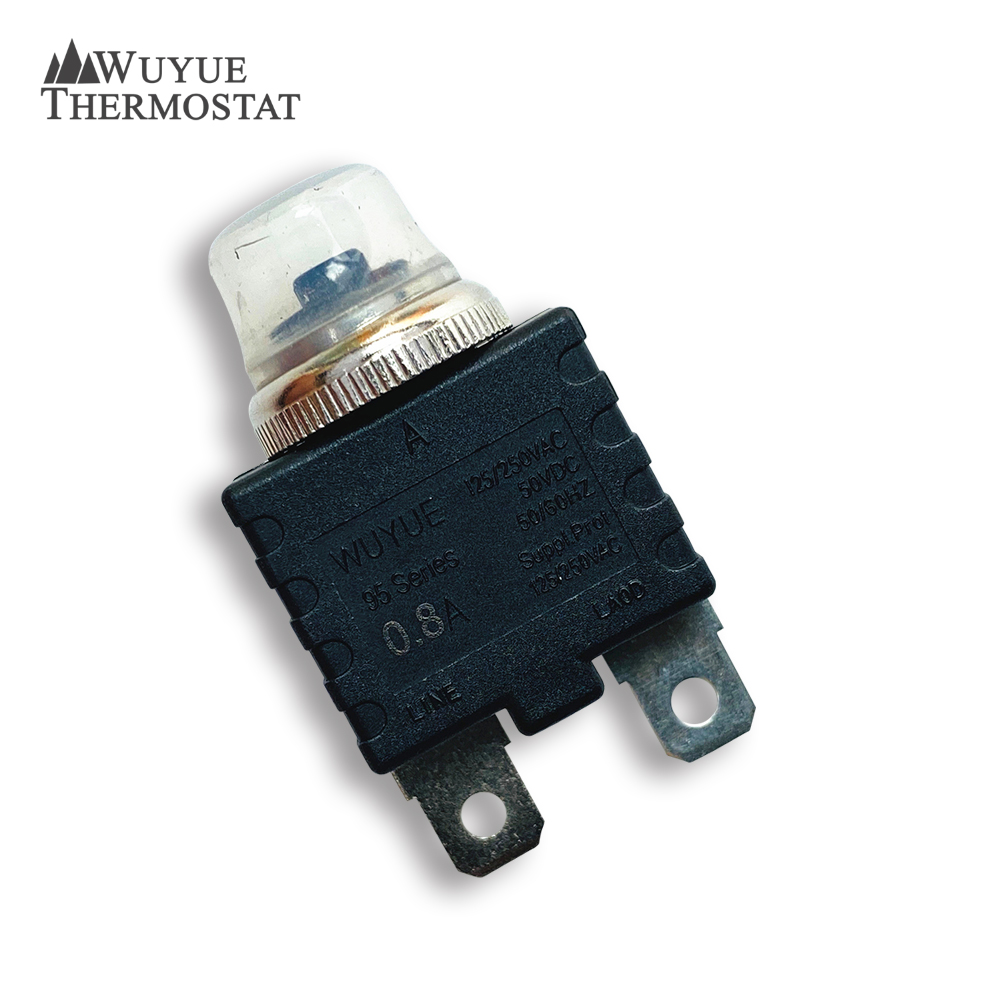

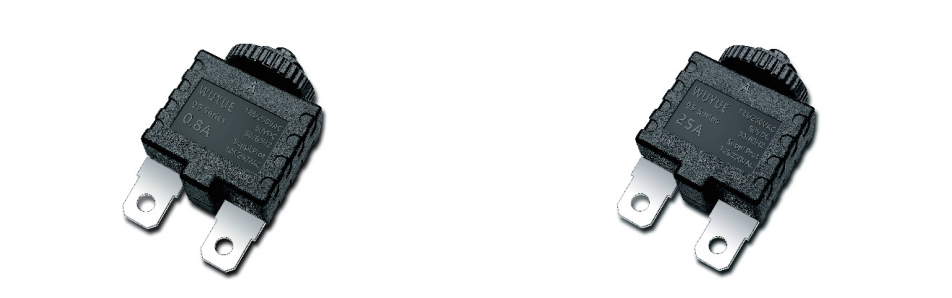

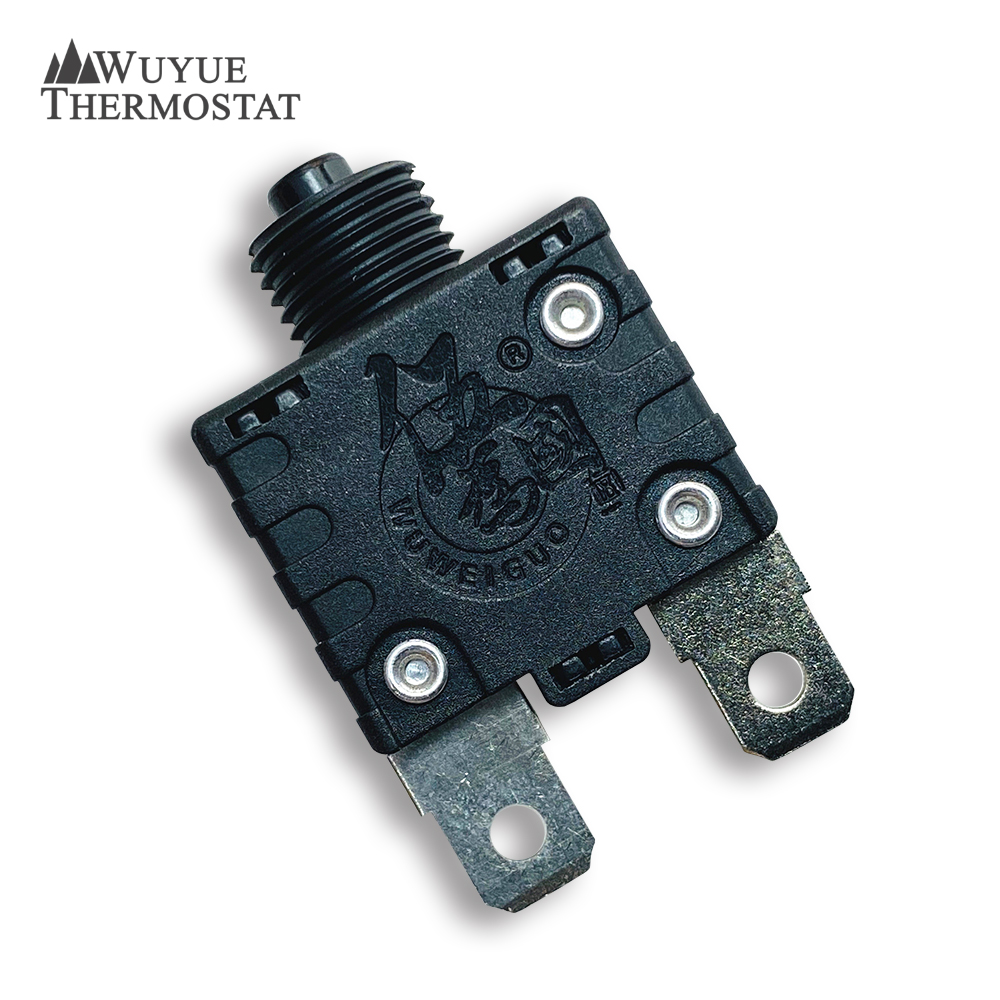

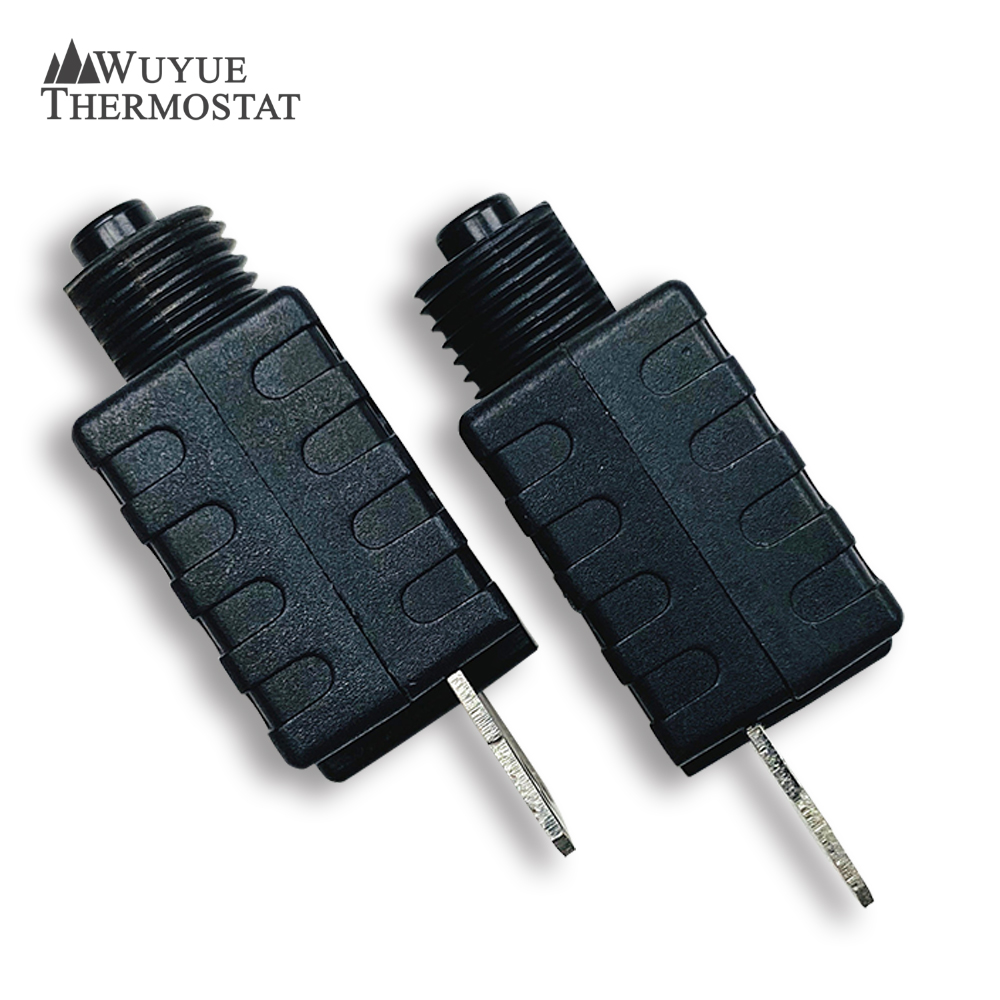

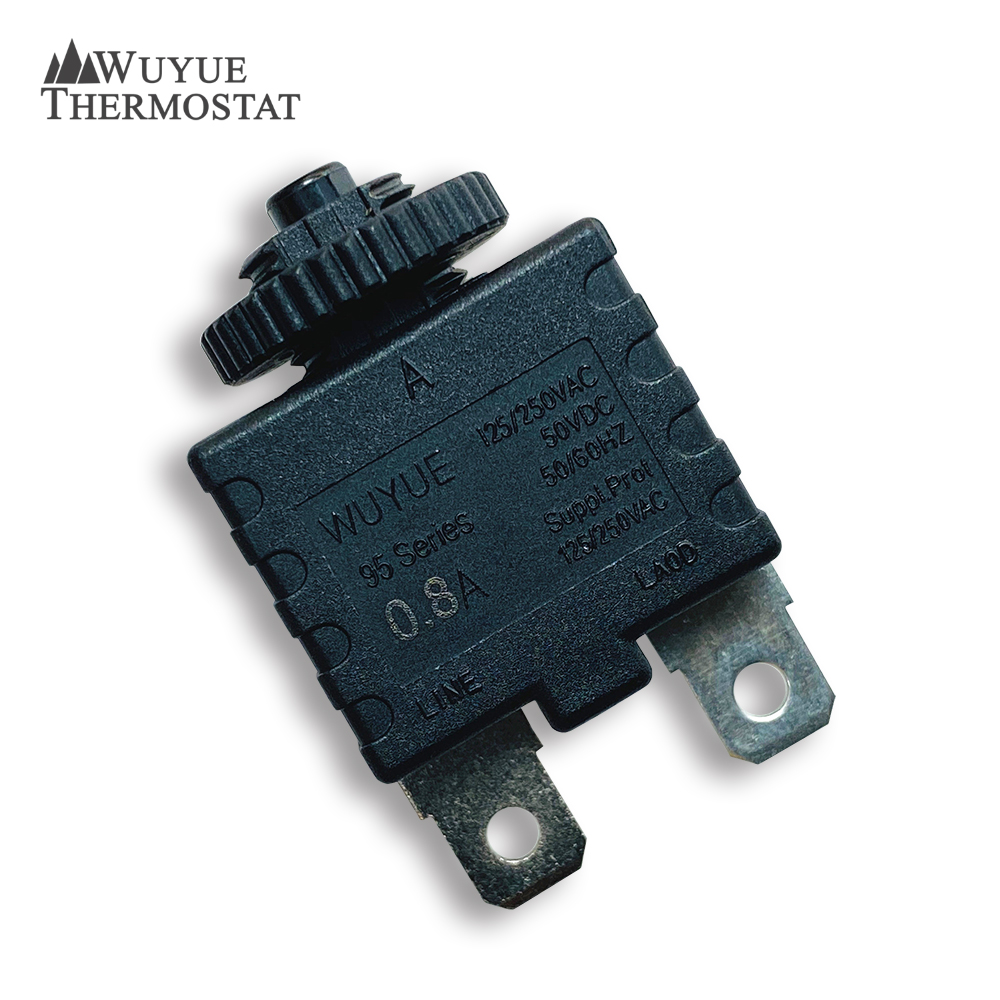

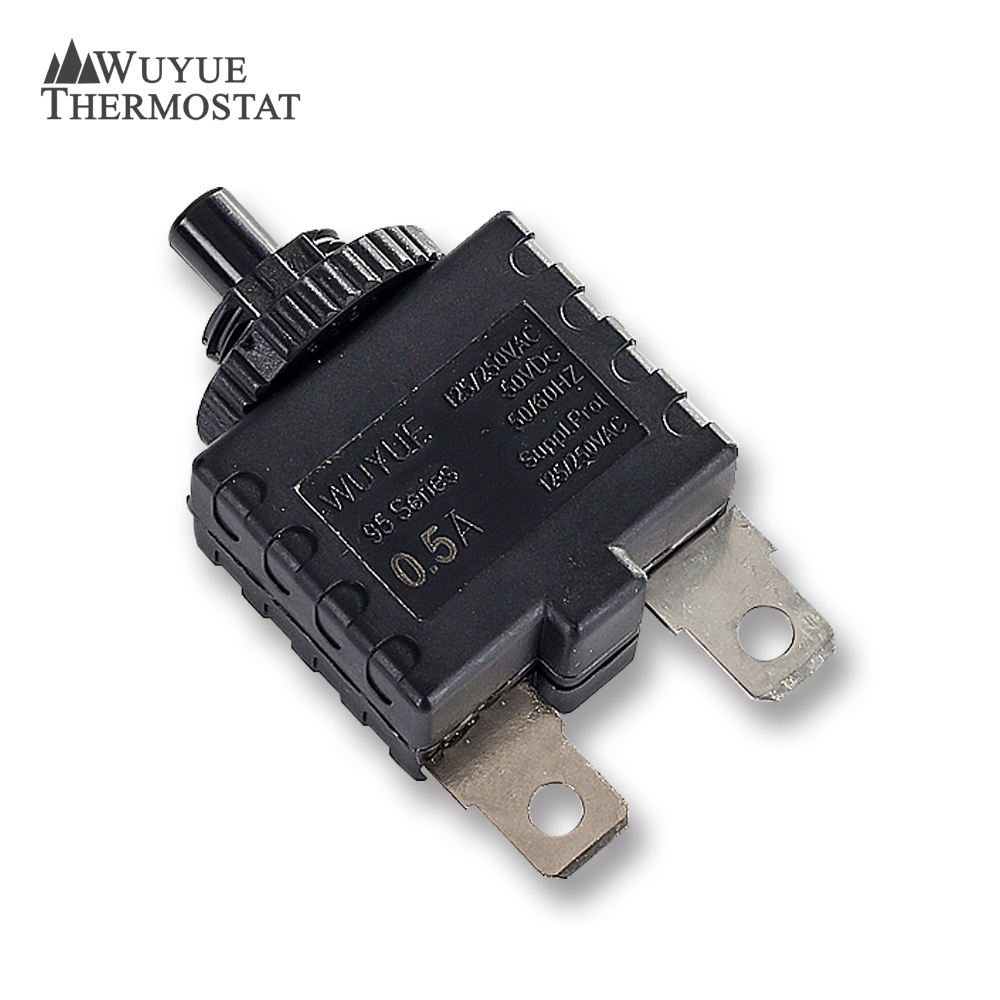

95 Series overload protector for various types of motor
Special Features
Rated Current: 0.5A~20A
Rated Voltage: 125/250VAC 50VDC
Short-Circuit Test: 250VAC 1000A
Hi-pot test: 1,500VAC/min
Overload capacity: 10 times rated current
Voltage degradation: Less than 0.25V
Insulation Resistance: More than 500MΩ
Terminal Temperature rise: Stable at 25℃,
Temperature Rise ＜65K at 100% rated current
Reset Time: in 60 seconds
Reset Method: Manual
Test Standard(25℃)
100% Rated Current: No trip Off
150% Rated Current: Trip in 1 hour
200% Rated Current: 4~40 seconds trip off
300% Rated Current: 1.2~15 seconds trip off
The time trip curve in seconds is specified at 25℃/77℉
|
Derating Factor |
||
|
Temperature |
Rating Amp |
|
|
0.5~4A |
5~20A |
|
| 60℃ | *0.48 | *0.65 |
| 50℃ | *0.62 | *0.75 |
| 40℃ | *0.8 | *0.85 |
| 30℃ | *0.9 | *0.9 |
| 25℃ | *1.0 | *1.0 |
| 20℃ | *1.1 | *1.1 |
| 10℃ | *1.25 | *1.25 |
| 0℃ | *1.5 | *1.5 |
|
Max Resistance & Current Rating at 25℃ |
|
|
Rated Current |
Rating Amp |
|
0.5~1Amp |
＜3.5 |
|
1~2Amp |
＜1.5 |
|
2.5~4Amp |
＜0.07 |
|
5~6Amp |
＜0.05 |
|
7~8Amp |
＜0.036 |
|
9~11Amp |
＜0.025 |
|
12~13Amp |
＜0.02 |
|
14~16Amp |
＜00.017 |
|
17~30Amp |
＜0.012 |
Application
Lower power generator Air compressor Compressor Electric car
Power tools Extension cable Transformer

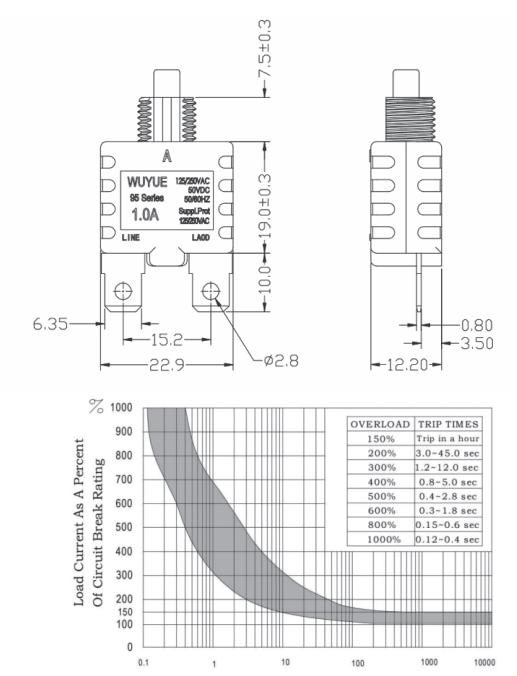

Dimensional Drawings
