88 Series overload protector for power tools

Short Description:

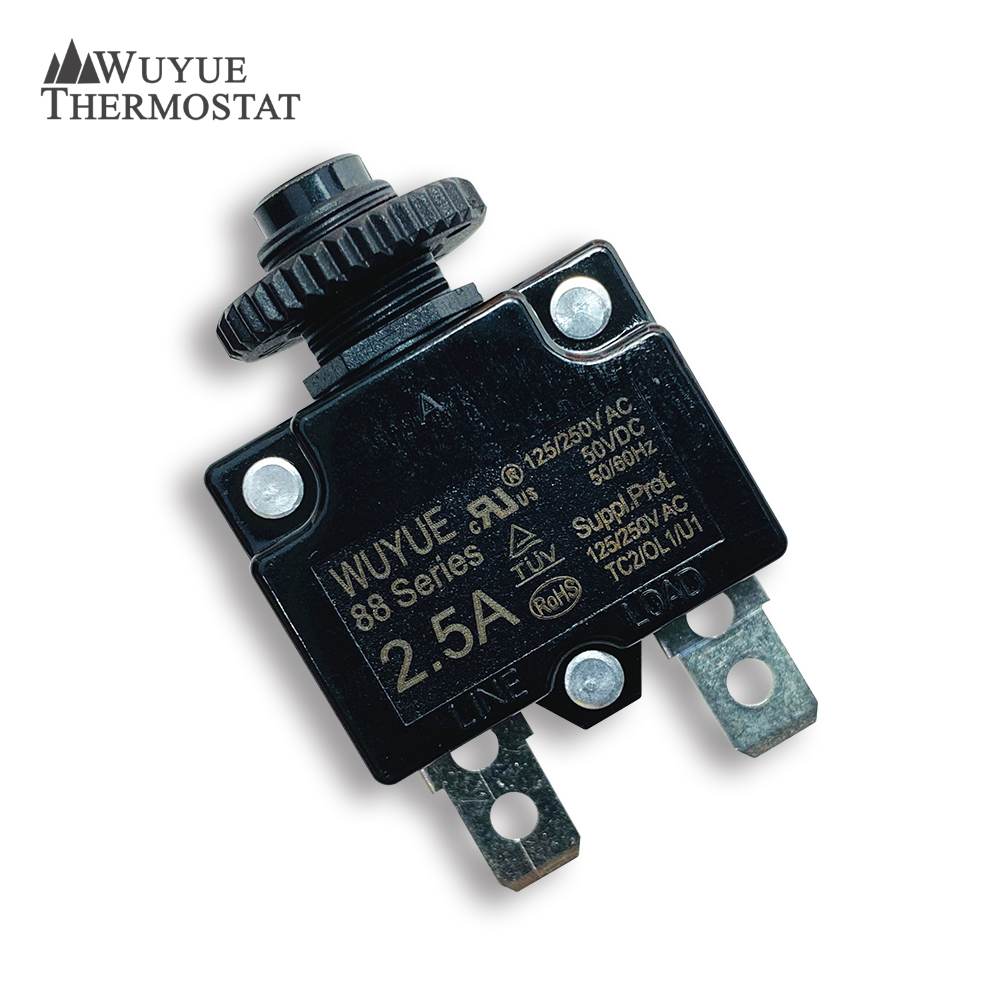

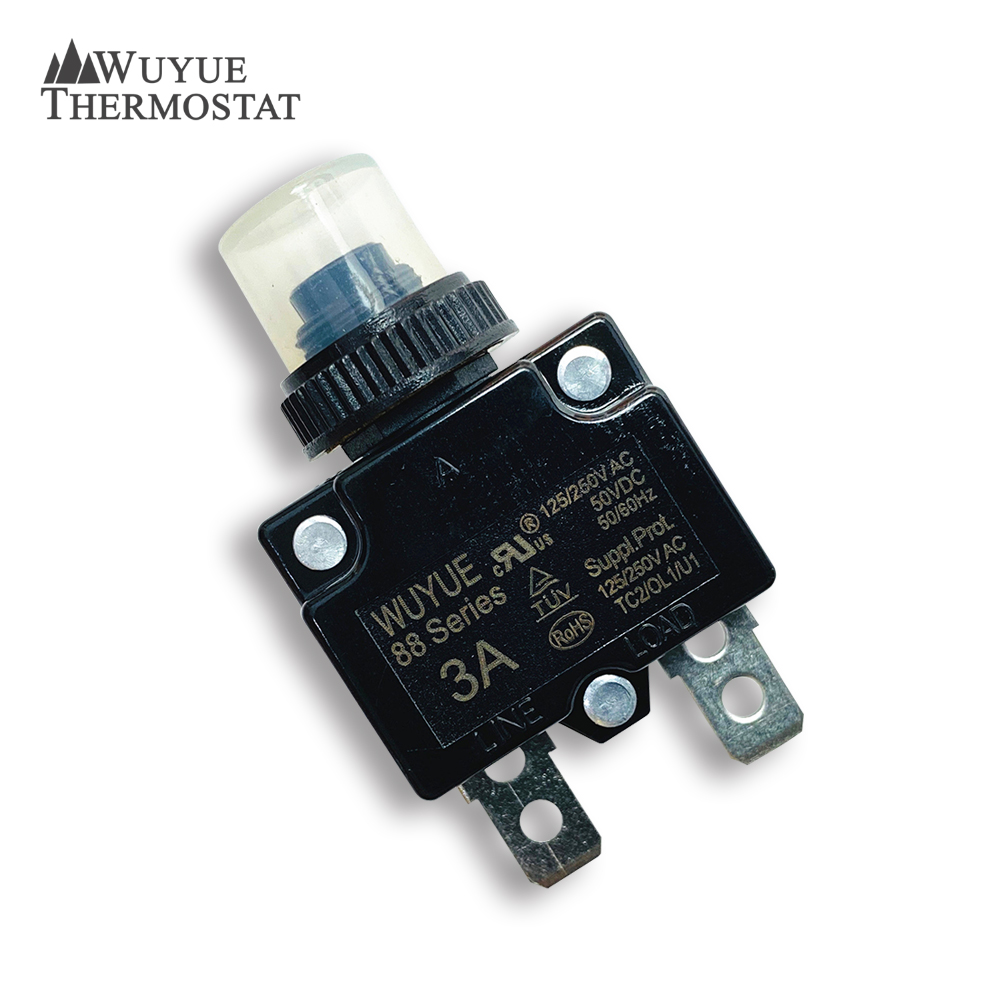

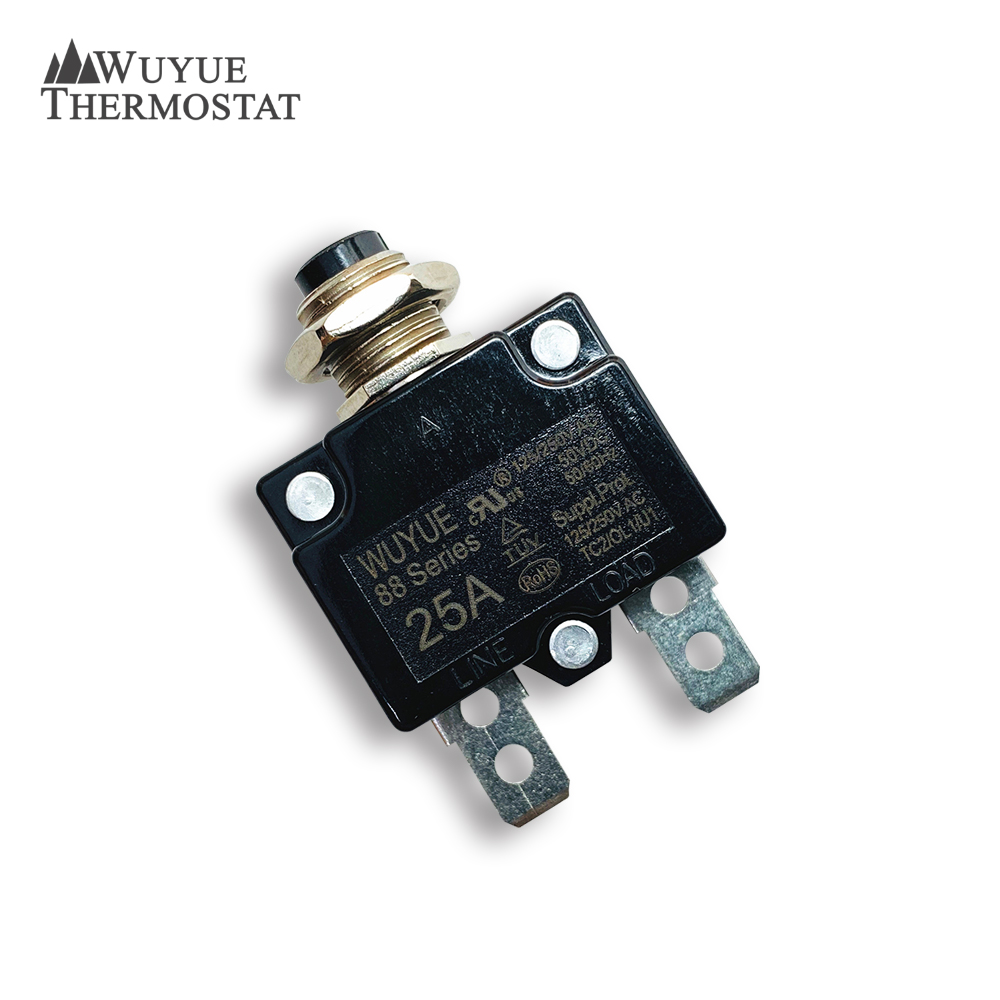

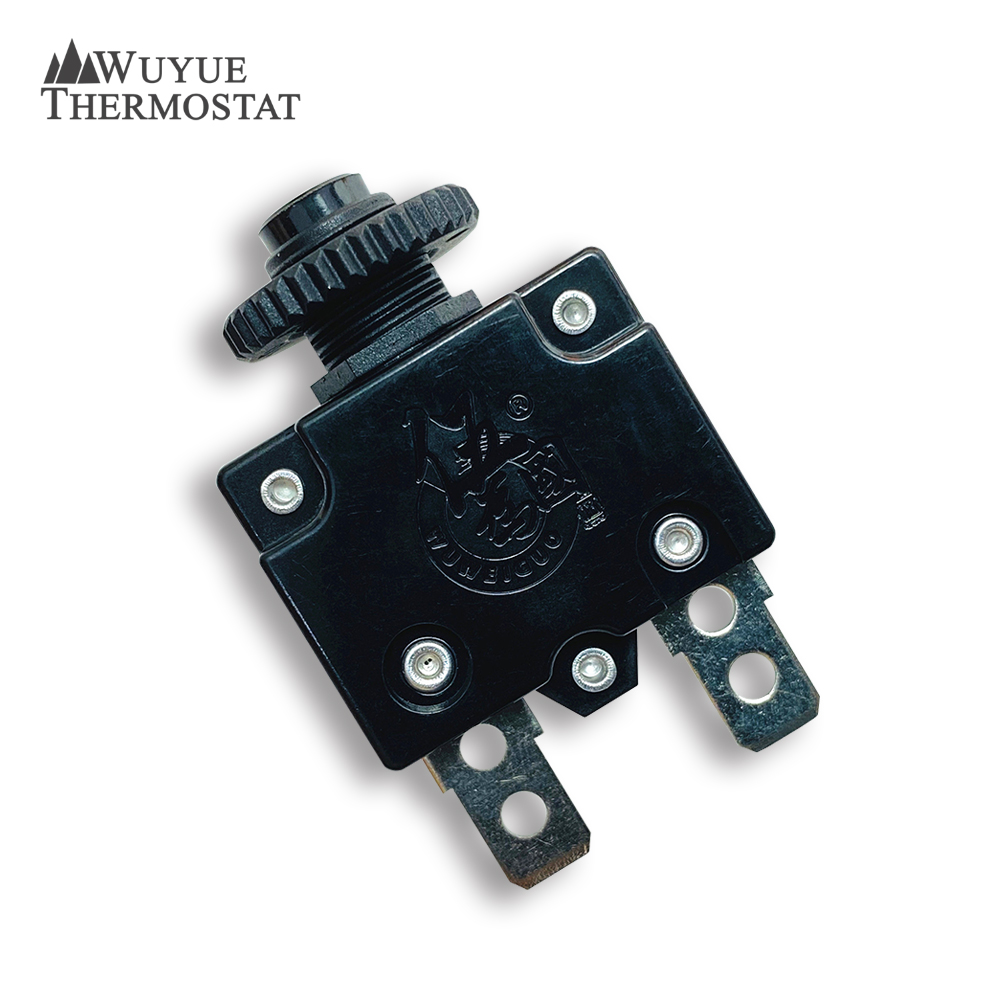

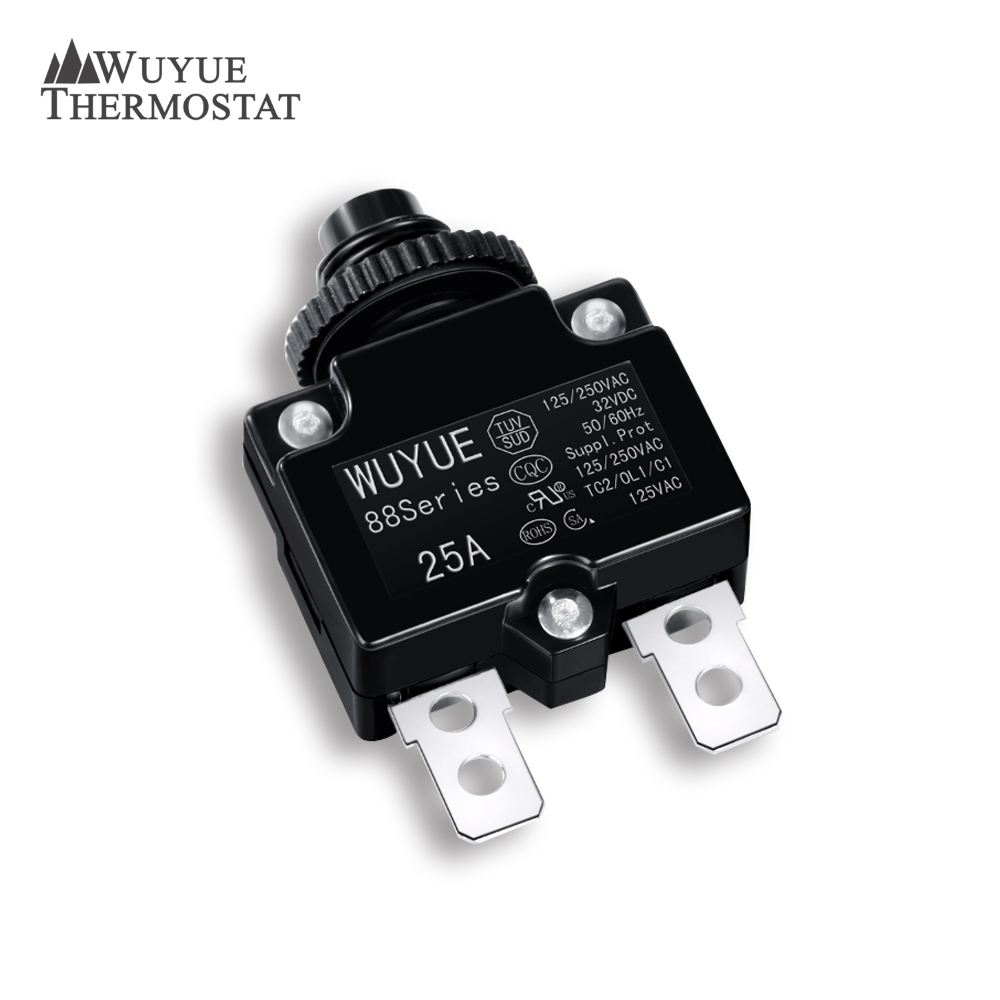

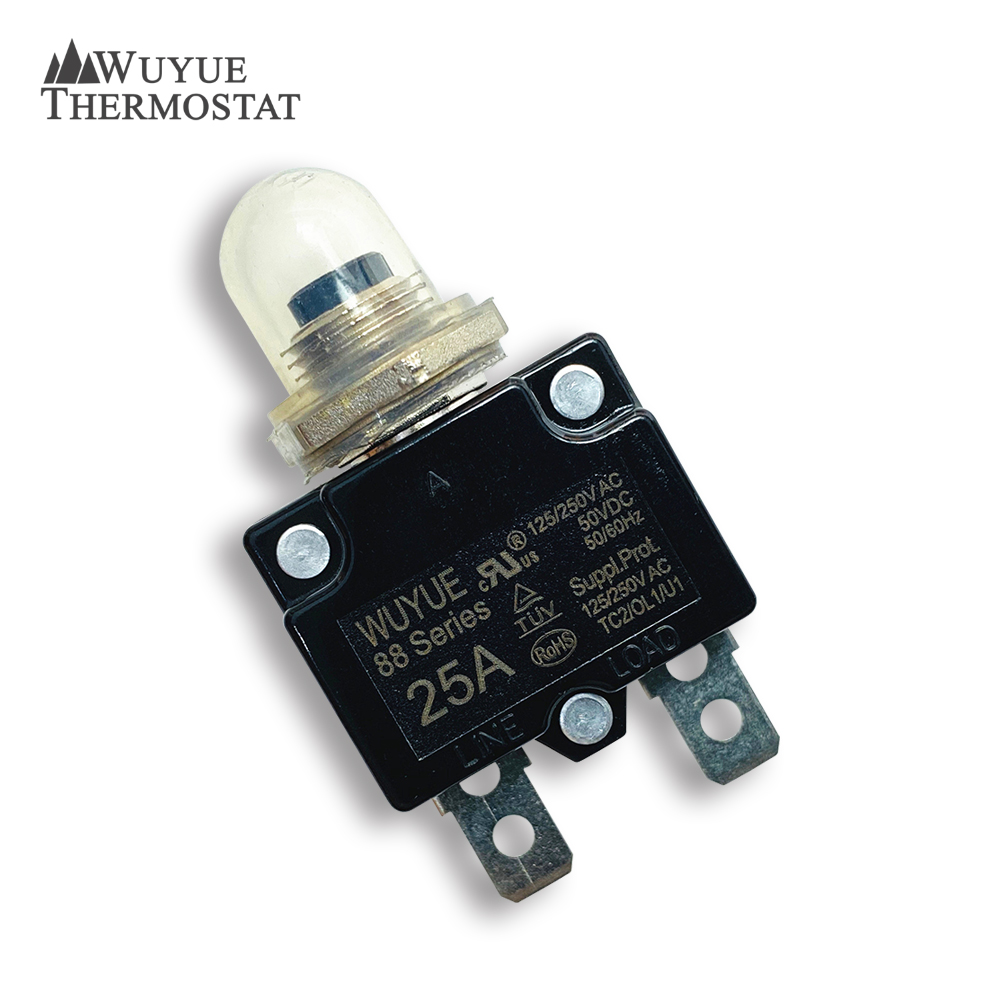

88 Series Overload Protector


Product Detail

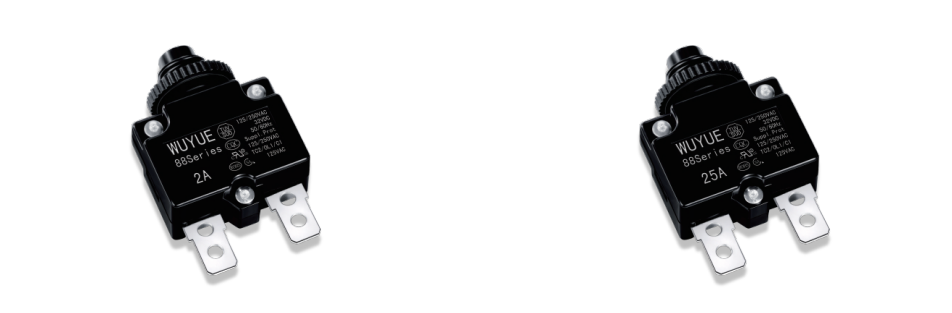

1630050151(1)

Special Features

Rated Current: 2A~25A

Rated Voltage: 125/250VAC   50VDC

Short-Circuit Test: 250VAC  1000A

Hi-pot test: 1,500VAC/min

Overload capacity: 10 times rated current

Voltage degradation: Less than 0.25V

Insulation Resistance: More than 500MΩ

Terminal Temperature rise: Stable at 25℃,

    Temperature Rise <65K at 100% rated current

Reset Time: in 60 seconds

Reset Method: Manual

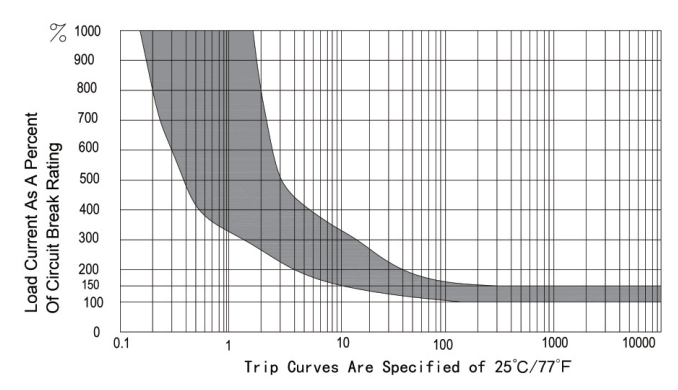

Test Standard(25℃)

100% Rated Current: No trip Off

150% Rated Current: Trip in 1 hour

200% Rated Current: 4~40 seconds trip off

300% Rated Current: 1.2~15 seconds trip off



Derating Factor

Temperature

Rating Amp

60℃

*0.6

50℃

*0.7

40℃

*0.8

30℃

*0.9

25℃

*1.0

20℃

*1.1

10℃

*1.3

0℃

*1.5



Max Resistance V.S. Current Rating at 25℃

Current Rating In Amp

Maximum Resistance In Ohms

2~4 Amp

<0.05

5~6 Amp

<0.04

7~8 Amp

<0.025

9~11 Amp

<0.02

12~13 Amp

<0.01

14~16 Amp

<0.008

17~25 Amp

<0.007

Application

Lower power generator          Air compressor          Compressor          Electric car

Power tools                               Extension cable          Transformer

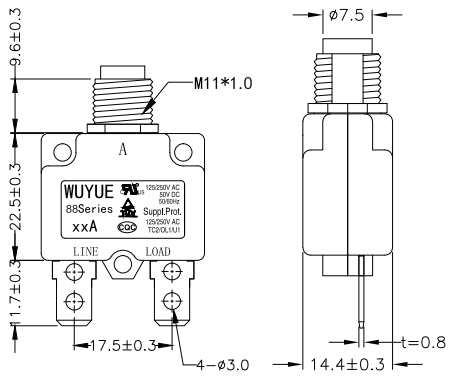

Dimensional Drawings
