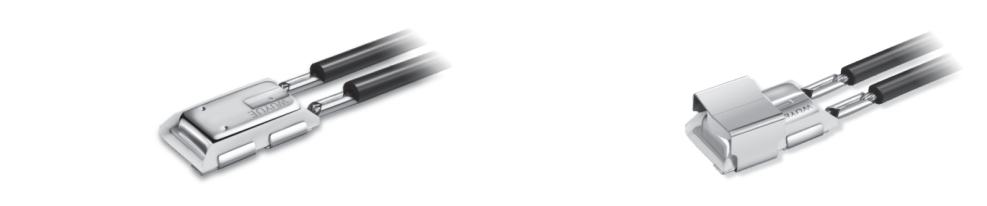

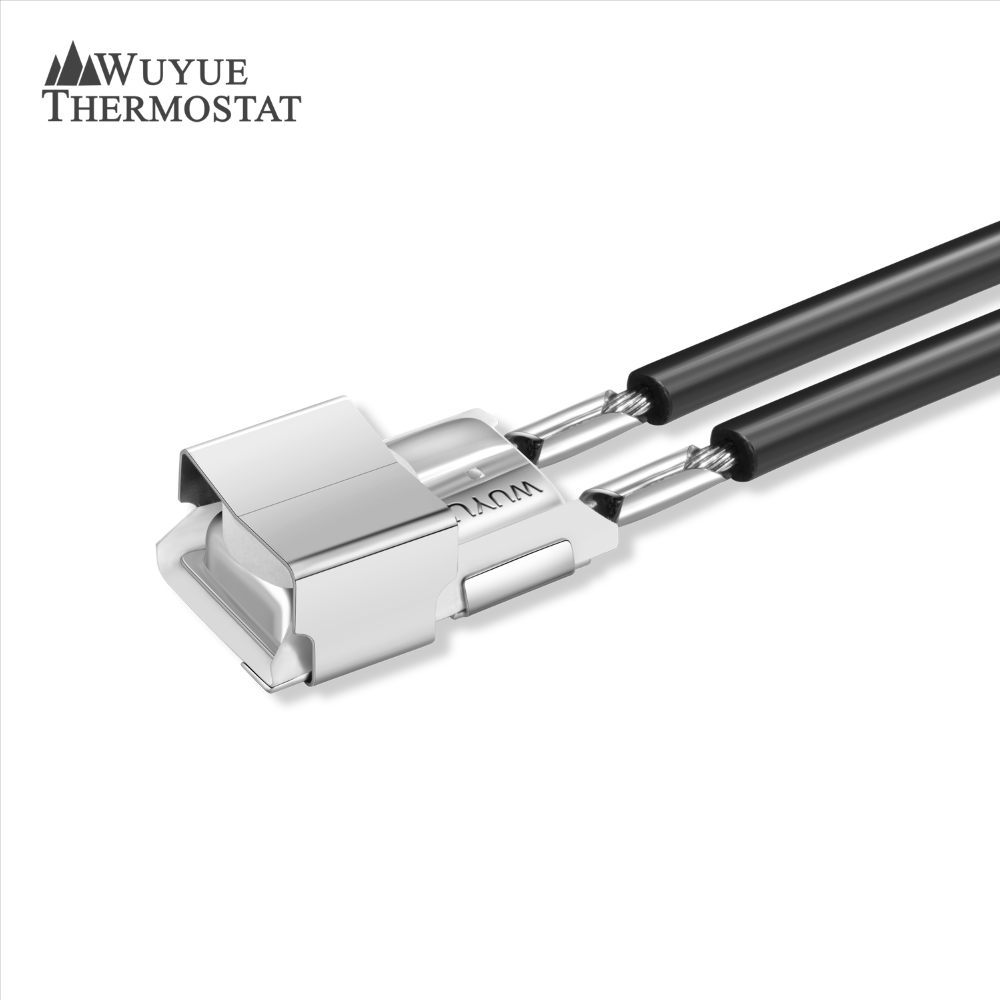

3MPE+PTC AC thermal protector with PTC
Special Features
Self holding and time-delay protection;
Providing higher safety protection;
Applicable to protect abnormal operation of motor;
Casing seal to prevent substances such as insulation of motor.
Electrical Specifications
45A / 12V DC 20A / 24V DC 18A / 250V AC 28A / 125V AC
R/T 25 ℃ Current Testing Standards: 4~10S (Or Customized)
Temperature Range and Tolerance
| Operating Temperature | 50~180℃ |
| Operating Temperature Tolerance | ±5℃， ±7℃ |
Working Principle
3MPE Thermal protector is connected to PTC in parallel, then connecting to application in series. PTC doesn’t general high temperature when the application running normally.
When the application works abnormally, which causes the ambient temperature to exceed the prescribed value, the protector will open. Then, the current flows through PTC. Since PTC has a very high resistance, the current assigned to the application will be too low to start it. Meanwhile, the heat generated by PTC will remain the protector open until the power is unplugged.
After the power is unplugged, the ambient temperature will decrease and then, the protector will closed again.
Application
Window Motor Wiper Motor Car Seat Motor Skylight Motor
Soybean Milk Machine Juice Machine Food Processer Noodle Machine

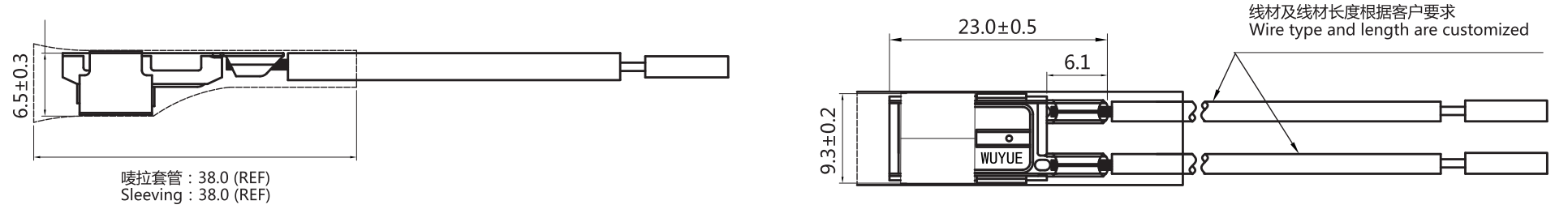

Dimensional Drawing
