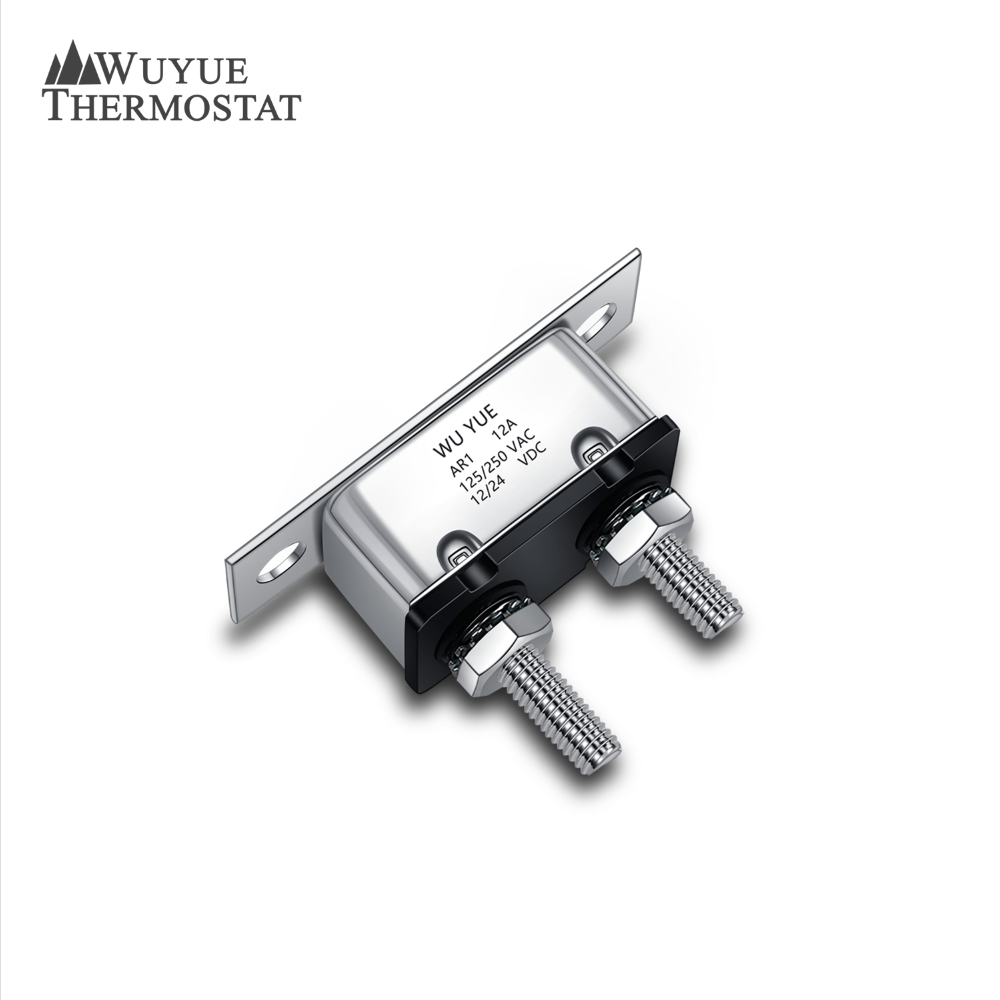

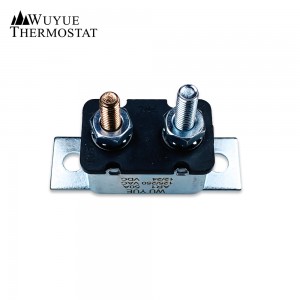

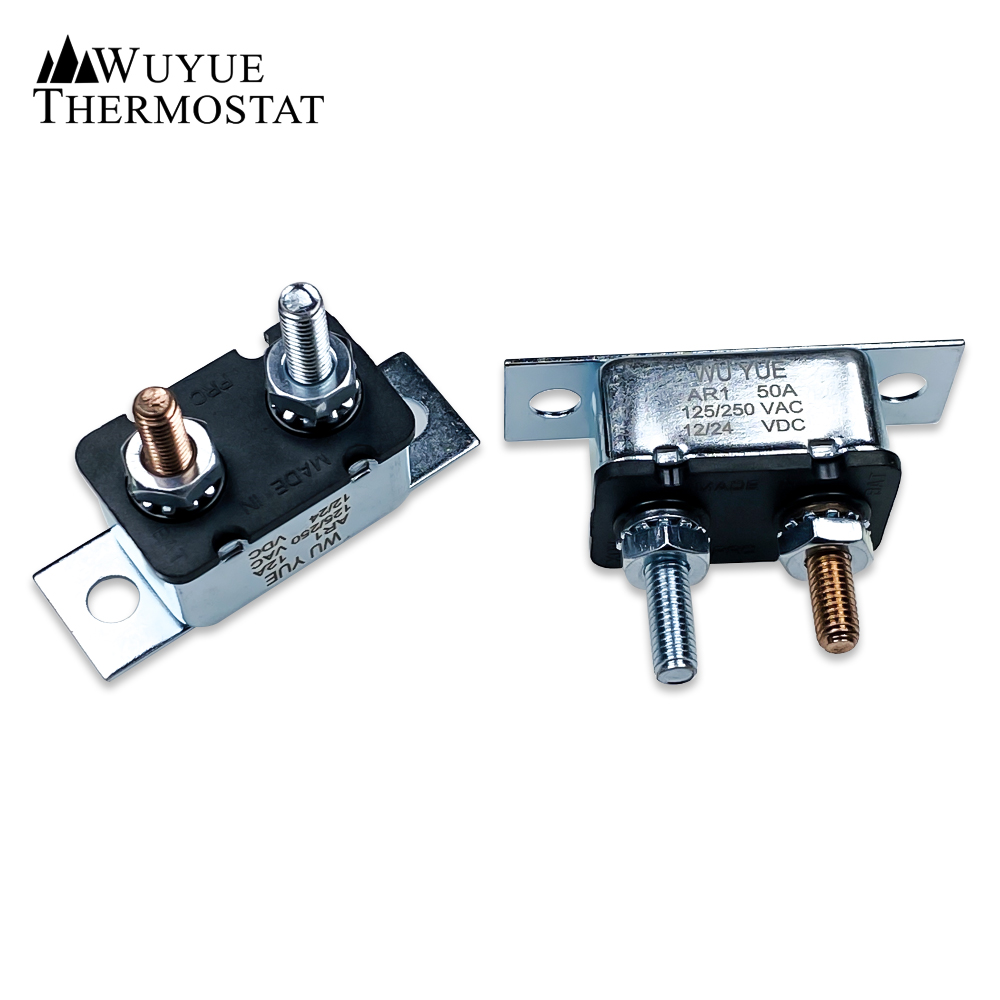

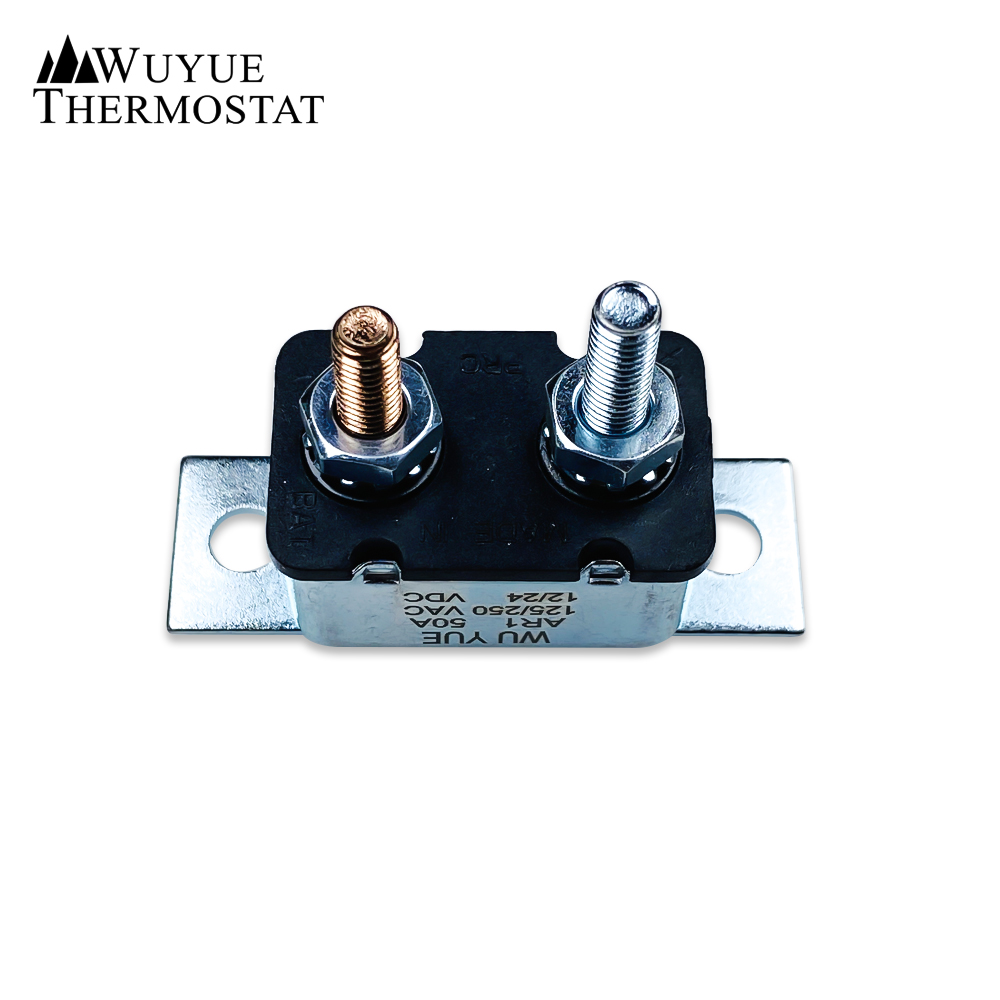

AR1 Series overload protector for various types of motor

Short Description:

AR1 Series Overload Protector


Product Detail

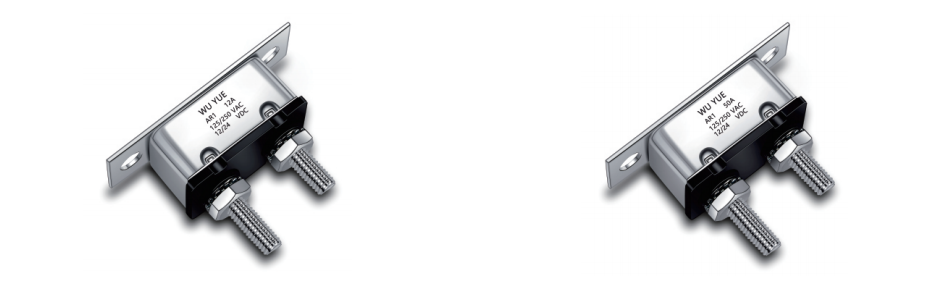

1630050314(1)

Special Features

Rated Current: 3A~50A

Rated Voltage: 125/250VAC   50VDC

Short-Circuit Test: 250VAC*1000AM 250VAC*200A

Hi-pot test: 1,500VAC/min

Overload capacity: 10 times rated current

Voltage degradation: Less than 0.25V

Insulation Resistance: More than 500MΩ

Terminal Temperature rise: Stable at 25℃,

    Temperature Rise <65K at 100% rated current

Reset Time: in 60 seconds

Reset Method: Manual

Test Standard(25℃)

100% Rated Current: No trip Off

150% Rated Current: Trip in 1 hour

200% Rated Current: 4~40 seconds trip off

300% Rated Current: 1.2~15 seconds trip off



Derating Factor

Temperature

Rating Amp

60℃

*0.5

50℃

*0.6

40℃

*0.72

30℃

*0.85

25℃

*1.0

20℃

*1.1

10℃

*1.25



Max Resistance

3A~4A

0.120

5A~6A

0.075

7A~8A

0.050

9A~11A

0.025

12A~13A

0.015

14A~16A

0.010

17A~20A

0.008

21A~25A

0.007

26A~30A

0.006

31A~40A

0.005

Application

Lower power generator          Air compressor          Compressor          Electric car

Power tools                               Extension cable          Transformer
