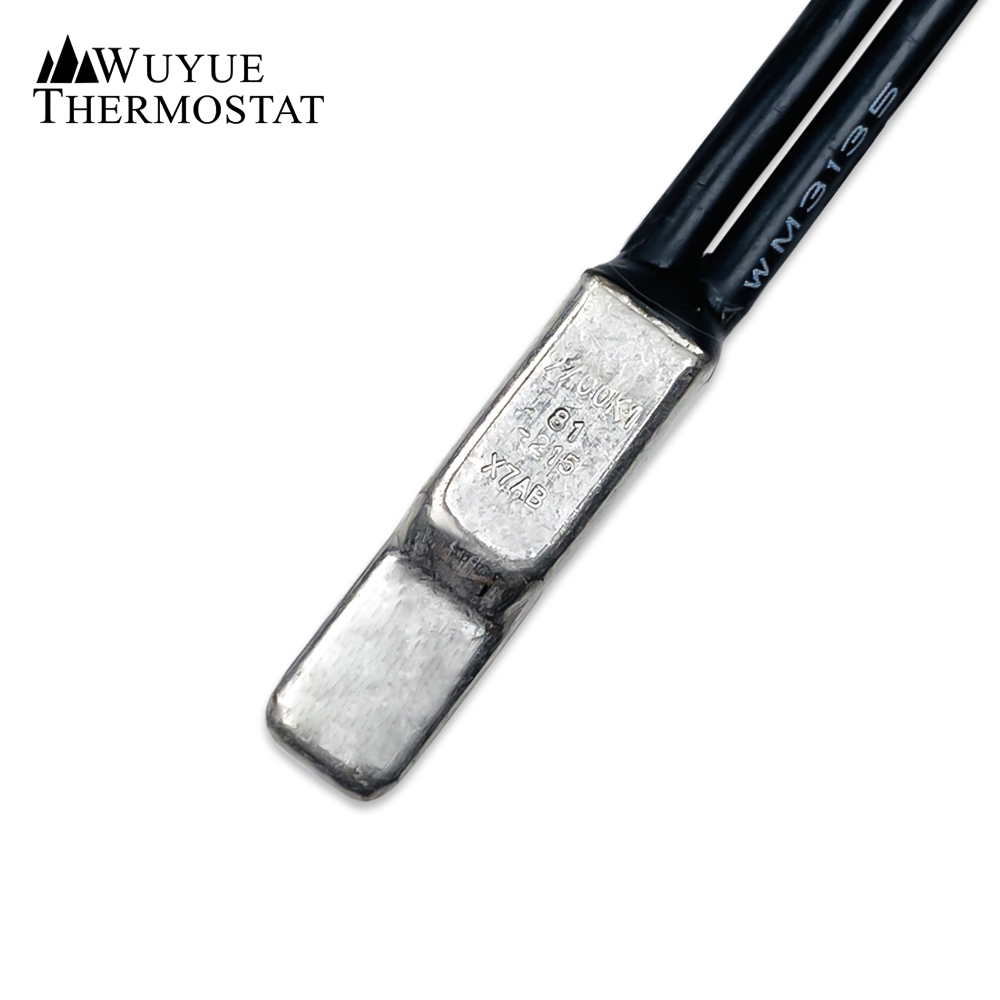

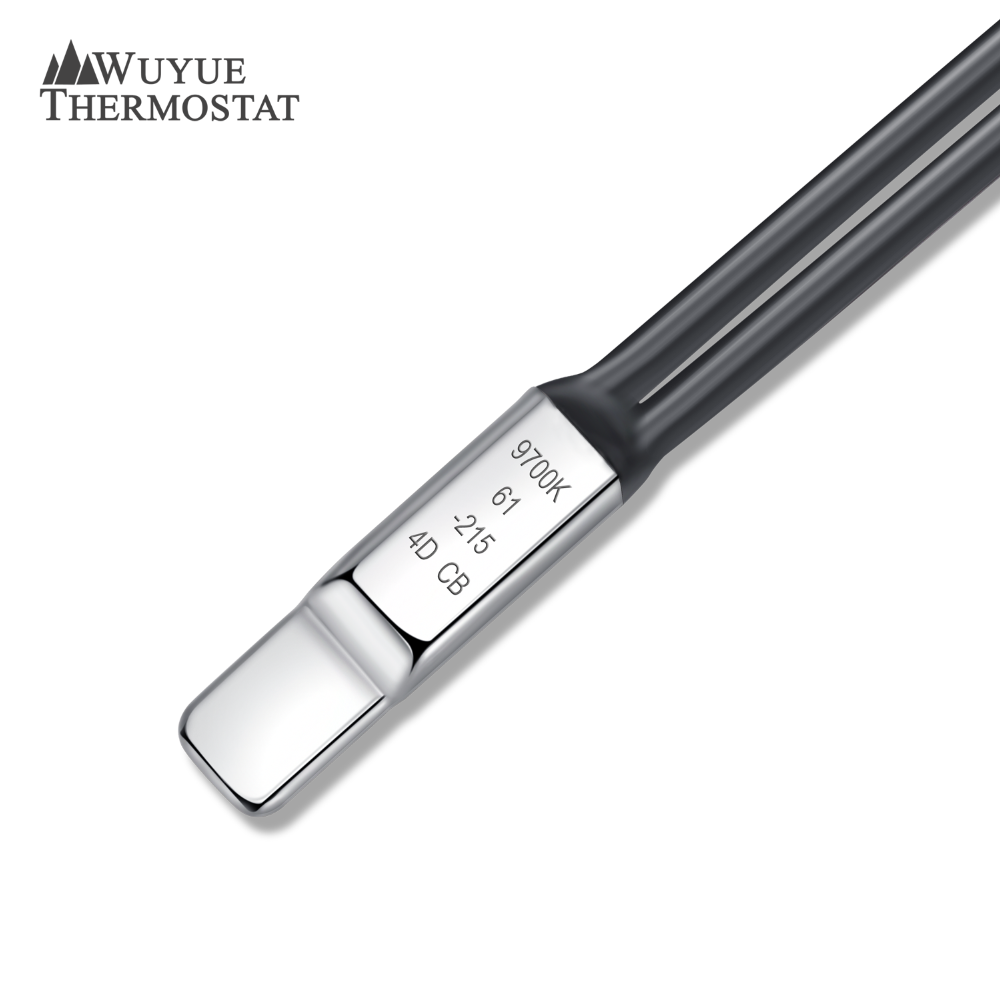

9700K Heating element protector

Short Description:

9700K is a reliable and precise thermal protector with big capacity. Small size and sealed steel housing. It can be easily fixed and widely used to electrical heating tube and other many applications.


Product Detail

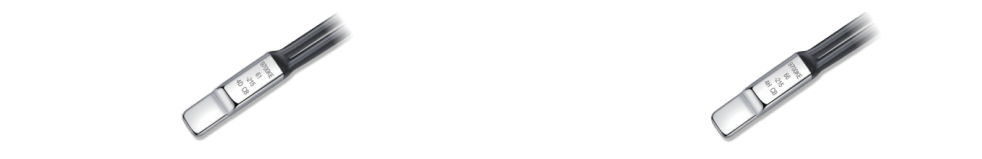

1630048460(1)

Special Features

Has induced current and temperature sensing movement of dual performance;

Sealed enclosure designed to ensure internal components from dipping leakage, for a variety of dipping process (such as vacuum impregnation etc.);

Precise operation of the operating temperature and the creep phenomenon does not occur;

Riveting to follow a variety of lengths of wire with customer demand;

Each part ROHS environmental standards are strictly enforced.

Electrical Specifications

18A / 24V DC                    13A / 250V AC                    18A / 125V AC

Temperature Encoding table

Temperature Code

Action Temperature

Reset Temperature

9700K 55

55℃

45℃

9700K 56

60℃

46℃

9700K 952

65℃

49℃

9700K 920

70℃

51℃

9700K 51

75℃

53℃

9700K 91

80℃

55℃

9700K 61

85℃

57℃

9700K 21

90℃

59℃

9700K 31

95℃

62℃

9700K 26

100℃

64℃

9700K 16

105℃

67℃

9700K 36

110℃

70℃

9700K 41

115℃

73℃

9700K 01

120℃

76℃

9700K 81

125℃

79℃

9700K 11

130℃

83℃

9700K 06

135℃

86℃

9700K 66

140℃

90℃

9700K 76

145℃

94℃

9700K 46

150℃

96℃

9700K 155

155℃

101℃

9700K 160

160℃

105℃

Application

Solar heaters                    Heating elements                      Motor

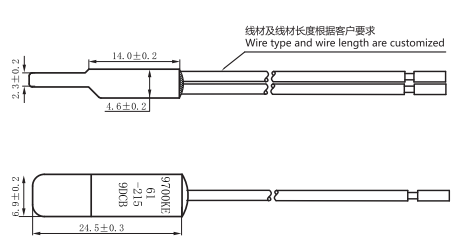

Dimensional Drawing

1628507949(1)
