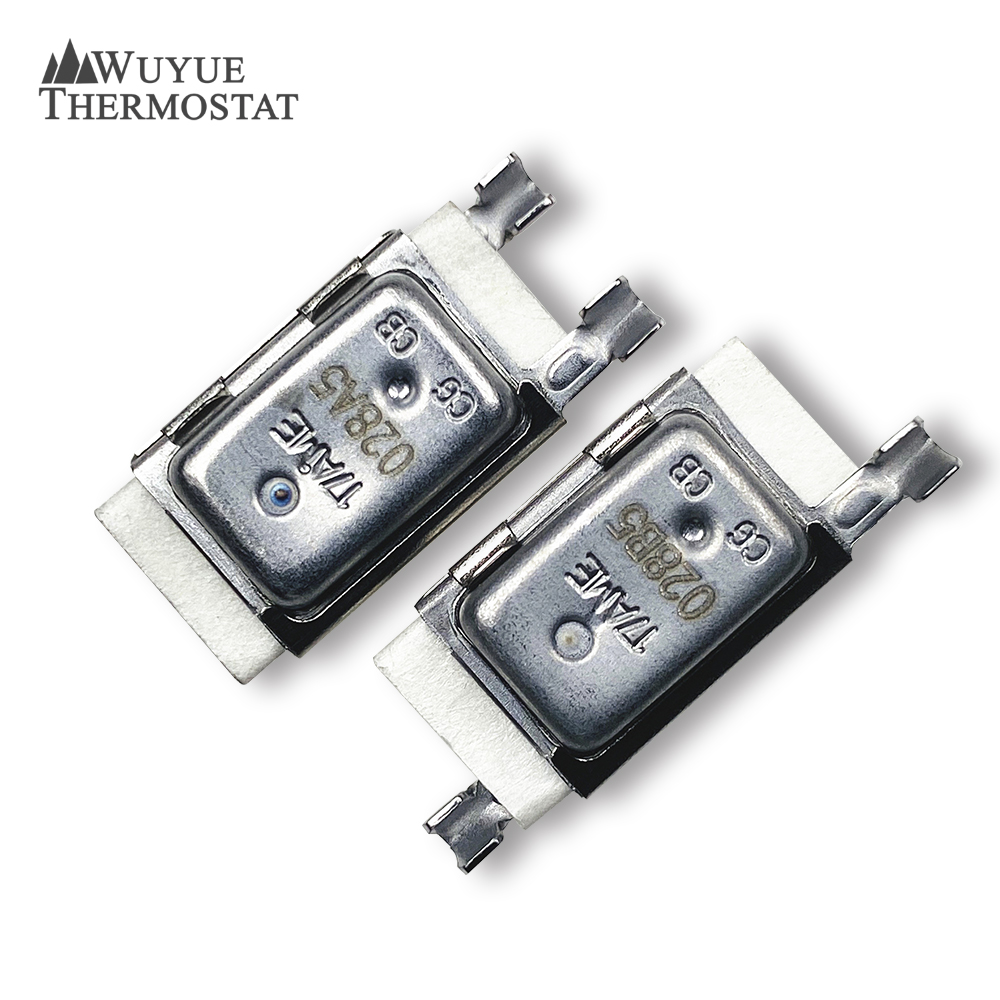

17AME+PTC Self hold thermal protector

Short Description:

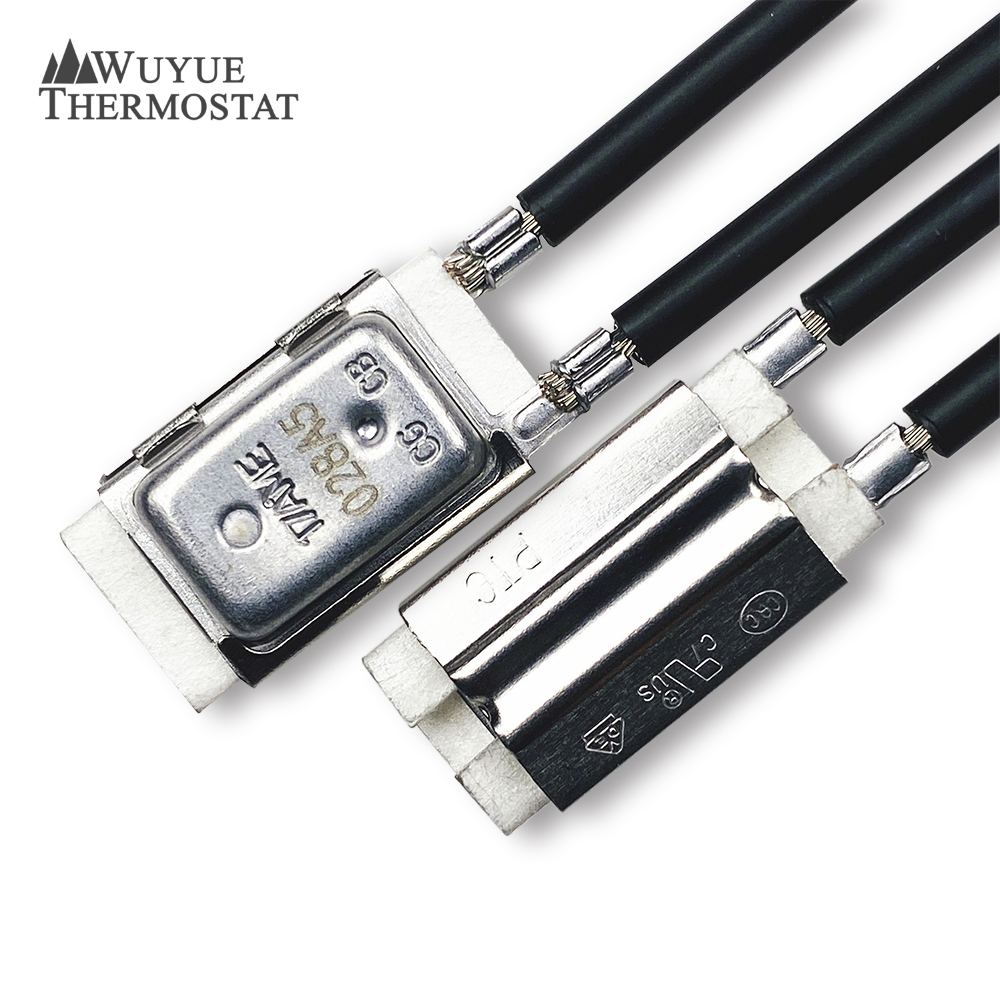

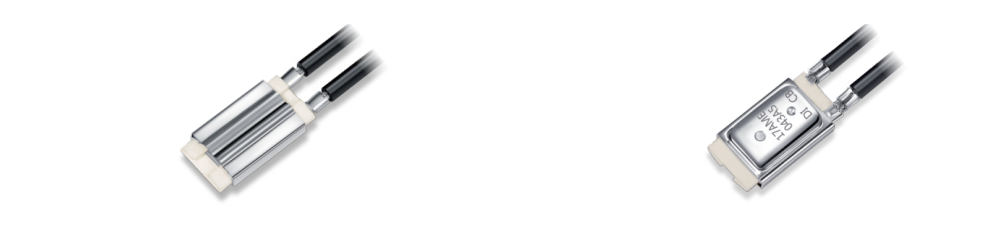

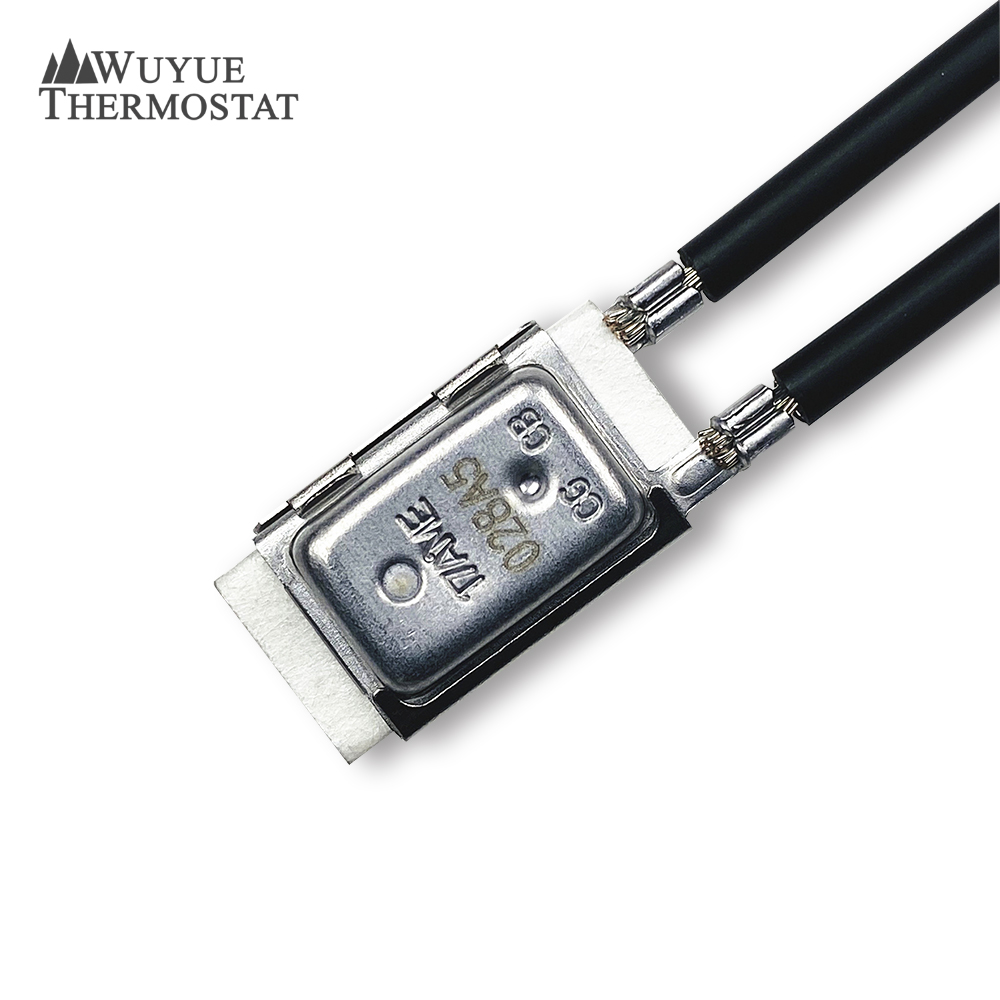

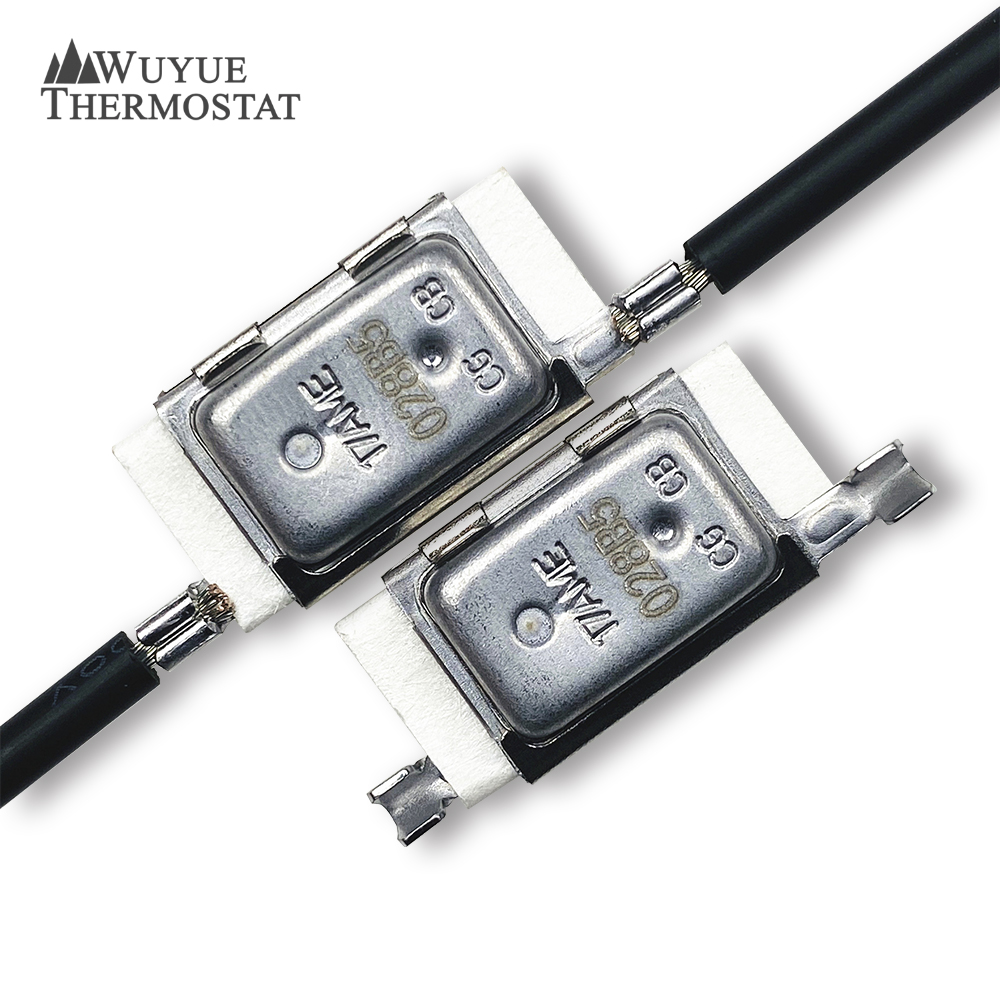

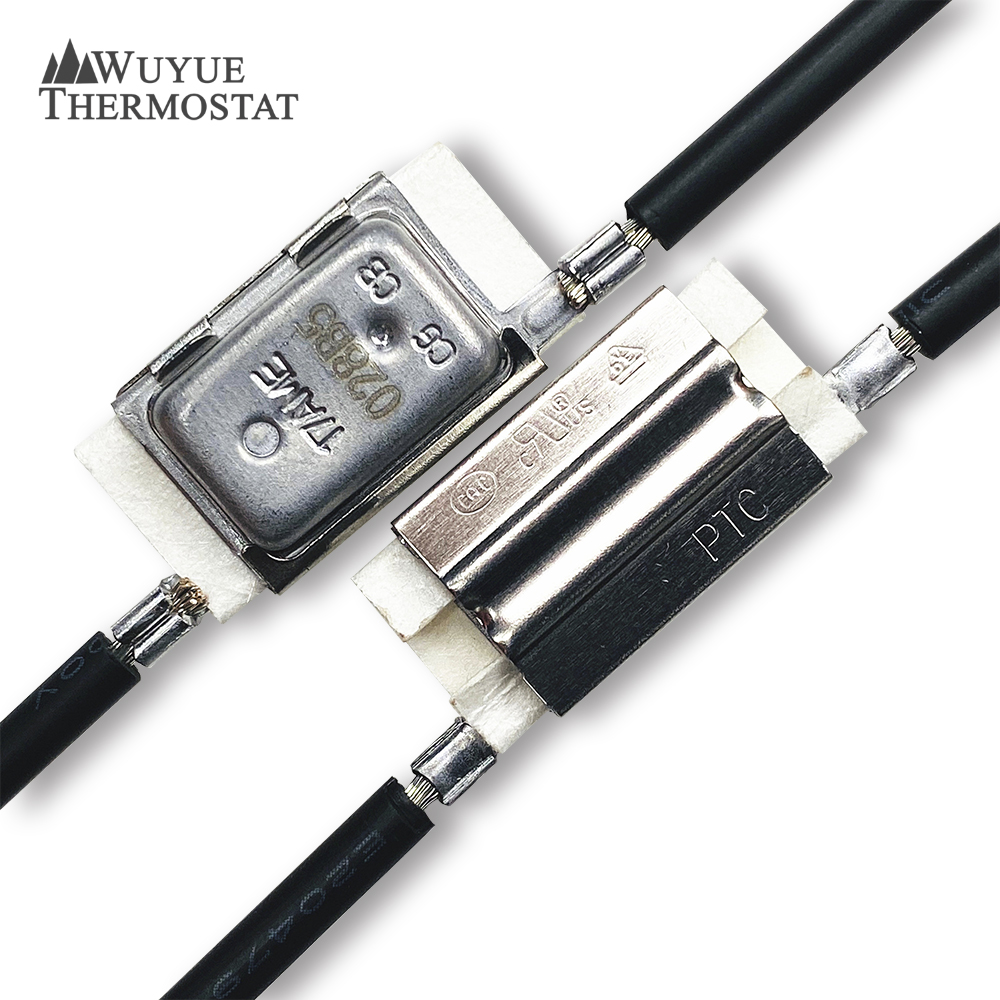

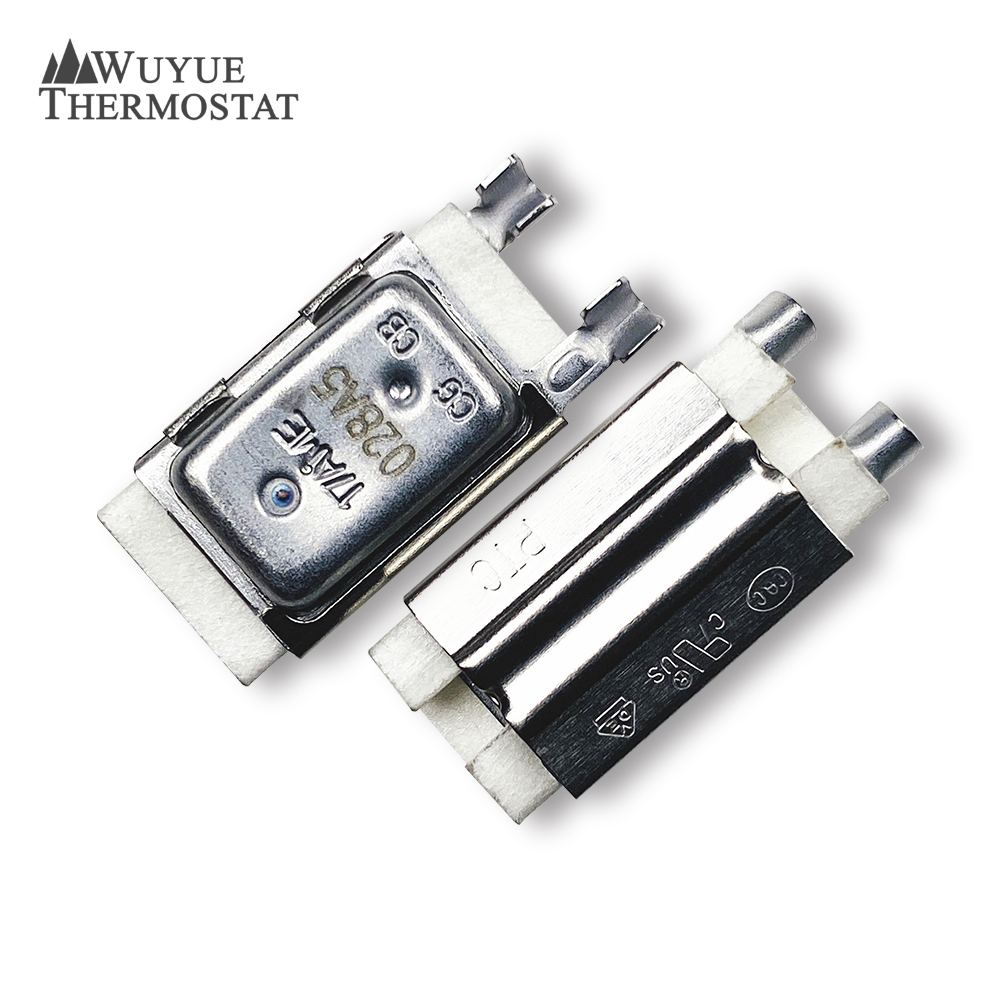

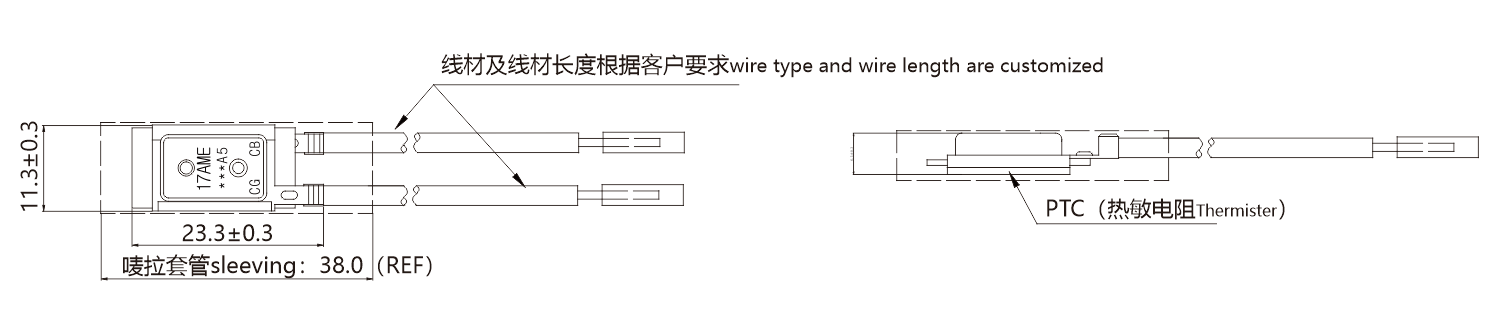

17AME+PTC is the assembly of a 17AME protector and a heating PTC. It has power cut and self-hold functions, which makes it safer than common auto reset model. It is applicable to the over-heat and over-current protection of vacuum cleaner, blender,mixer,grass cutter and electrical tools.

Send email to us

Product Detail

Special Features

With power-off protection, time delay protection function;

More safe and reliable performance;

Better suited to abnormal motor protection;

Casing seal to prevent insulating paint like substance immersion.

Working Principle

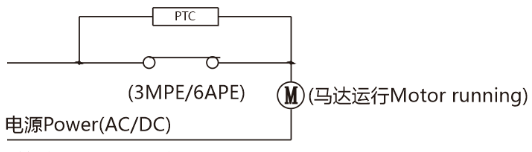

The protector is connected to PTC in parallel, then connected to Application in series. When the application is working normally, the current will flow through protector. PTC will not work.

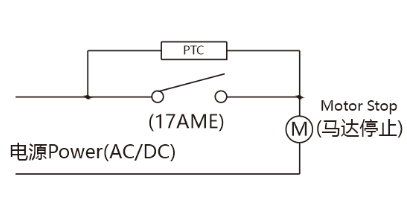

When the application works abnormally, which causes the ambient temperature exceeds the prescribed value, the protector will open. Then, the current flows through PTC. Since PTC has a very high resistance, the current assigned to the application will be too low to start it. Meanwhile, the heat generated by PTC will remain the protector open until the power is unplugged.
After the power is unplugged, the ambient temperature will decrease and then, the protector will close again.

Electrical Specifications

CG	250VAC/10A, 125VAC/20A, 24VDC/20A
DI	250VAC/15A, 125VAC/25A, 24VDC/25A
TD	250VAC/20A,125VAC/30A, 24VDC/30A
MP	250VAC/15A,125VAC/25A, 24VDC/25A

Temperature Range and Tolerance

Temperature Range	55℃~180℃
Operating Temperature Tolerance	±3℃，±5℃

Action Temperature Tolerance

Code	Tolerance
5	±5℃
3	±3℃

Temperature Code

No.	Off Temperature (℃)	On Temperature(℃)
018	55	38
019	60	40
020	65	45
021	70	50
022	75	55
023	80	57
024	85	60
025	90	62
026	95	65
027	100	67
028	105	70
029	110	72
030	115	75
031	120	78
032	125	82
033	130	85
034	135	90
035	140	93
036	145	95
037	150	100
038	155	102
039	160	105
040	165	110
041	170	115
042	175	118
043	180	120
