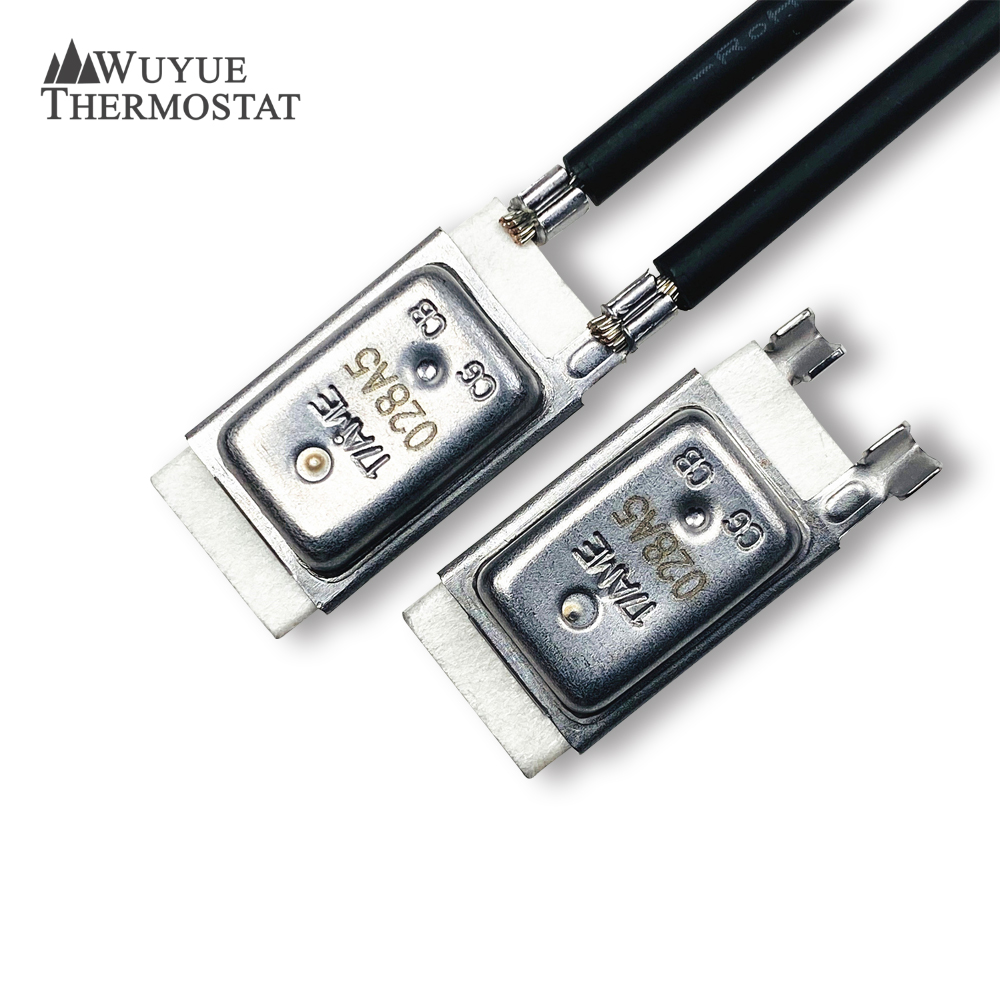

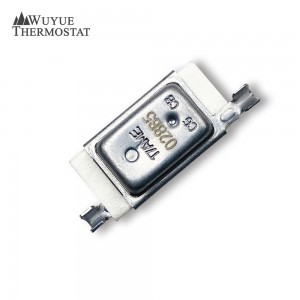

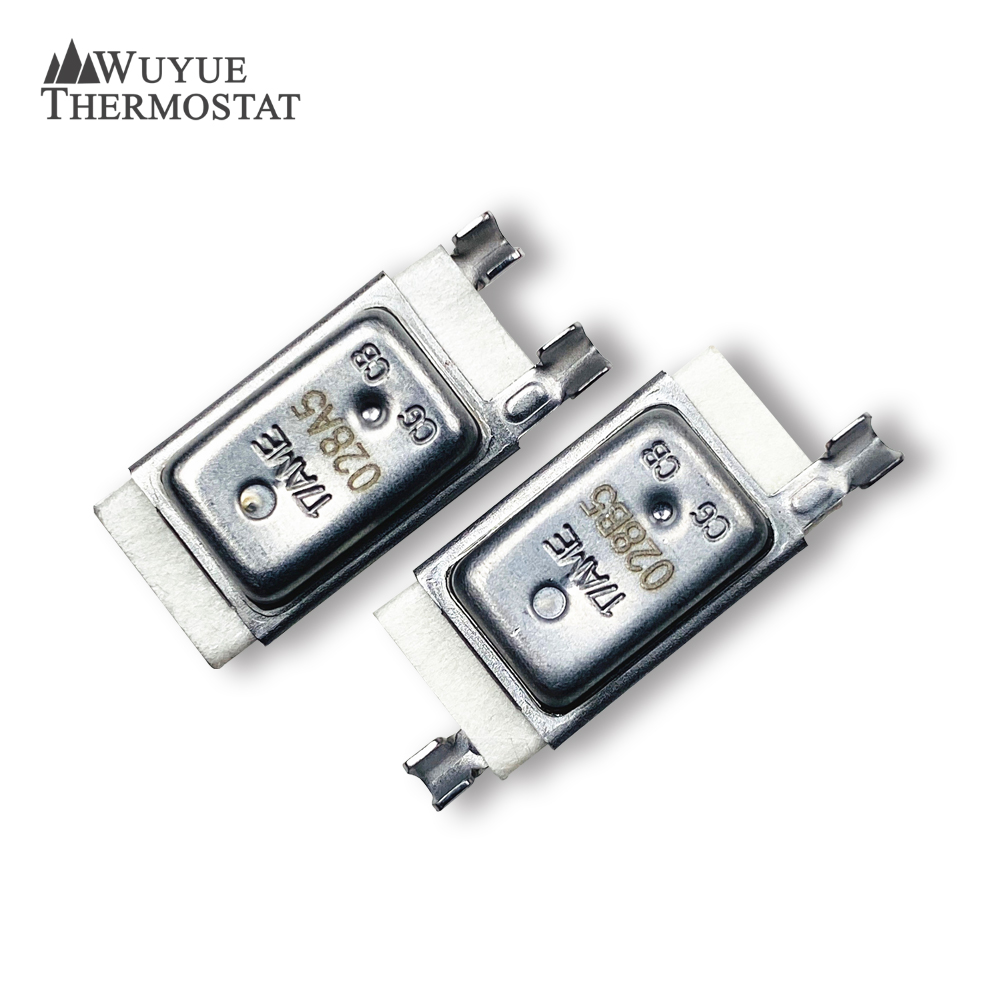

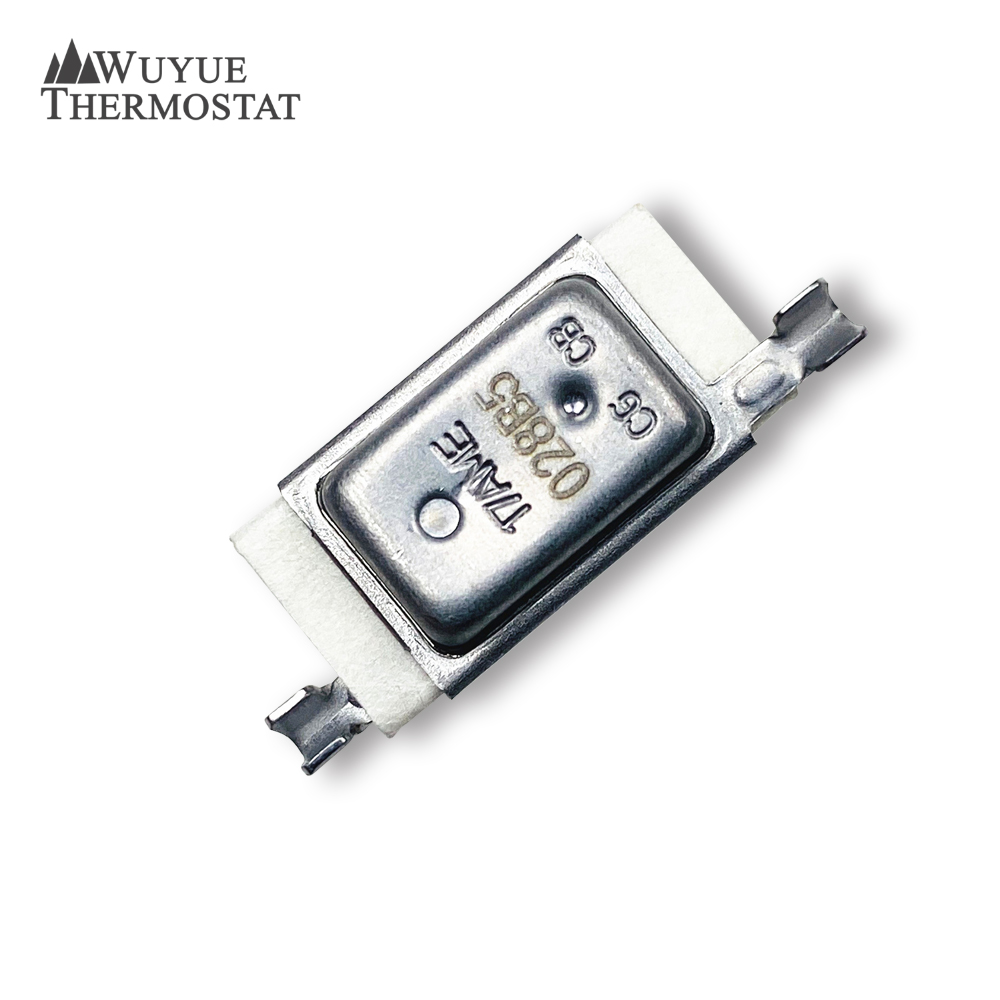

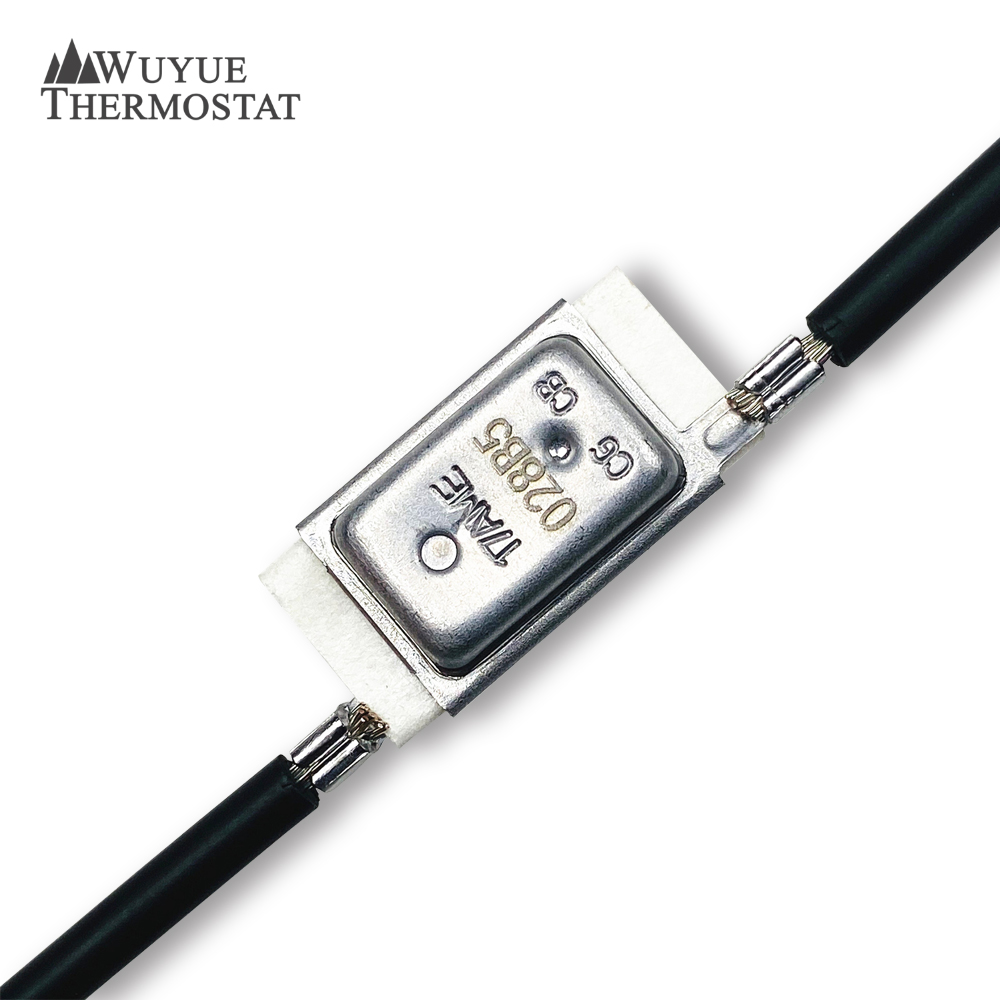

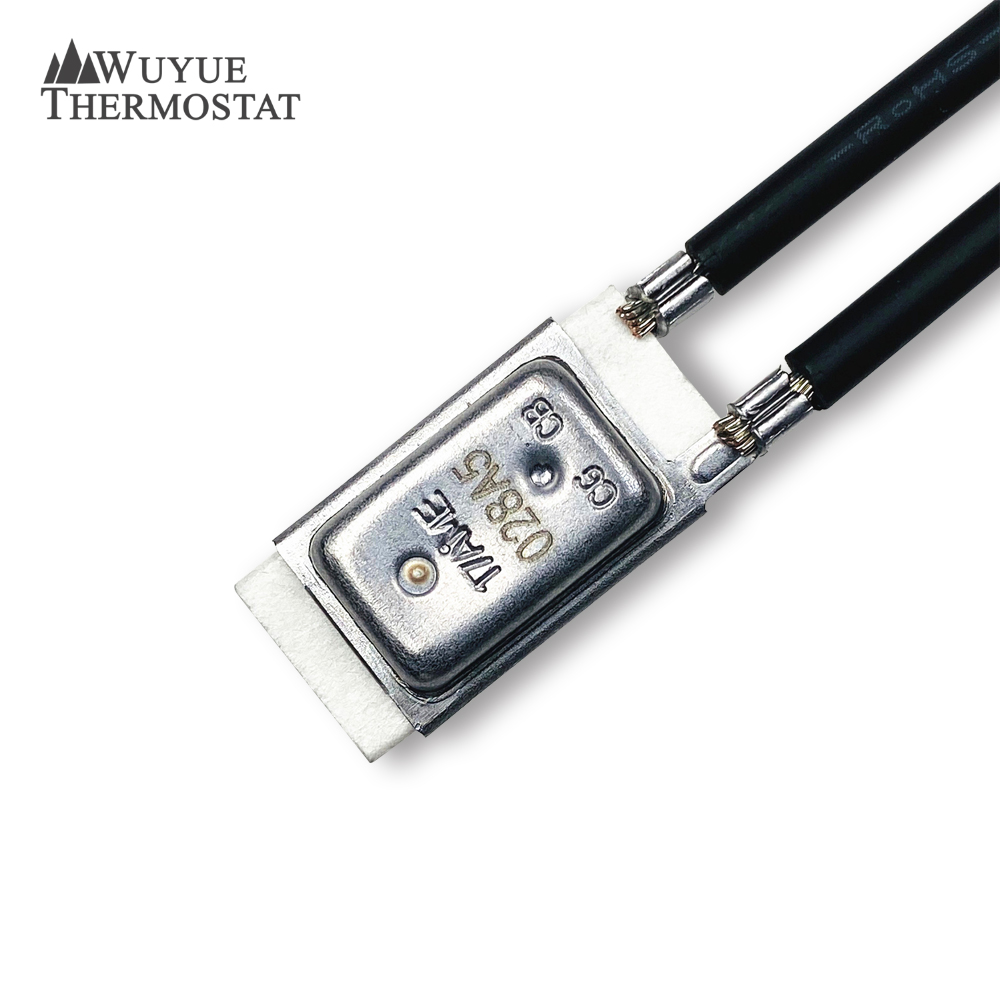

17AME Thermal protector

Short Description:

17AME is a both temperature and current sensitive protector. It has a small size but high capacity. The applications are motors, lighting and home appliances.


Product Detail

1630046183

Special Features

Small size design;

Each trip temperature is rigorously corrected and tested;

Bimetal 100% has fast escape;

Dual performance with induced current and induced temperature;

Wire type and wire length are customized;

Terminal are optional and customized;

Each part ROHS environmental standards are strictly enforced.

Action Temperature Tolerance

Code

Tolerance

5

±5℃

3

±3℃

Terminal Direction

Code

Terminal Direction

A

Terminals at the same end

B

Terminals at the opposite end

Electrical Specifications

CG

250VAC/10A, 125VAC/20A, 24VDC/20A

DI

250VAC/15A, 125VAC/25A, 24VDC/25A

TD

250VAC/20A,125VAC/30A, 24VDC/30A

MP

250VAC/15A,125VAC/25A, 24VDC/25A

Temperature Range and Tolerance

Temperature Range 55℃~180℃
Operating Temperature Tolerance ±3℃,±5℃

Temperature Code

No.

Off Temperature (℃)

On Temperature(℃)

018

55

38

019

60

40

020

65

45

021

70

50

022

75

55

023

80

57

024

85

60

025

90

62

026

95

65

027

100

67

028

105

70

029

110

72

030

115

75

031

120

78

032

125

82

033

130

85

034

135

90

035

140

93

036

145

95

037

150

100

038

155

102

039

160

105

040

165

110

041

170

115

042

175

118

043

180

120

Application

Various types of motors

Water pumps, Air compressors, Washing Machine

Electronic Ballast, HID ballasts, Lighting Fixtures

Heating pad, Car electric blankets, medical heating pad

Plastic machines, power tools, chargers, transformers

Household appliances, heating appliances

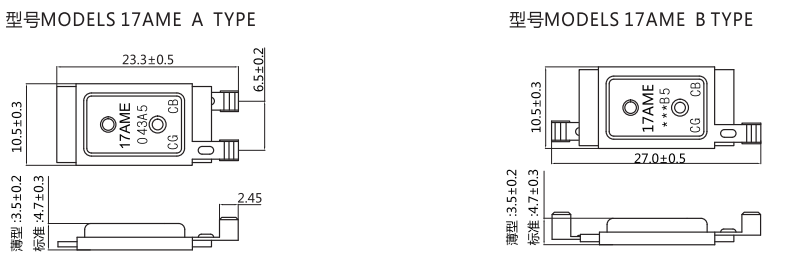

Dimensional Drawing

1628575200(1)

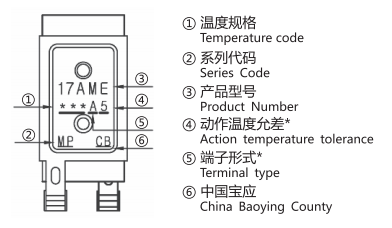

Product Marking

1628575277(1)
