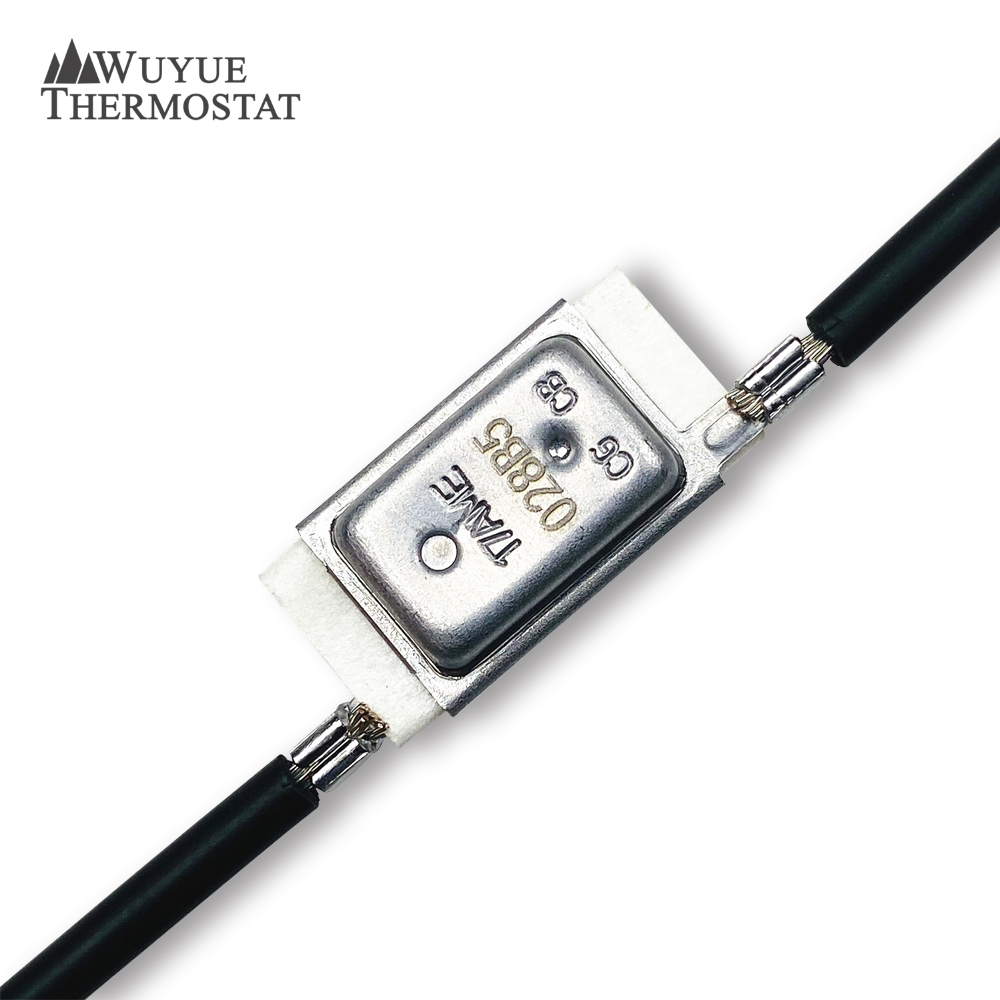

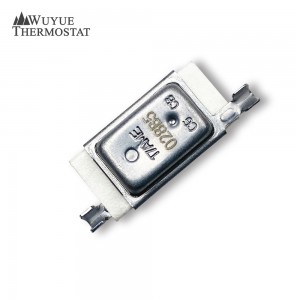

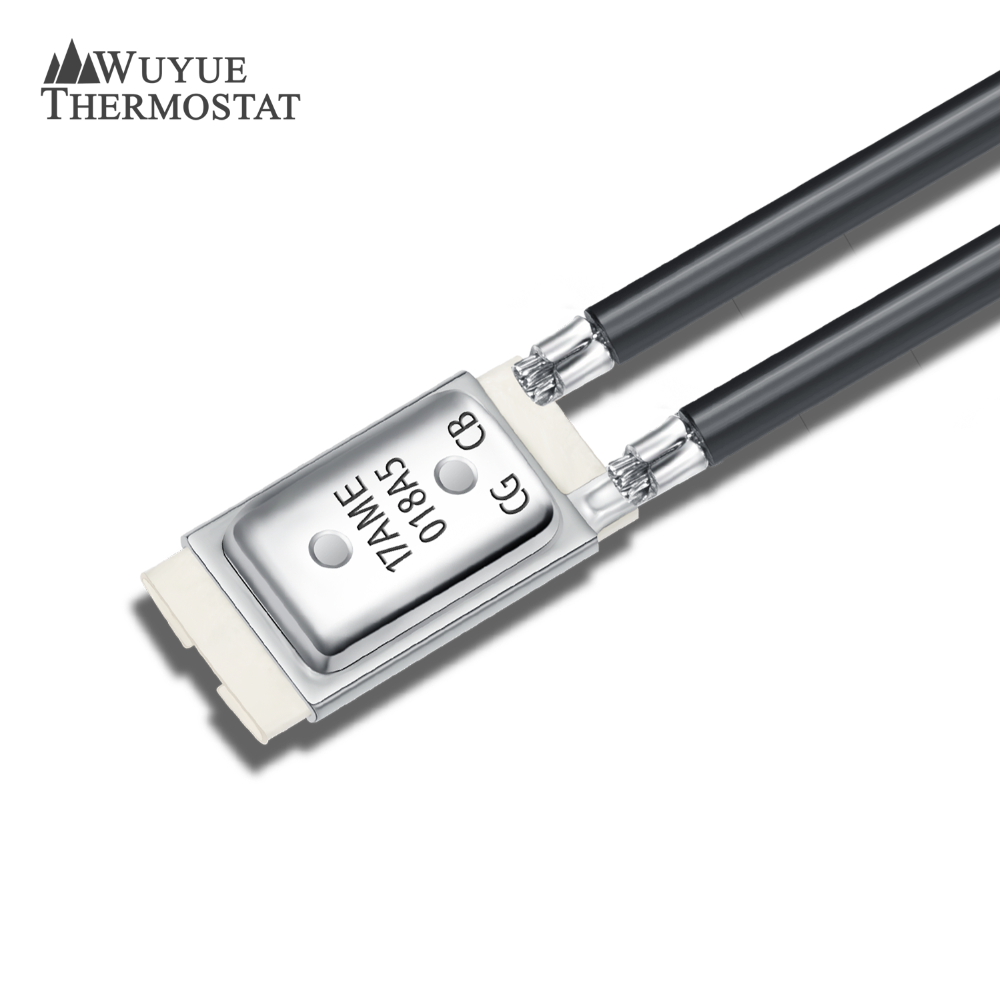

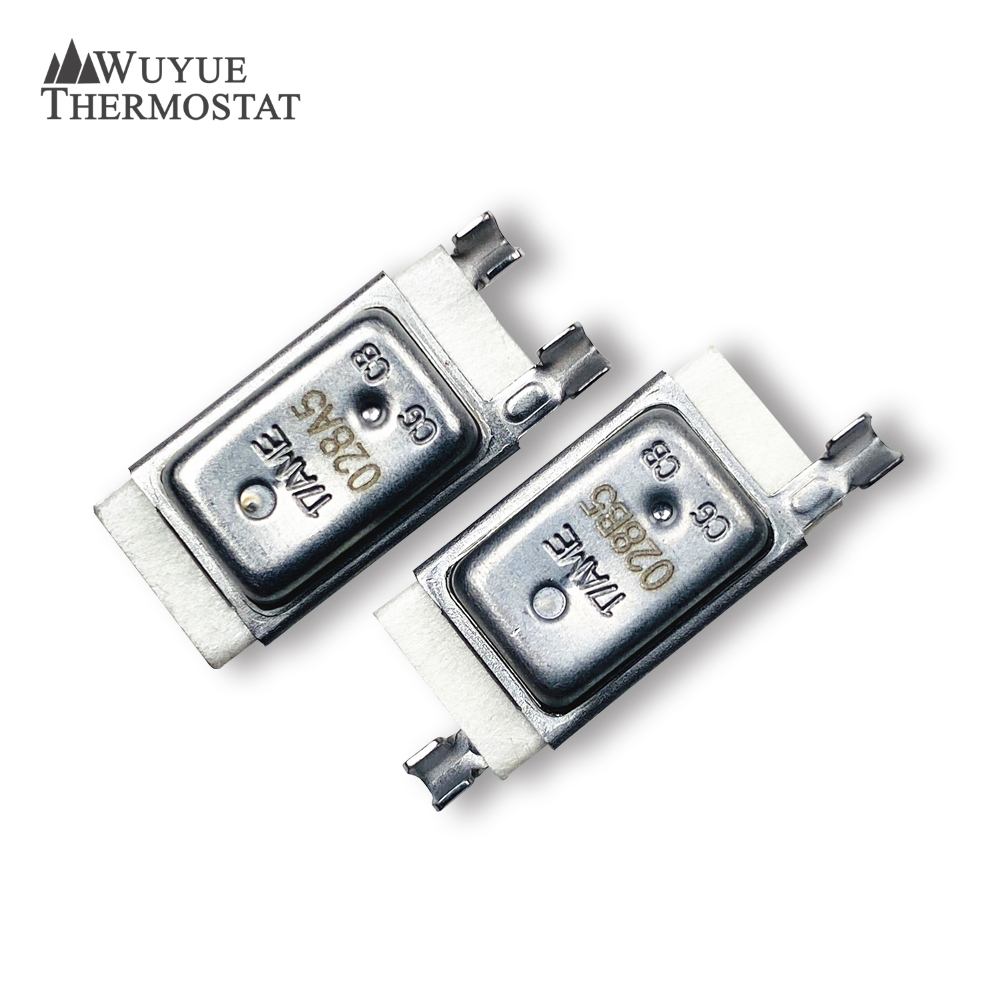

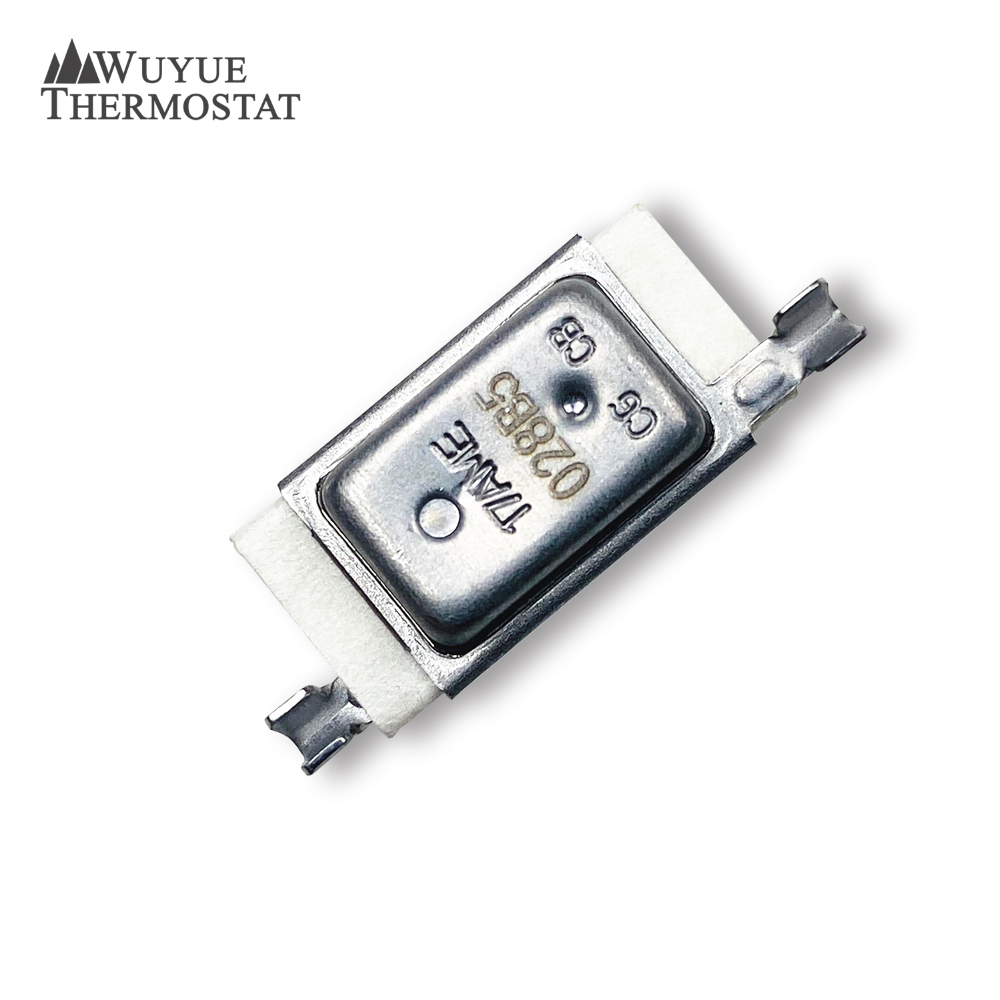

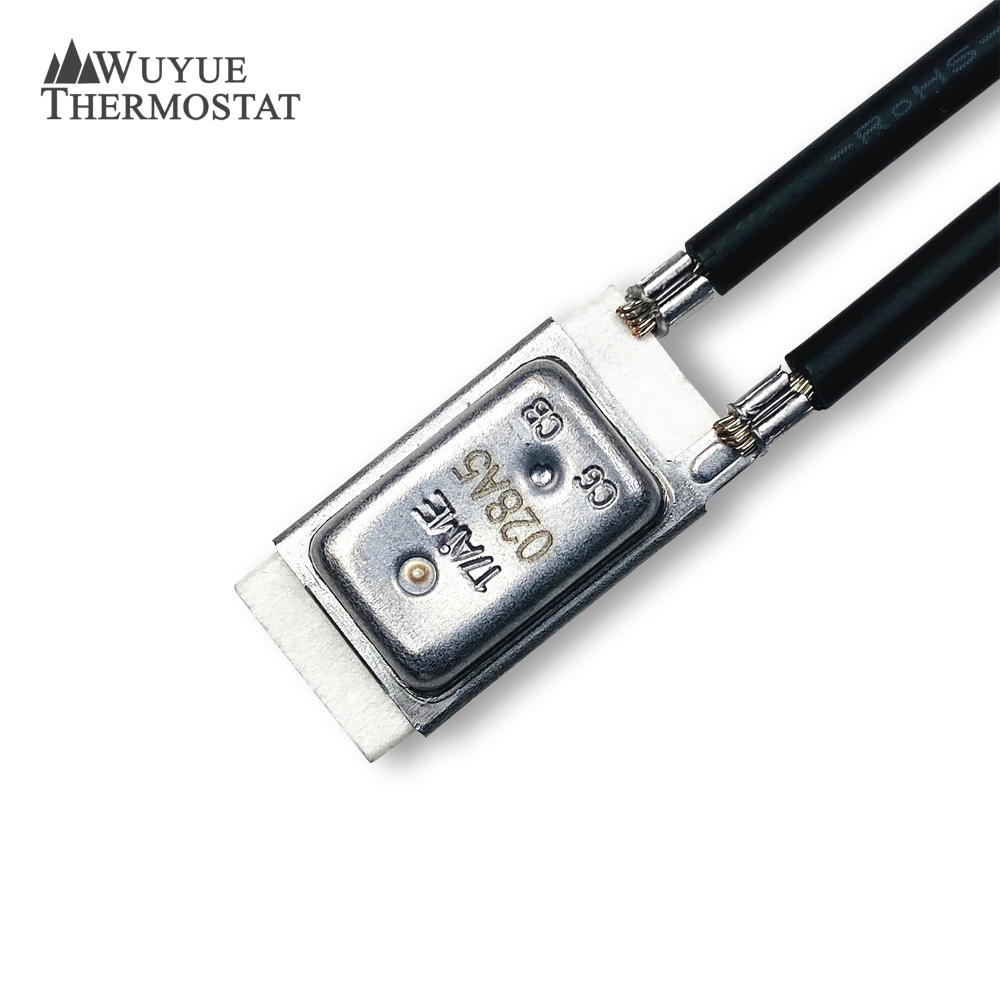

17AME Thermal Protector
Special Features
Small size design;
Each trip temperature is rigorously corrected and tested;
Bimetal 100% has fast escape;
Dual performance with induced current and induced temperature;
Wire type and wire length are customized;
Terminal are optional and customized;
Each part ROHS environmental standards are strictly enforced.
Action Temperature Tolerance
|
Code |
Tolerance |
|
5 |
±5℃ |
|
3 |
±3℃ |

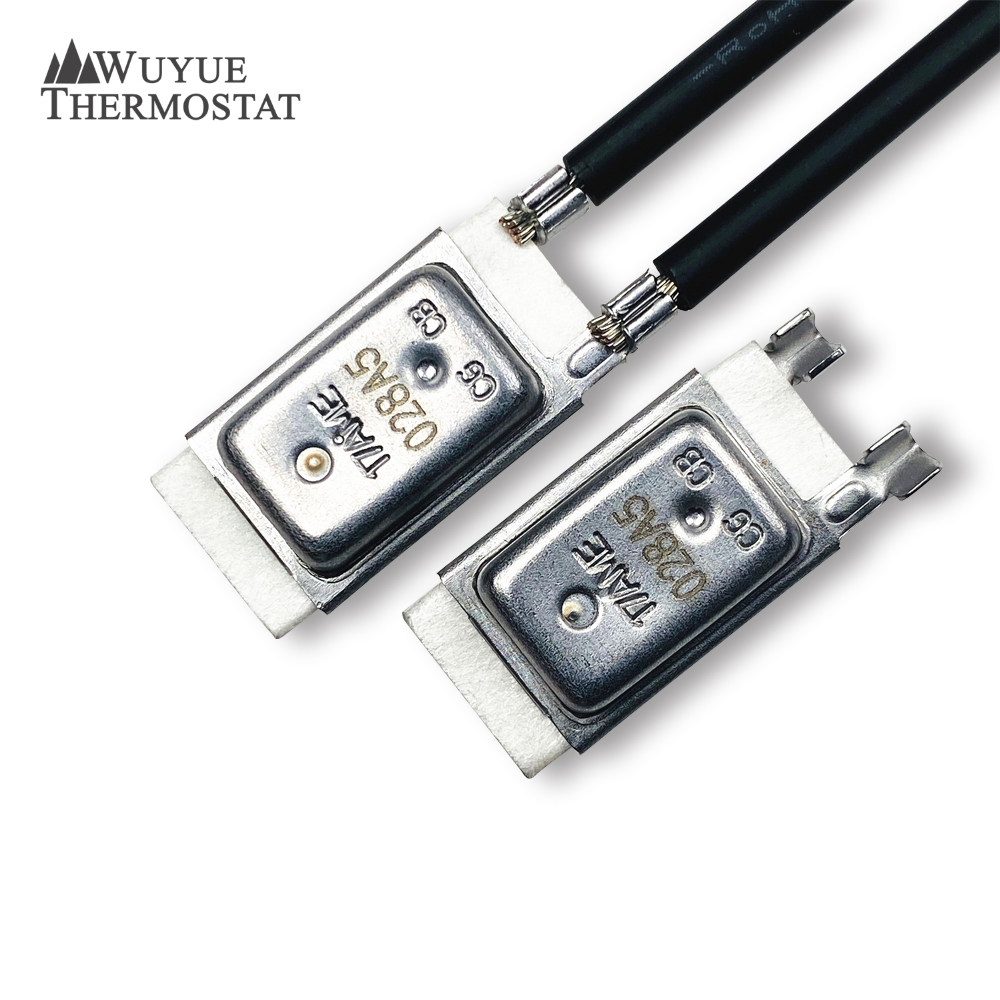

Terminal Direction
|
Code |
Terminal Direction |
|
A |
Terminals at the same end |
|
B |
Terminals at the opposite end |
Electrical Specifications
|
CG |
250VAC/10A, 125VAC/20A, 24VDC/20A |
|
DI |
250VAC/15A, 125VAC/25A, 24VDC/25A |
|
TD |
250VAC/20A,125VAC/30A, 24VDC/30A |
|
MP |
250VAC/15A,125VAC/25A, 24VDC/25A |
Temperature Range and Tolerance
| Temperature Range | 55℃~180℃ |
| Operating Temperature Tolerance | ±3℃，±5℃ |
Temperature Code
|
No. |
Off Temperature (℃) |
On Temperature(℃) |
|
018 |
55 |
38 |
|
019 |
60 |
40 |
|
020 |
65 |
45 |
|
021 |
70 |
50 |
|
022 |
75 |
55 |
|
023 |
80 |
57 |
|
024 |
85 |
60 |
|
025 |
90 |
62 |
|
026 |
95 |
65 |
|
027 |
100 |
67 |
|
028 |
105 |
70 |
|
029 |
110 |
72 |
|
030 |
115 |
75 |
|
031 |
120 |
78 |
|
032 |
125 |
82 |
|
033 |
130 |
85 |
|
034 |
135 |
90 |
|
035 |
140 |
93 |
|
036 |
145 |
95 |
|
037 |
150 |
100 |
|
038 |
155 |
102 |
|
039 |
160 |
105 |
|
040 |
165 |
110 |
|
041 |
170 |
115 |
|
042 |
175 |
118 |
|
043 |
180 |
120 |
Application
Various types of motors
Water pumps, Air compressors, Washing Machine
Electronic Ballast, HID ballasts, Lighting Fixtures
Heating pad, Car electric blankets, medical heating pad
Plastic machines, power tools, chargers, transformers
Household appliances, heating appliances

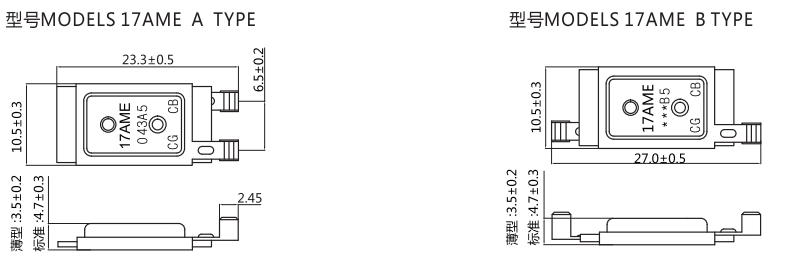

Dimensional Drawings

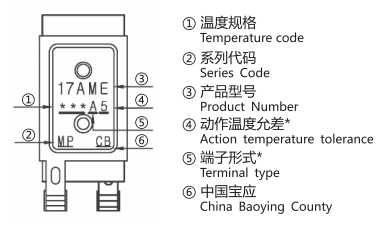

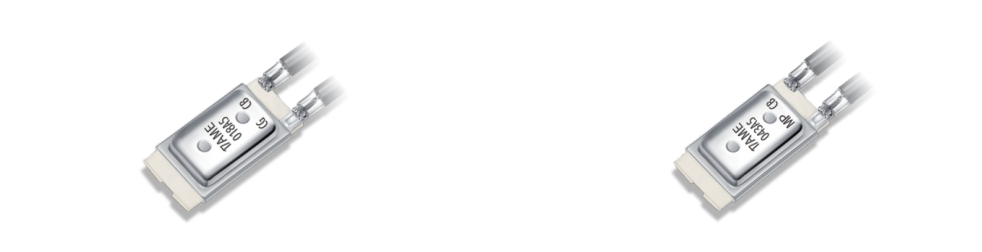

Product Marking
