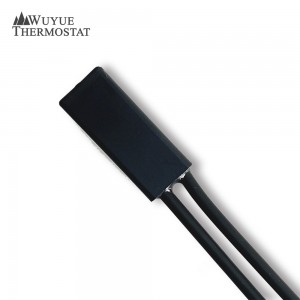

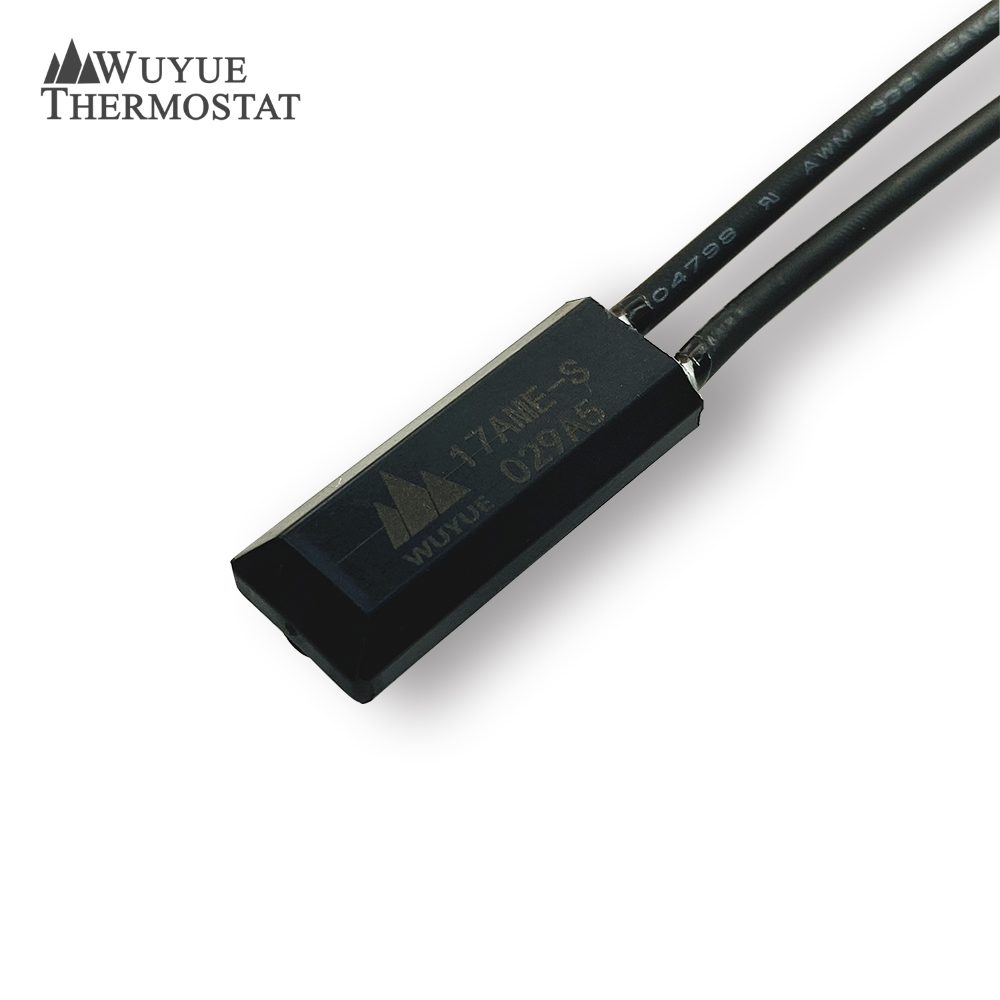

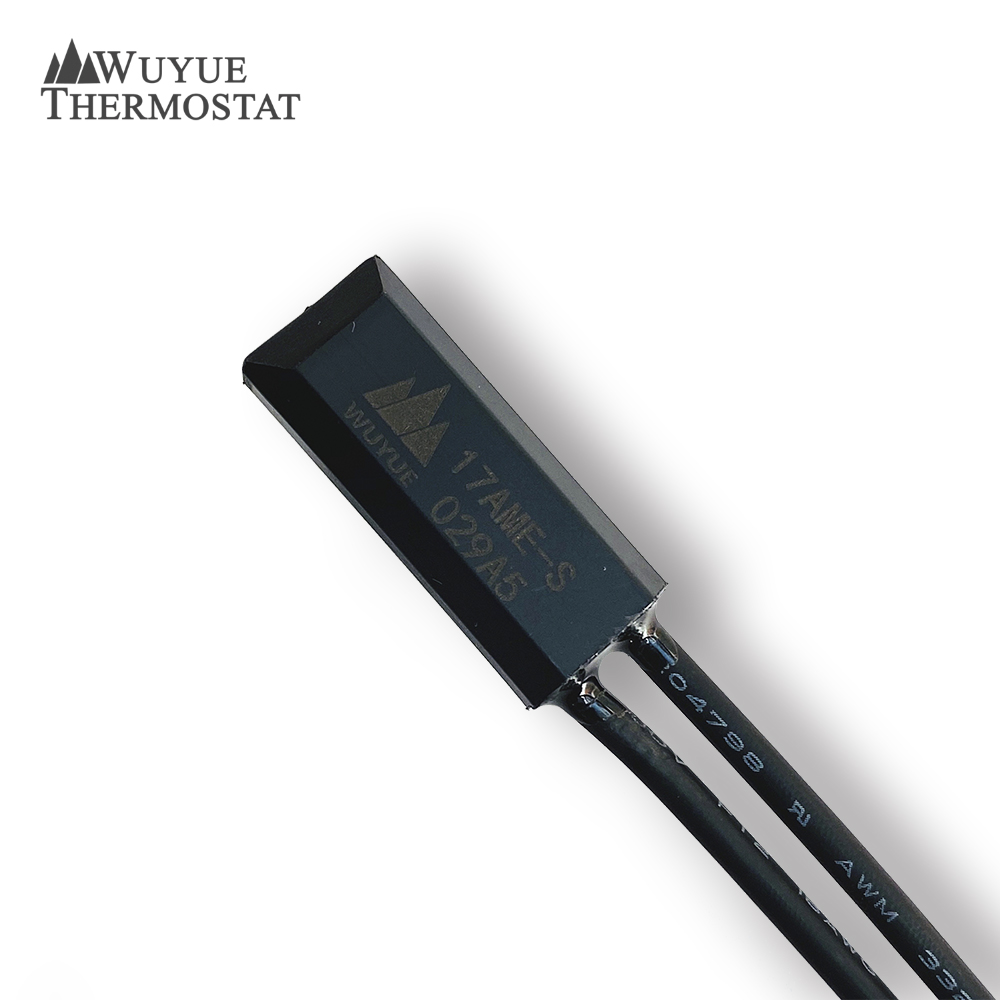

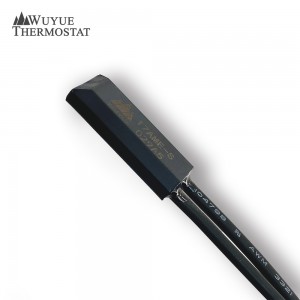

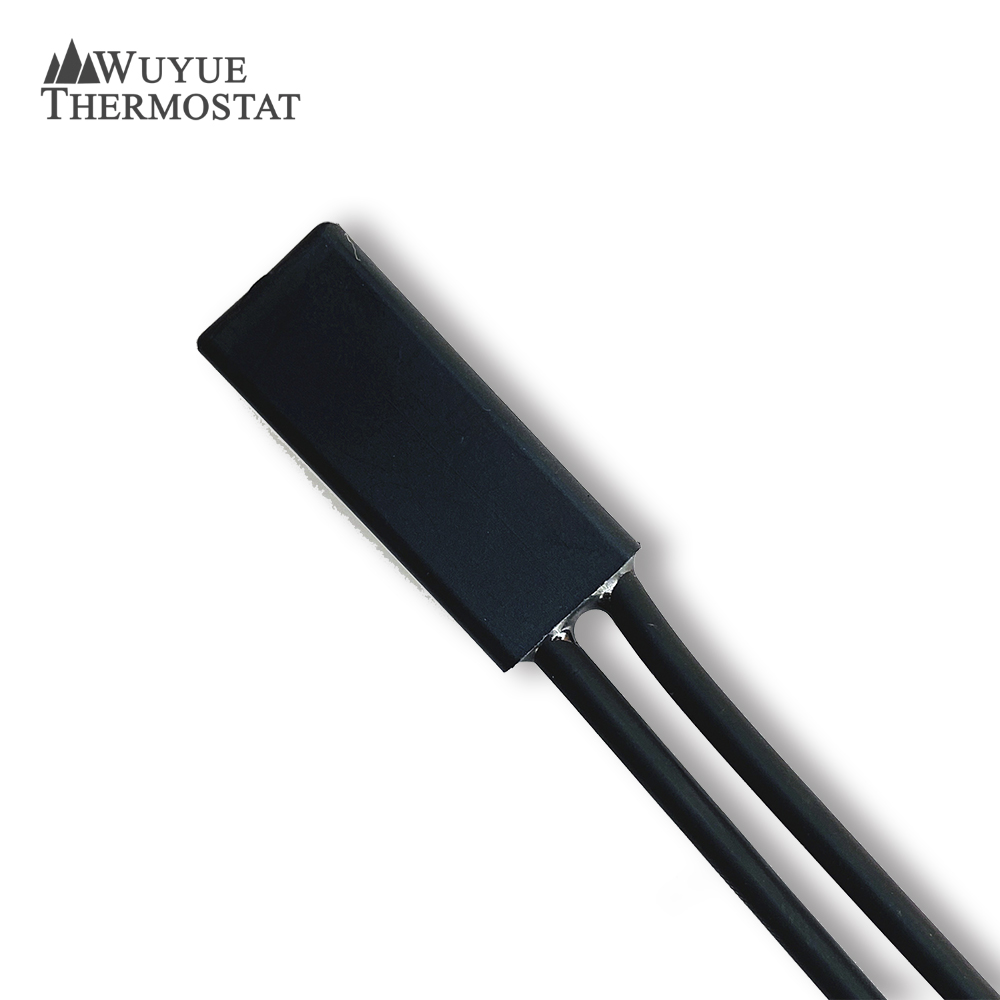

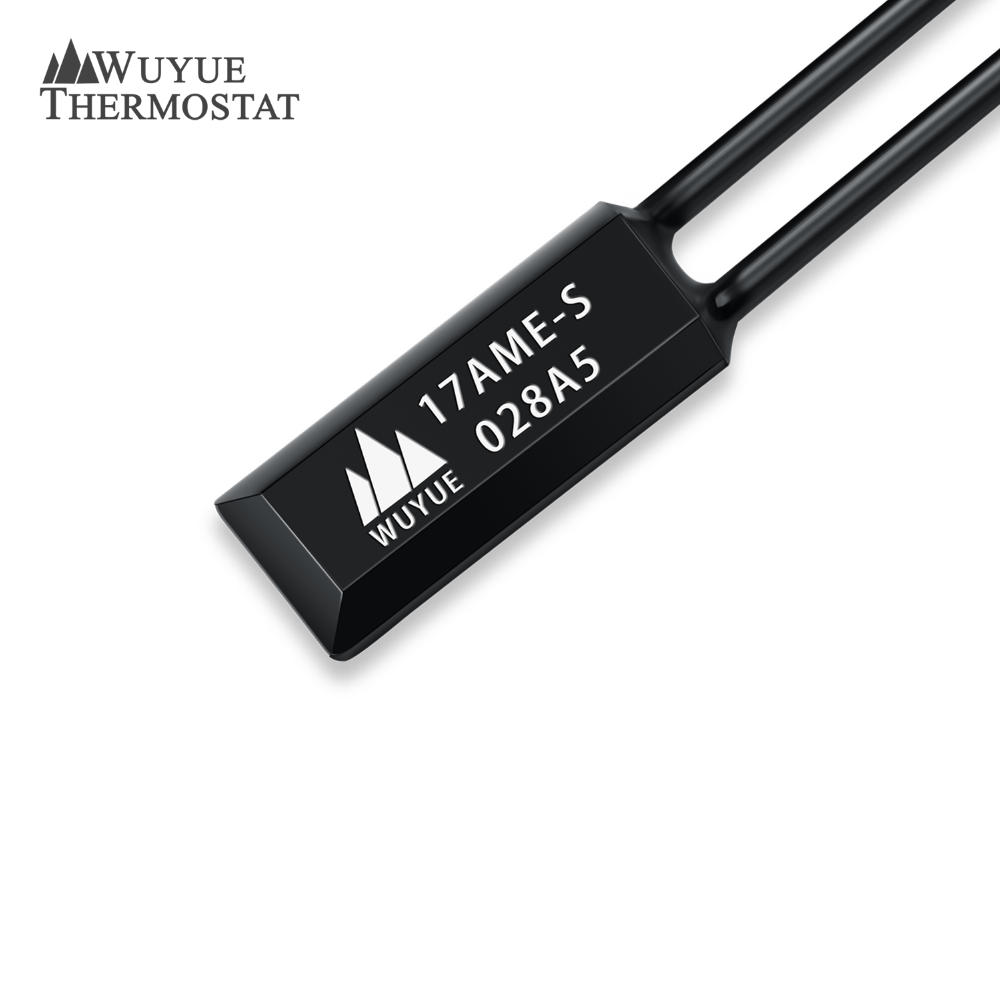

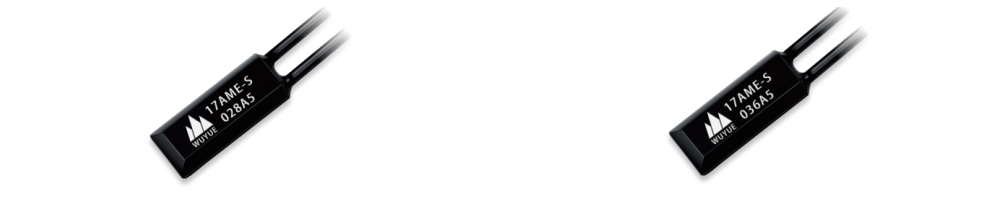

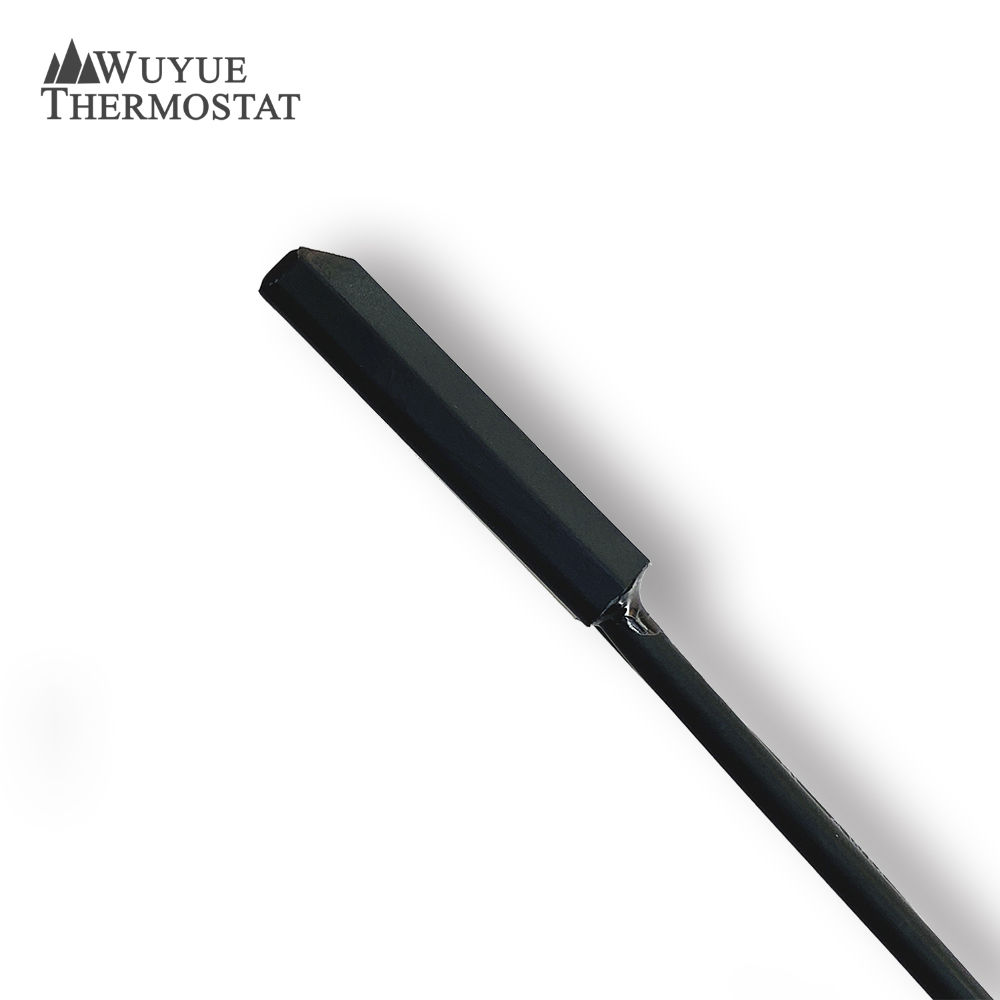

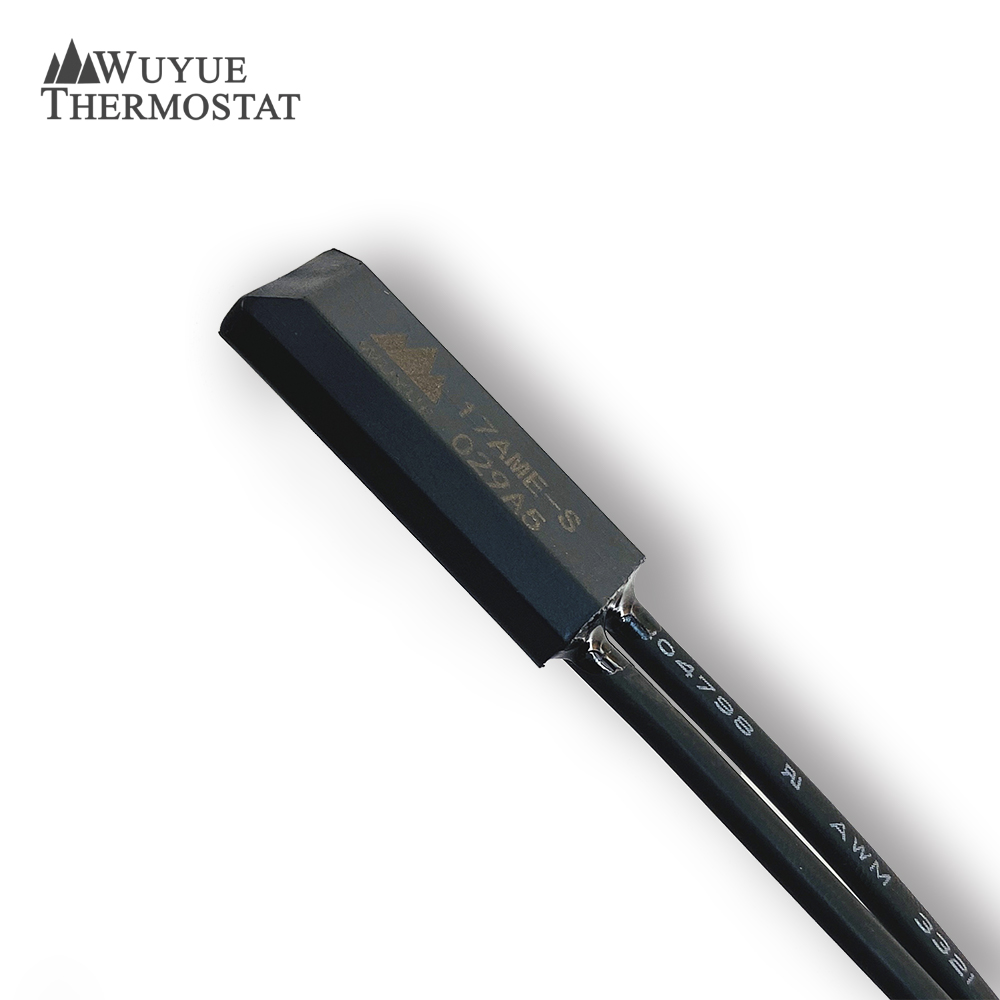

17AME-S Thermal protector with sealed case

Short Description:

17AME-S series is a complete 17AME with a plastic housing and sealed by epoxy. It has better insulation, sealing and water proof properties. The applications are vacuum varnishing motor, water proof heating pad and blankets.

Send email to us

Product Detail

Special Features

Insulation housing, Safer and more reliable;

Water proof;

Applicable to vacuum varnish;

Applicable to control a single temperature rating, the action temperature is fixed before releasing.

Action Temperature Tolerance

Code	Tolerance
5	±5℃
3	±3℃

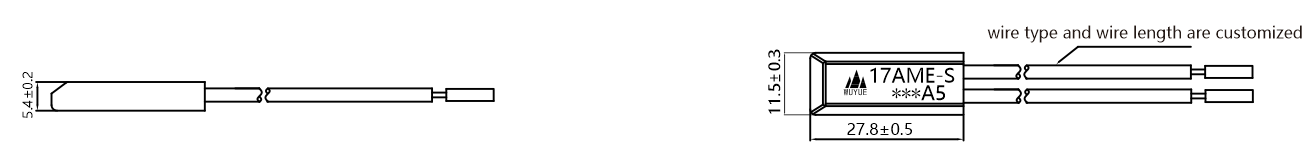

Terminal Direction

Code	Terminal Direction
A	Terminals at the same end
B	Terminals at the opposite end

Temperature Code

No.	Off Temperature (℃)	On Temperature(℃)
018	55	38
019	60	40
020	65	45
021	70	50
022	75	55
023	80	57
024	85	60
025	90	62
026	95	65
027	100	67
028	105	70
029	110	72
030	115	75
031	120	78
032	125	82
033	130	85
034	135	90
035	140	93
036	145	95
037	150	100
038	155	102
039	160	105
040	165	110
041	170	115
042	175	118
043	180	120
